260/275nm Ultraviolet Rays 60led UVC led strips
Features:
– UVC Flex led strips Light with high quality
– 3-5mW/LED SMD3030 LED diodes.
– With 260-280nm sterlization UVC (Ultraviolet) wavelength for special application.
– Wide size of 10mm width 3oz PCB.
– Accept DC12V saftey operate voltage.
– Max. 14.4W per meter.
– High quality product with 2 years quality guarantee.
Specifications:
| Item | 260nm/275nm Ultraviolet Rays Sterilization and Disinfection UVC Flex led strips |
| LED Source | SMD3030, 60led/m, one LED one cut, 3-5mW/led |
| Wavelength | 260nm to 275nm UVC, for sterilization and disinfection. |
| Voltage & Power | DC 12V, 14.4w/m |
| Beam Angle | 120° |
| PCB | 10mm width, white color, 3oz copper |
| Operating Temperature | -20℃ to 50℃ |
| Waterproof | IP20 |
| Packing | 5meter/roll |

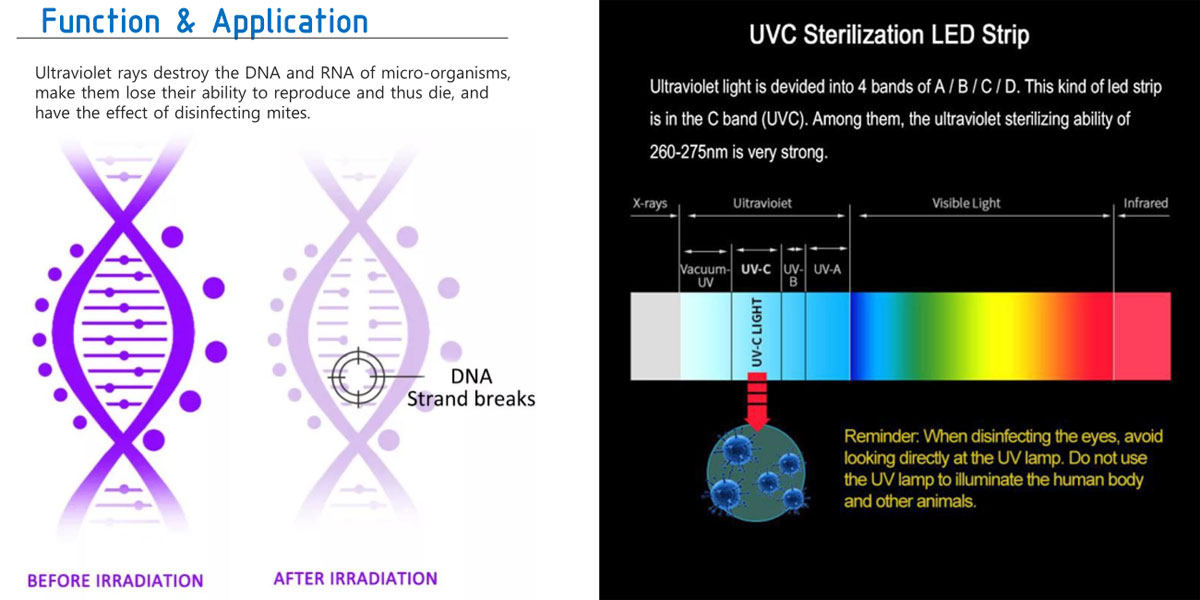

About UVC:
Short-wave UVC, with a wavelength between 200 and 275 nm, is also called short-wave sterilized ultraviolet. Its penetration ability is weak, unable to penetrate the most transparent glass and plastic. The short-wave ultraviolet rays contained in sunlight are almost completely absorbed by the ozone layer and absorbed by the ozone layer before reaching the ground.
Application of the UVC strip lights:
– Antibacterial Project
– Medical Treatment
– Wateproof Purification
– Air Purification
– Disinfect Water
– Kill virus and bacterias
– Destroy harmful micro-organism
– Surface Sterlization
Warnings and Handling Instrutions:
UVC-LEDs is a invisible ultraviolet radiation when in operation, which may be harmful to eyes or skin, even for short periods. DO NOT look directly into the UV-LED during operation. Be sure that you and all persons in the vicinity wear adequate ” UVC ” Safety protection for eyes and skin. If you incorporate a UVC-LED into a product, be sure to provide WARNING labels.

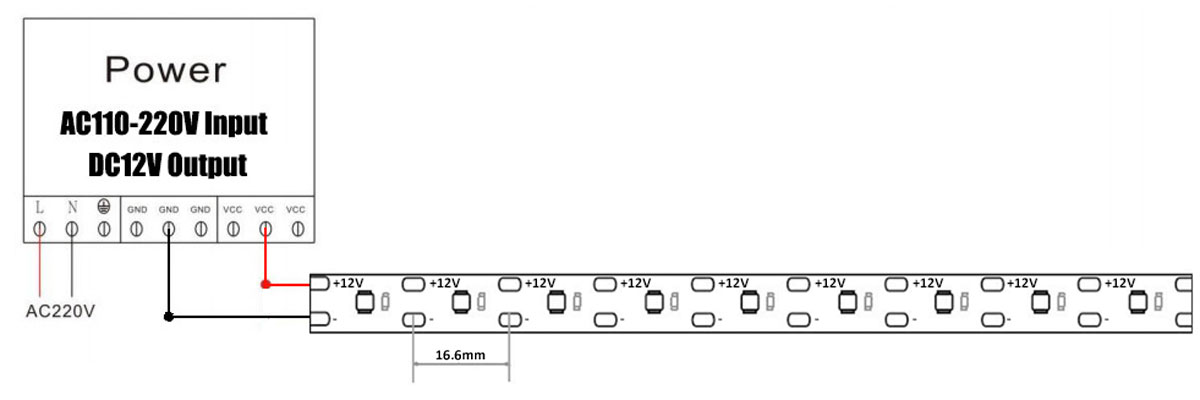

Wiring diagram:
