200lm/w High light efficiency 128led/m SMD2835 Flex LED Strip Lights

Focus keyphrase: 200lm/w High light efficiency

200lm/w LED Strip

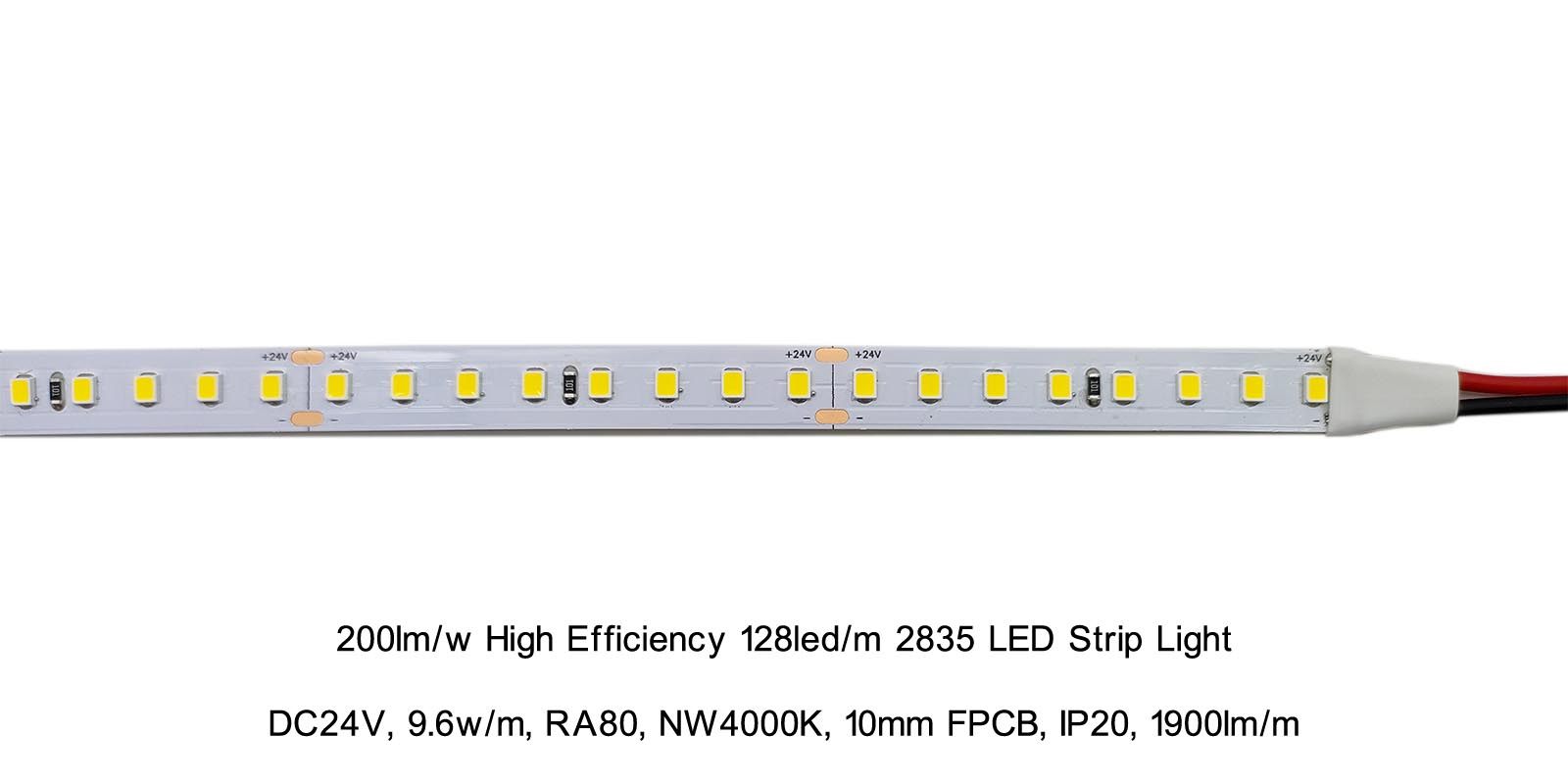

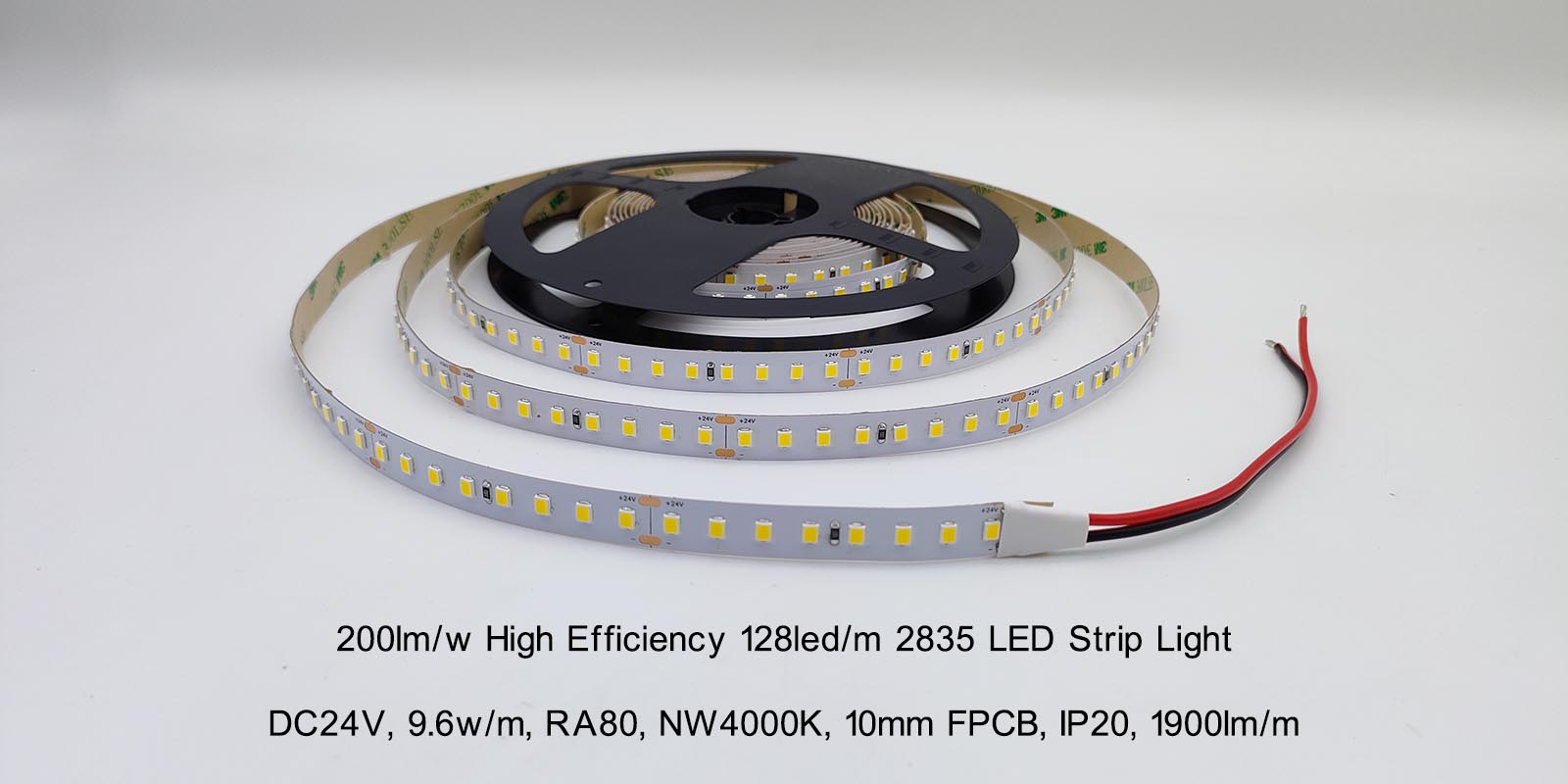

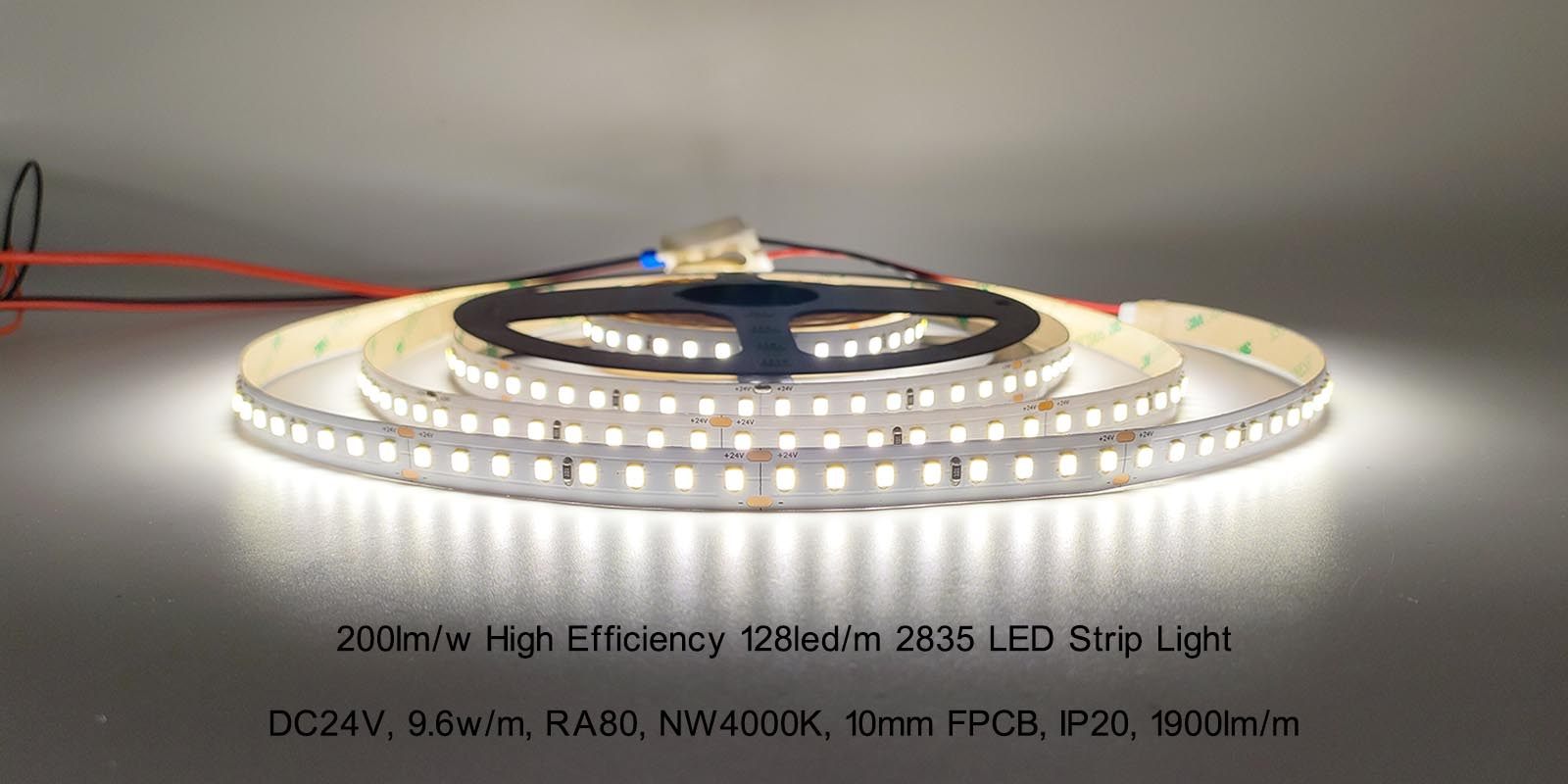

200lm/w High light efficiency 128led/m SMD2835 Flex LED Strip Lights

1 LED 1 Cut Flex LED strips:

  Product:   200lm/w High light efficiency 128led/m SMD2835 Flex LED Strip Lights
  Item No.:   ADY-2835-128-1024HE
  LED:   128 x SMD2835, RA>80, RA>90, 2700k-6500k
  View angle:   120°
  Cut length:   2OZ Thickness 10mm width FPCB, the Min. cut length is 62.5mm
  Input voltage:   DC24V
  Power:   9.6w/m
  Size:   5000x10x1.5(mm), 5m/roll

Features:

1) High CRI up to 98, 8led/cut, 100% Brand New.
2) High light efficiency of 160lm/w, 170lm/w, 180lm/w, 190lm/w, 200lm/w,  (High-efficiency version).
3) High output up to 3000 lm/m (CRI80+ version).
4) Available in 5V, 12V and 24V.
5) Fully dimmable.
6) The width of FPCB is available in 3mm, 5mm, 8mm, 10mm, and the other width.
7) 50,000-hour lifespan (8 hours/day for 17 years);
8) 3-year warranty.

Spectrum Test Reports of ADY-2835-128-1024HE LED strips:

Spectrum Test Report

Photos show:

3000K, 4000K and 6000K
8LED/unit, 62.5mm/cut.

Warm white, natual white and cold white
Warm white, natural white, and cold white

170lm/w, RA90
170lm/w, RA>90

normal color temperature for optional
Normal color temperature for optional: 2700K, 3000K, 3500K, 4000K, 5000K, 6500K,

You are free to order the following SMD 2835 Flex led strips:

SN Model Number LED Qty Voltage Power Color PCB Lumen Min. Cut
1  ADY-C120-0824-9827 120 led/m DC 24V 12 w/m 2700K 8mm 1000 lm/m 50mm
2  ADY-C120-0824-9830 120 led/m DC 24V 12 w/m 3000K 8mm 1000 lm/m 50mm
3  ADY-C120-0824-9835 120 led/m DC 24V 12 w/m 3500K 8mm 1000 lm/m 50mm
4  ADY-C120-0824-9840 120 led/m DC 24V 12 w/m 4000K 8mm 1000 lm/m 50mm
5 ADY-C120-0824-9850 120 led/m DC 24V 12 w/m 5000K 8mm 1000 lm/m 50mm
6  ADY-C120-0824-9865 120 led/m DC 24V 12 w/m 6500K 8mm 1000 lm/m 50mm

LED strip Lights Full-spectrum with CRI> 97+ for indoor & outdoor linear lighting solutions.

Get in touch with us now

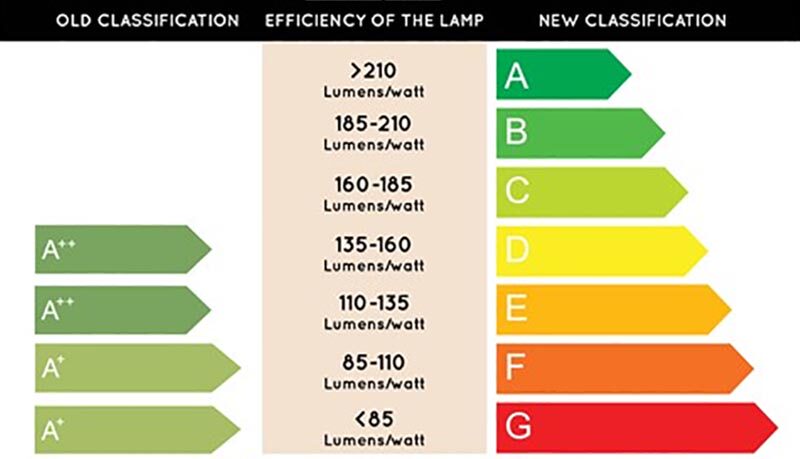

About High light-efficiency:

Light efficiency is calculated by dividing the number of lumens of a light source by the total watts. A higher figure for the lumens per watt (lm/w) implies more efficiency, while a lower one means low efficiency.

Luminaires in any of the following categories are automatically classified as high efficacy: Pin-based linear fluorescent luminaires using electronic ballasts. Pin-based compact fluorescent luminaires using electronic ballasts. Pulse-start metal halide luminaires.

How is lighting efficiency measured?

Luminous efficacy refers to how well a light source produces visible light. A ‘lumen’ is the total amount of light emitted by a light source, and we measure the efficacy of light sources in terms of luminous output per watt, and wattage per square meter. This is also known as Illumination Power Density (IPD).

What is the typical efficiency of an LED?

While the energy conversion efficiency of incandescent lamps is between 10 and 20 percent, highly efficient LEDs currently achieve values between 40 and 50 percent. Nevertheless, 50 to 60 percent of the power is lost as heat.

What is a good lumens per watt?

LED technology typically produces 75-110 lumens/watt depending on the bulb and the manufacturer. So, LEDs are generally about 7 times more efficient at producing light than incandescent bulbs. Use a 7:1 ratio as a rough guide when selecting an LED bulb to replace an incandescent bulb.
