3020 Size Silicone Neon Tube 12V 96Pixels WS2815 LED Light

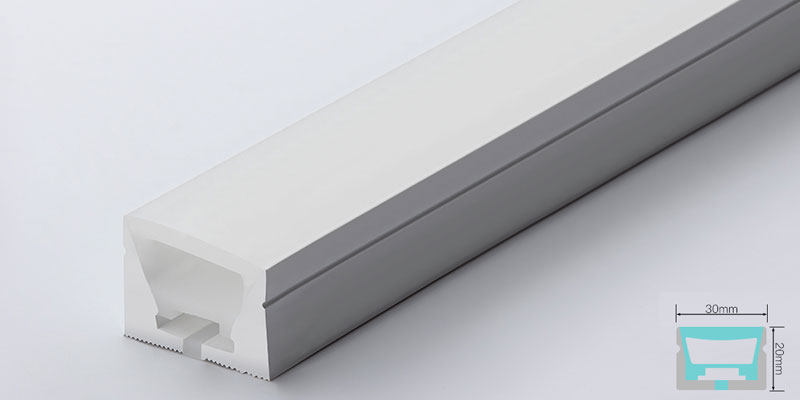

IP67 Silicone Tube Neon LED Light | Addresable WS2815 | 96Pixel/m | 3020 Size


IP67 Waterproof 3020 Size WS2815 Neon LED Lights, with WS2815 Pixels LED Strip inside, no light spots visiable, WS2815-5050-RGB, 96led/m, individual addressable, 96pixels/m, breakpoint continure, DC12V, 19.2w/m, 10mm PCB, 5m/roll.

Recommend Optional of the inside led strips:
1) WS2812B Flex led strips, 60led/m, individual addressable, 60pixels/m, 5V, 18w/m, 10mm PCB, 5m/roll
2) WS2811 Flex Digital led strips, 60led/m, addressable, 20pixels/m, 12V, 14.4w/m, 10mm PCB, 5m/roll
3) SMD5050 Flex Digital led strips, 60led/m, 1800K-6500K, 12V/24V, 14.4w/m, 10mm PCB, 5m/roll
4) RGB / RGBW Flex led strips, 60led/m, 12V/24V, 19.2w/m, 10mm PCB, 5m/roll
5) SMD2835 High Efficiency Flex Digital led strips, 120led/m, 1800K-6500K, 12V/24V, 24w/m, 10mm PCB, 5m/roll
6) DMX512 Flex Digital led strips, UCS512B3, SMD5050-RGB, 60led/m, addressable, 20pixels/m, 12V, 14.4w/m, 10mm PCB, 5m/roll

Data sheet:

  Product:   T3020 Addressable NEON LED Light
  Item No.:    ADY-T3020-2815-9612
  LED:    WS2815-5050-RGB, 96led/m, 12V, 19.2w/m, 96 Pixels/m
  View angle:   120°
  IC Chip:   WS2815
  Input voltage:   DC 12V
  Power:   19.2w/m
  Size:   5000x30x20 (mm), 5m/roll


1). Safe Voltage: LED uses low-voltage power supply, power supply voltage is between 4-25V, according to different products, so it is a safer power supply than using high-voltage power supply, especially for public places.
2). Efficiency: Energy consumption is 80% less than that of incandescent lamps with the same light efficiency.
3). Applicability: Many size for optional, Flexible, so it can be prepared into various shapes of devices, and suitable for variable environment.
4). Stability: 100,000 hours, optical decay of 50% of the initial.
5). Response time: The response time of incandescent lamp is millisecond, and that of LED lamp is nanosecond.
6). Environmental pollution: no harmful metal mercury.
7). You can get any color which you like.


> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting


1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
