300LED SMD5050 RGB 3in1 Flexible LED Strip
Overview:
The SMD5050 RGB Flexible LED Strip features high-brightness 5050 SMD LEDs (5.0mm x 5.0mm) with integrated red, green, and blue chips. Designed for versatility, these strips are ideal for decorative, accent, and task lighting in residential, commercial, and automotive applications. The flexible PCB allows installation on curved surfaces, and the strip can be cut to custom lengths.
Data sheet:
| Product: | 60LED/m SMD5050 RGB 3in1 Flexible LED Strip |
| Item No.: | ADY-5050-60F3-1012 / ADY-5050-60F3-1024 |
| LED: | SMD5050-RGB, 60led/m, RGB 3 Colours in one LED |
| View angle: | 120° |
| Waterproof Grade: | IP20 / IP65 with Silicone gel coating |
| Input voltage: | 12V / 24V |
| Power: | 14.4w/m |
| Size: | 5000x10x2.0(mm), 5m/roll |
Features
- RGB Color Mixing: Full-color control with 16 million color combinations.
- High Brightness: Up to 18–22 lumens per LED.
- Flexible Design: Bendable up to 90° for curved installations.
- Waterproof Options: Available in IP20 (non-waterproof), IP65 (silicone-coated), or IP67 (encapsulated).
- Easy Installation: 3M adhesive backing for quick mounting.
- Cuttable: Customizable length with cutting marks every 3–6 LEDs.
Application:
- Home/Office: Accent lighting, under-cabinet, cove lighting.
- Commercial: Signage, retail displays, hospitality decor.
- Automotive: Interior/exterior customization.
- Events: Stage lighting, weddings, parties.
Installation & Usage:
- Power Supply: Use a 12V DC power supply with sufficient current (e.g., 5A for 5m of 30 LEDs/m).
- Controller: Requires an RGB PWM controller for color mixing and dimming.
- Cutting: Cut only at marked points (scissors symbol) to avoid damaging circuits.
- Connectors: Use 4-pin waterproof connectors (for IP65/IP67) or solder directly.
Photos:

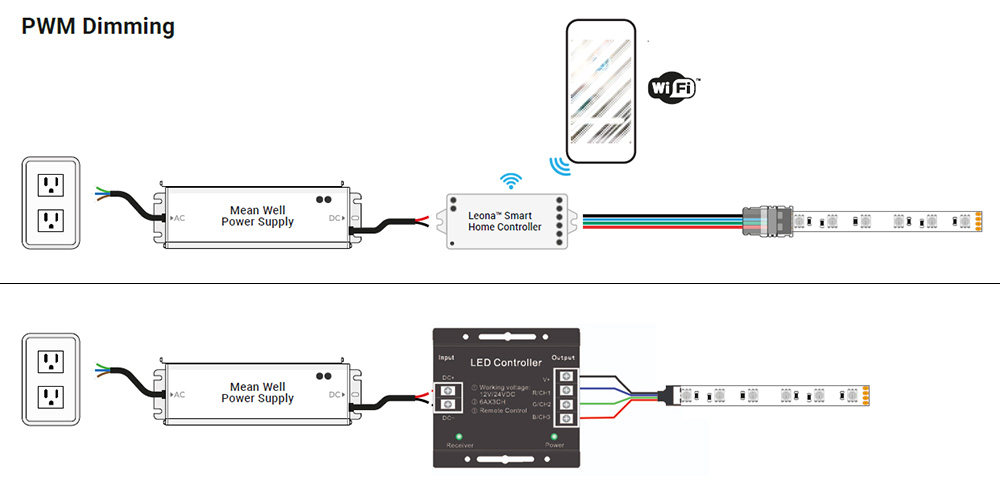

Typical Wiring Diagram:
