3mm Width 5mm Pitch 200Pixels/m Individual Programmable Mini WS2812 Flex Digital LED Tape V2
WS2812-0807-RGB LED is a small-sized digital full-color built-in IC, which has one SPI data line and can be controlled by most SPI LED Controllers.
160LED/m, 160Pixels/m, DC5V or DC12V, 10w/m, 2.7mm width FPCB, IP20, 2m/pcs or according to the contract.
Features:
> 2.7mm width Super Narrow Flexible PCB
> High density, 160led/m, 160pixels/m, individual addressable
> Each LED is cuttable
> DC5V or DC12V, two versions for optional
Specification:
| Product Name: | 2.7mm Width 6.25mm Pitch 160Pixels/m Individual Programmable Mini WS2812-0807-RGB Flex Digital LED Tape V2 |
| Item No.: | ADY-2812-0807-160-0305-V2 / ADY-2812-0807-160-0312-V2 |
| LED Source: | WS2812-SMD0807-RGB, 160led/m, 160pixels/m |
| PCB | 2.7mm white FPCB |
| IC Chip: | WS2812 |
| Pins: | 3 Wires = V+, DATA, GND |
| View angle: | 120° |
| Voltage & Power: | DC 5V, 10w/m / DC12V, 10W/m |
| Size: | 2000×2.7×1.5(mm), 2m/roll or according to your requirements |
| Controller: | SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc… |

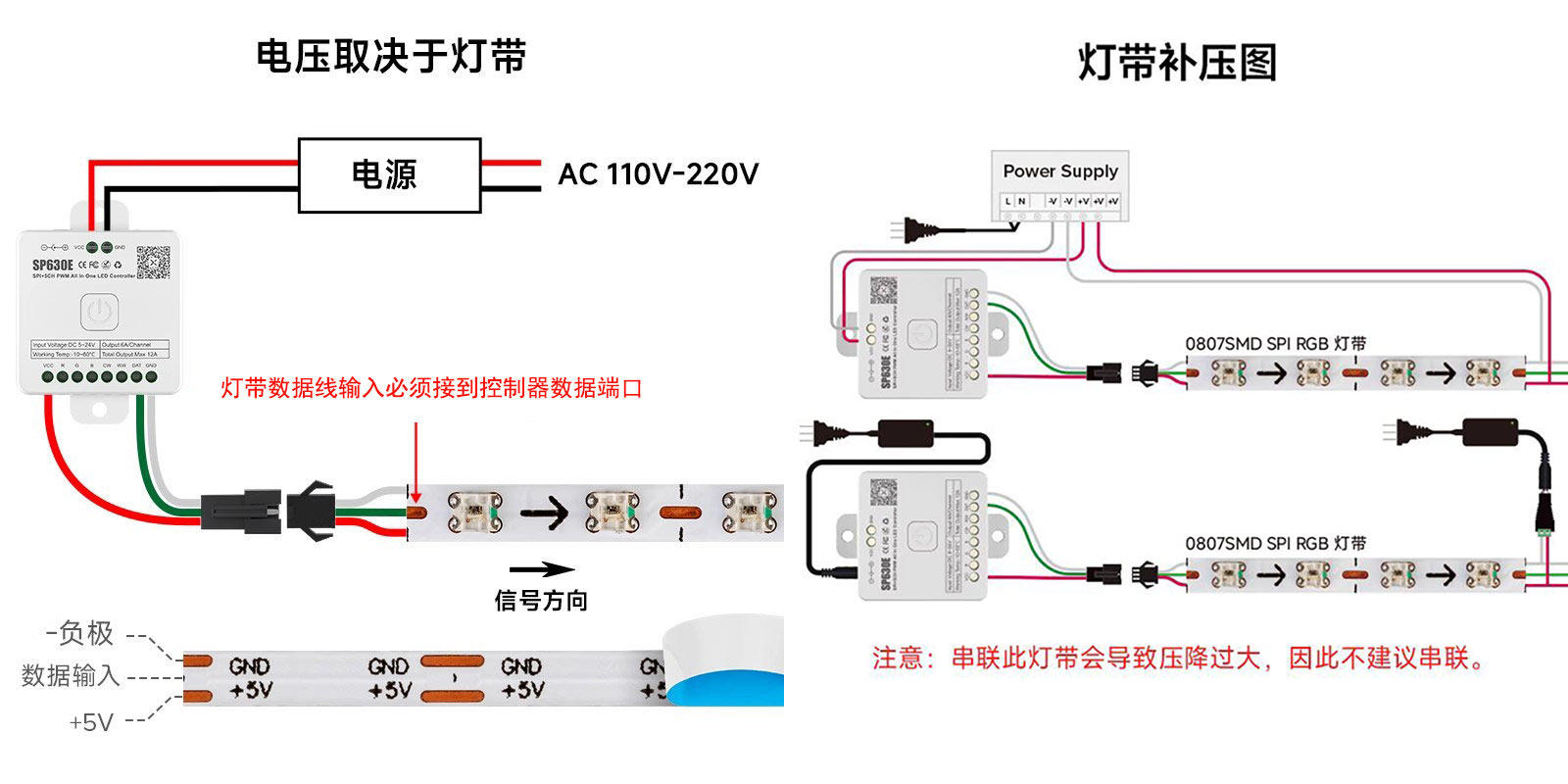

Wiring Diagram:

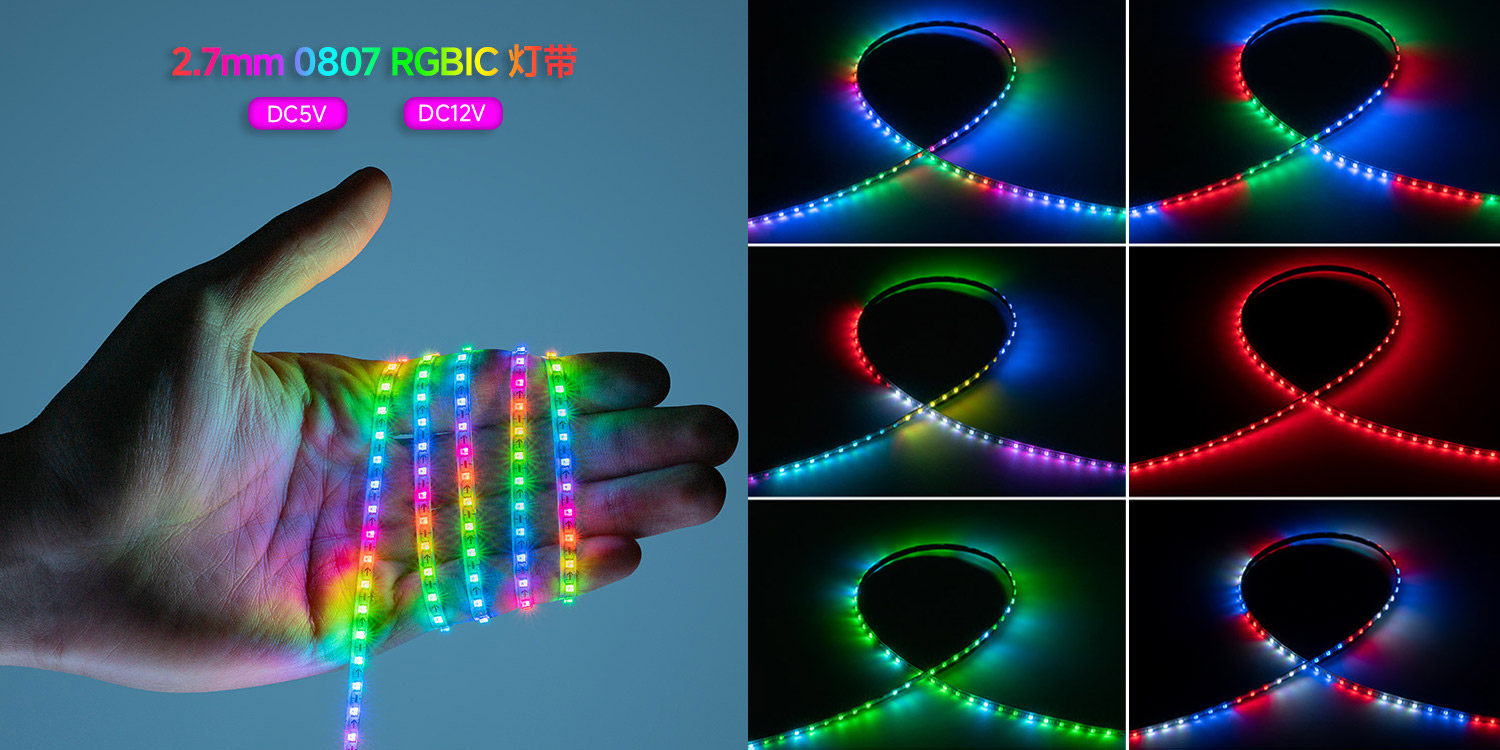

Photos:
