H803TV LED Controller | DVI/HDMI Online Control

H803TV LED Controller
LED HDMI/DVI Online Master Controller H803TV | Support Madrix


LED DVI Controller H803TV – Controller – Accessory

H803TV is an online master controller that transmits data via DVI/HDMI interface and has the features of high speed transmission and large control ability. H803TV can be connected to different computers with different operating systems, and can also be connected to devices with DVI/HDMI interface. It supports dual-monitor mode, multi-monitor extension mode and duplication mode. Using duplication mode when H803TV is connected to computer.

Auxiliary slave controller is H801RA, H801RC, and H802RA.
Auxiliary software is “LED studio software” or “Madrix”.

Supported Driver Chips:

LPD6803, LPD8806, LPD1882, LPD1889, LPD6812, LPD1883,LPD1886, DMX512, HDMX, APA102, MY9221, DZ2809, SM16716,SM16711, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912,WS2801, WS2803, WS2811, INK1003, TM1812, TM1809, TM1804,TM1803, TM1913, TM1914, TM1926, TM1829, TM190, TM1814,BS0901,BS0815, LY6620, BS0825, LD1510, LD1512,LD1530, LD1532, TLS3001, TLS3002, DM412, DM413, DM114,DM115, DM13C, DM134, DM135, DM136, MBI6023, MBI6024,MBI5001, MBI5168, TB62726, TB62706,A8012, etc.

high compatibility configure freely
High compatibility configure freely

Features and Description:

(1) H803TV is an online master controller that transmits data over DVI/HDMI interface.
(2) Four network interfaces drive maximum 400000 pixels.
(3) It supports dual-monitor mode, multi-monitor extension mode and duplication mode.
(4) Support the following resolutions: 1024×768, 1280×720, 1280×960, 1280×1024, 1360×765, 1360×1020, 1600×900, 1600×1200.
(5) Use the autorun USB to transmit and control data, which is applied to both 32-bit and 64-bit operating systems.

Data sheet:

  Product:   H803TV LED DVI Controller
  Model No.:   H803TV
  Controllable:   Can drive 400000 Pixels with 4 networt ports (100000Pixels/port), 1020 slave controllers;
  Input Volage:    DC9V
  Consumption:   5W
  Net weight:   0.8kg/pcs
  Dimension:   183 x 139 x 40(mm)
  Supported driver chips:    Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more

Photos show:

Package Include
Package Include 1 pcs controller, 1 pcs USB cable, 1 pcs DVI cable, 1 pcs adaptor

LED HDMI/DVI Online Master Controller H803TV | Support Madrix

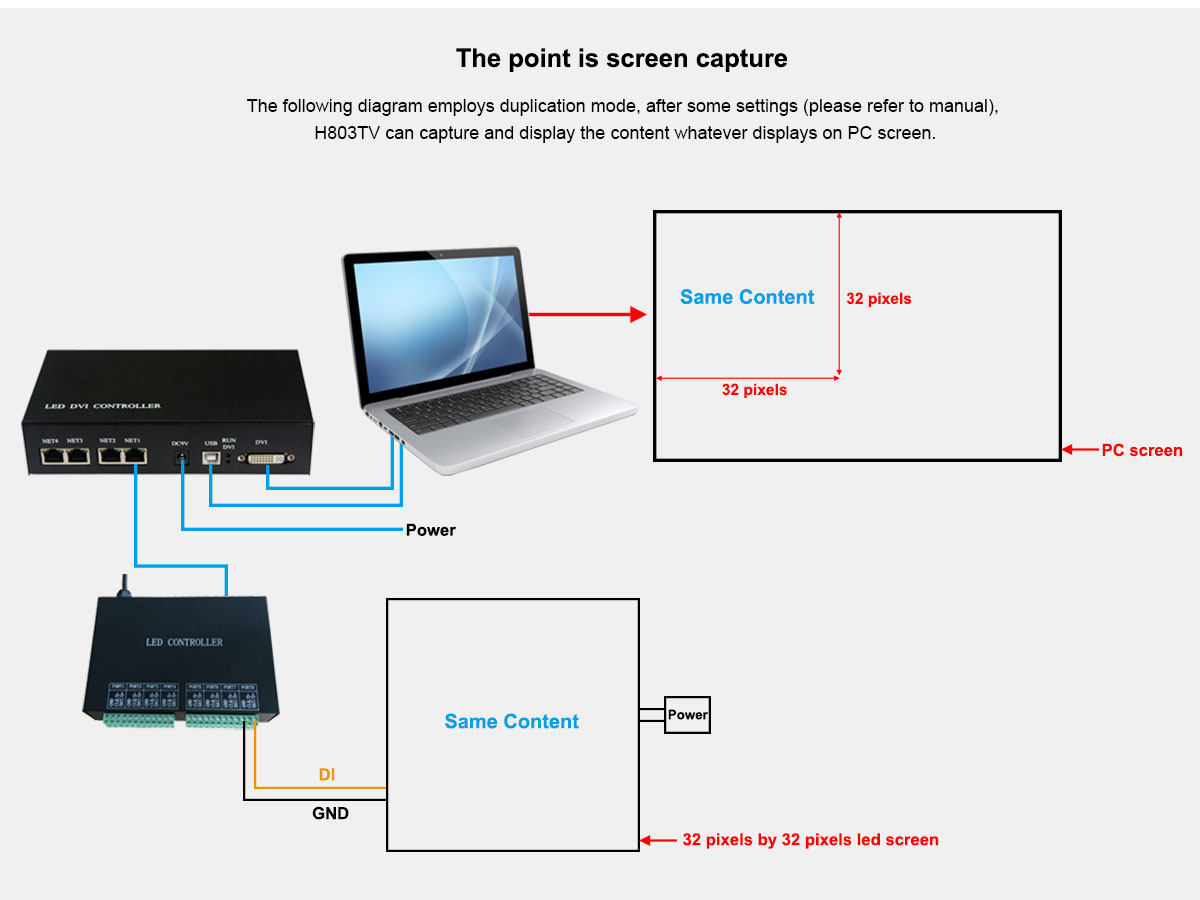

Screen capture
H803TV can drive Max. 1020 slave controllers | Screen capture

LED HDMI/DVI Online Master Controller H803TV | Working with Madrix
