Free Cut 1400lm High Brightness 8mm Width DC24V 528led/m COB Flexible LED strips

COB Flexible led strip

Overview:

Free Cut 1400lm High Brightness 8mm Width DC24V 528led/m COB Flexible LED strips, 528led/m, RA90, 3000K/4000K/6000K, DC24V, 14w/m, 1400lm/m, 8mm width white PCB, 2-Pin ordinary or waterproof connect wire output; high color efficiency, uniform illumination, can be bent freely, not easy to be broke and not affect the current.

The Key feature is the cut length, free cut, 1 led/cut, good for some special applications.

Fast lead time: 48 hours for order quantity < 1000 meters

Datasheet:

  Product:   Free Cut 1400lm High Brightness 8mm Width DC24V 528led/m COB Flexible LED strips
  Item No.:   ADY-COB-528-0824-CF
  LED:   COB LED, 528LEDs/m, RA90, 2700K, 3000K, 4000K, 6000K
  View angle:   180°
  IC Chip:   N/A
  Input voltage:   24V
  Power:   14w/m
  Size:   5000x8x1.6(mm)

Features

1) High brightness, low light decay. lifespan>50,000 hours, 3-year warranty;
2) Pure color, CCT available 2000-7000k. DC12V/24V, safe & low power consumption;
3) No light dot or spot; soft light, Arbitrarily bending, smaller bendable angle;
4) 180° view angle;
5) Easy to connect & install Free cuttable soft FPC;
6) Dustproof and water-resistant IP65; Flexible ribbon for curving around bends;
7) Solid-state, high shock vibration resistant;
8) Excellent heat dissipation, better than the SMD2110/2216/2835 led strips.

Wiring Diagram & Size:

Size
Wiring diagram

Application:

  • 1) Architectural decoration Lighting; Backing lighting for signage letters;
  • 2) Decoration lighting for under water project; Archway /Canopy & Bridge Edge Lighting;
  • 3) Auditorium walkway lighting, Amusement park / Theater lighting;
  • 4) Stairway Accent Lighting, Channel letters lighting;
  • 5) Furniture Decoration Lighting; Cove Lighting etc;

 Order info: (Color: White or R/G/B/Y)

 SN  Model Number LED PCB Width Voltage Power Waterproof
1   ADY-COB-400-0812 400led/m 5mm 12V 6w/m IP20/IP65/IP67
2   ADY-COB-400-0824 400led/m 5mm 24V 6w/m IP20/IP65/IP67
3   ADY-COB-480-0824-C12 480led/m 8mm 24V 10w/m IP20/IP65/IP67
4   ADY-COB-528-0824-CF 528led/m 8mm 24V 14w/m IP20/IP65/IP67

Photos

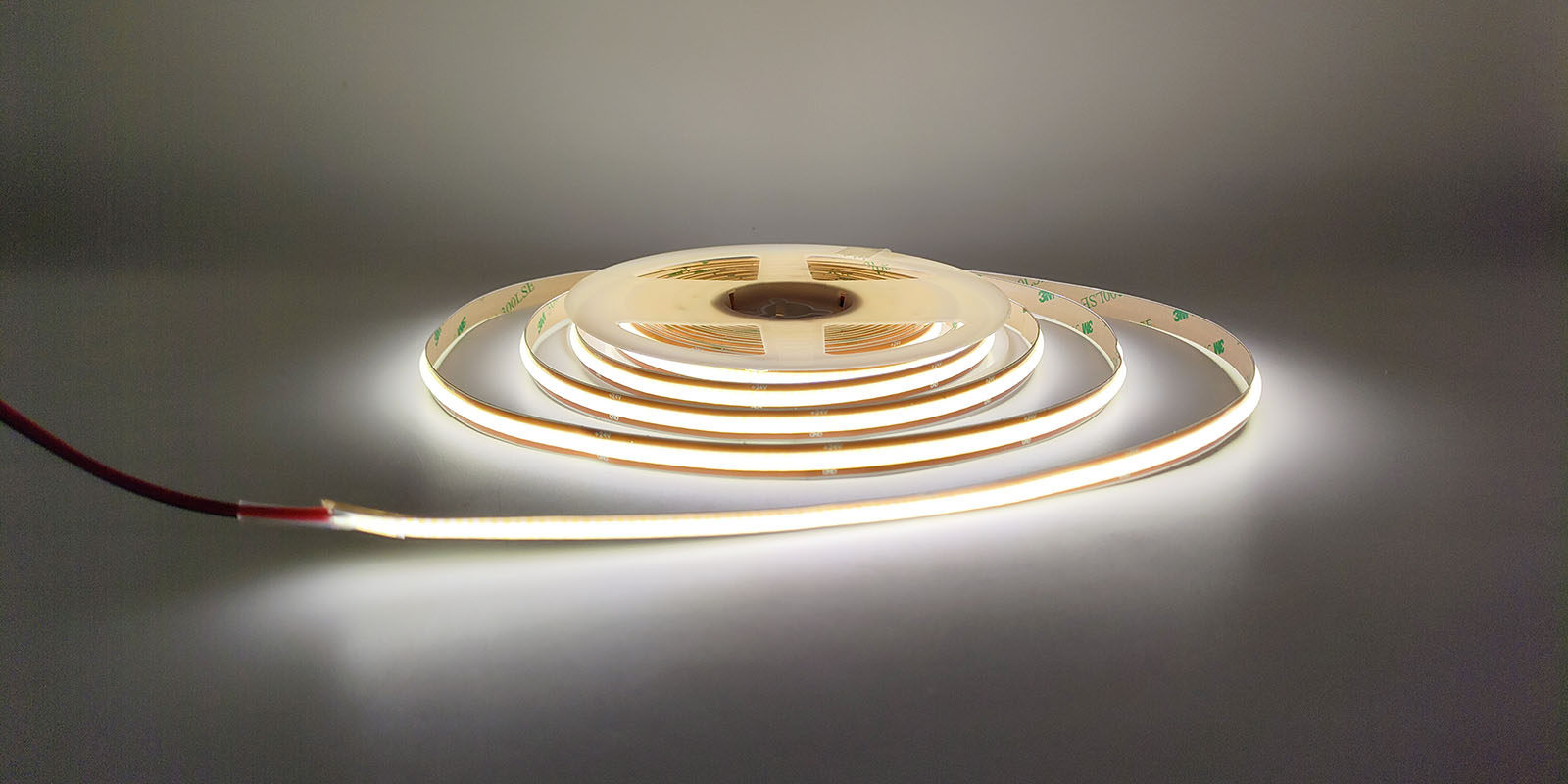

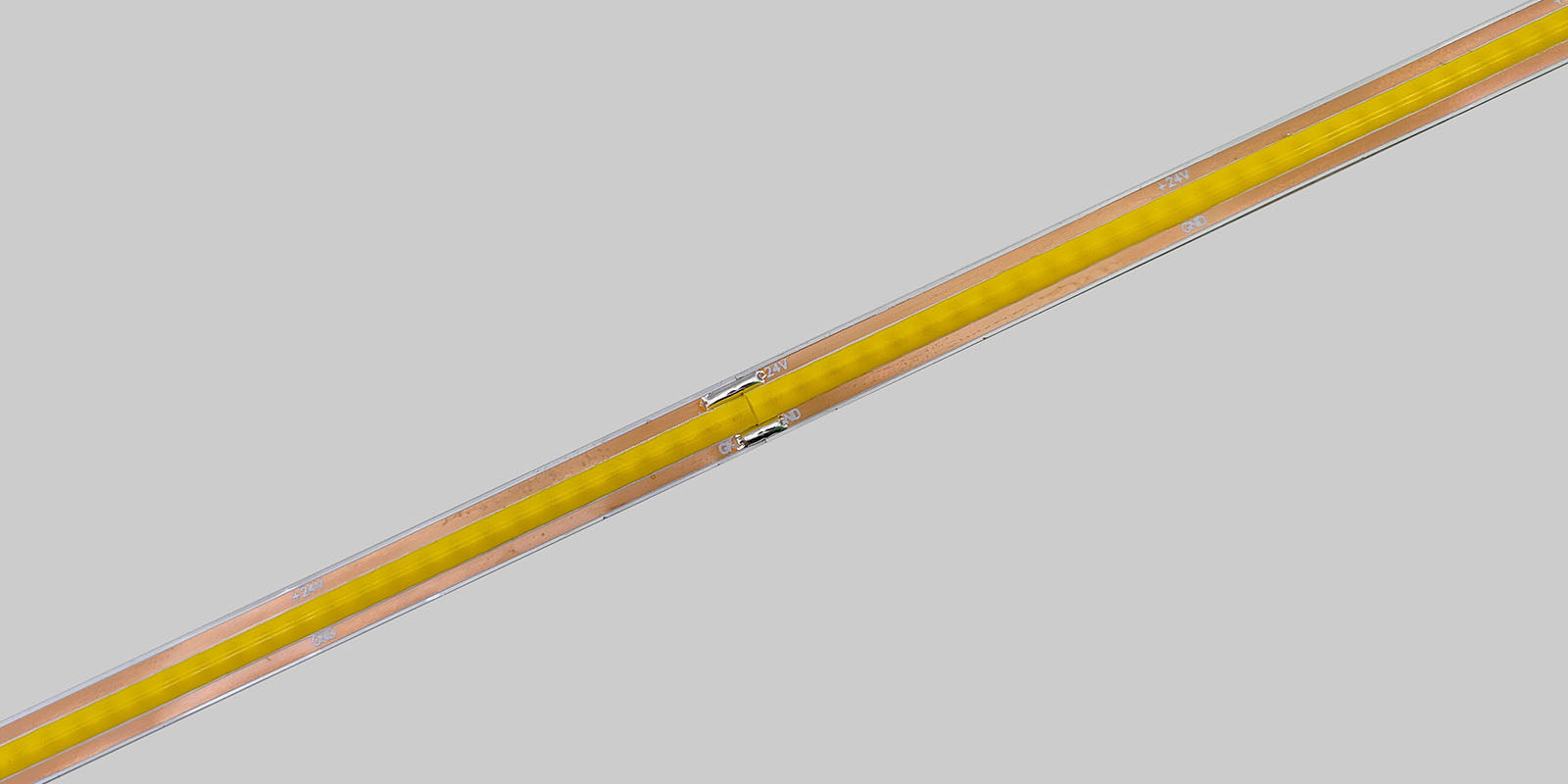

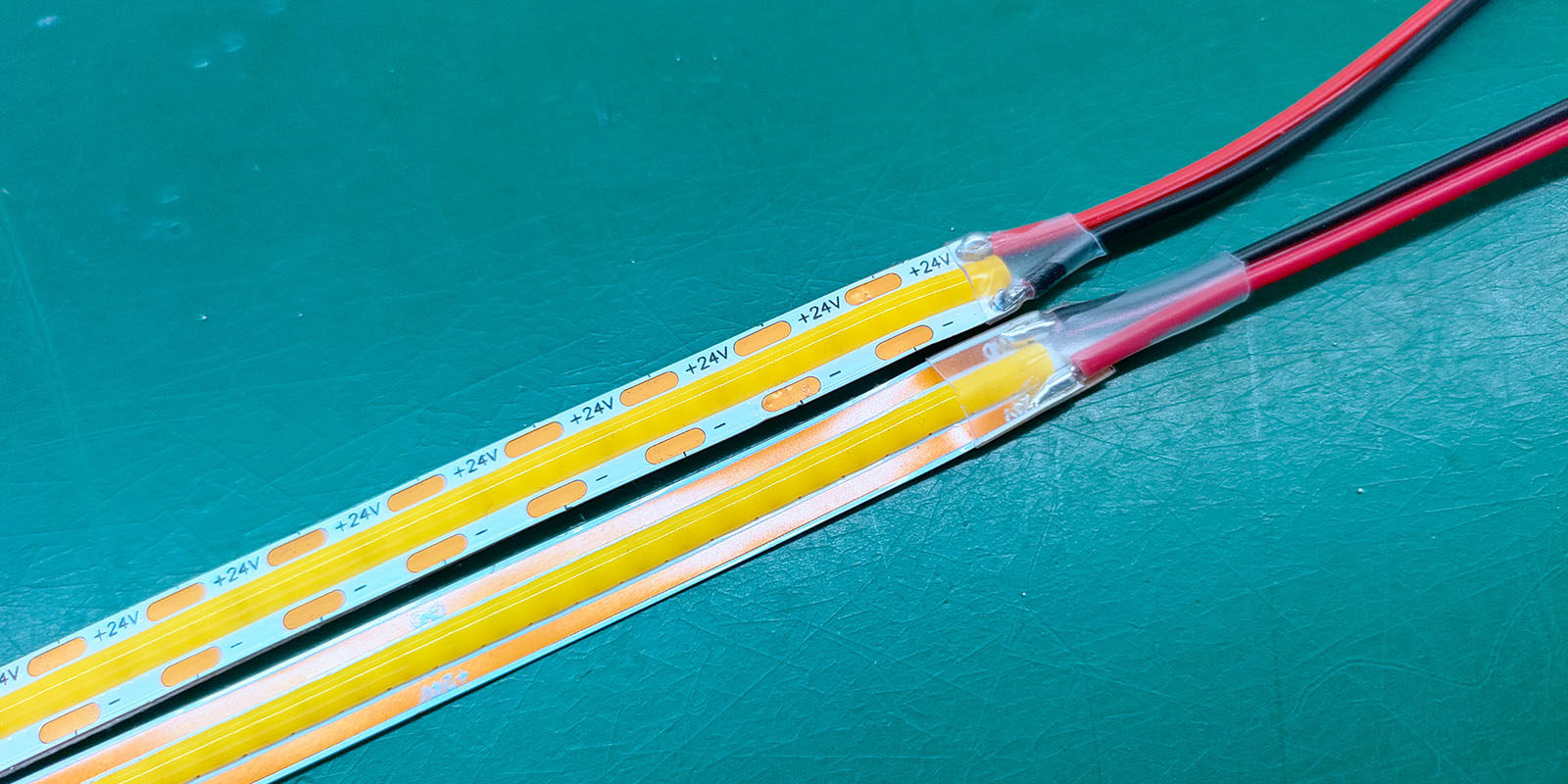

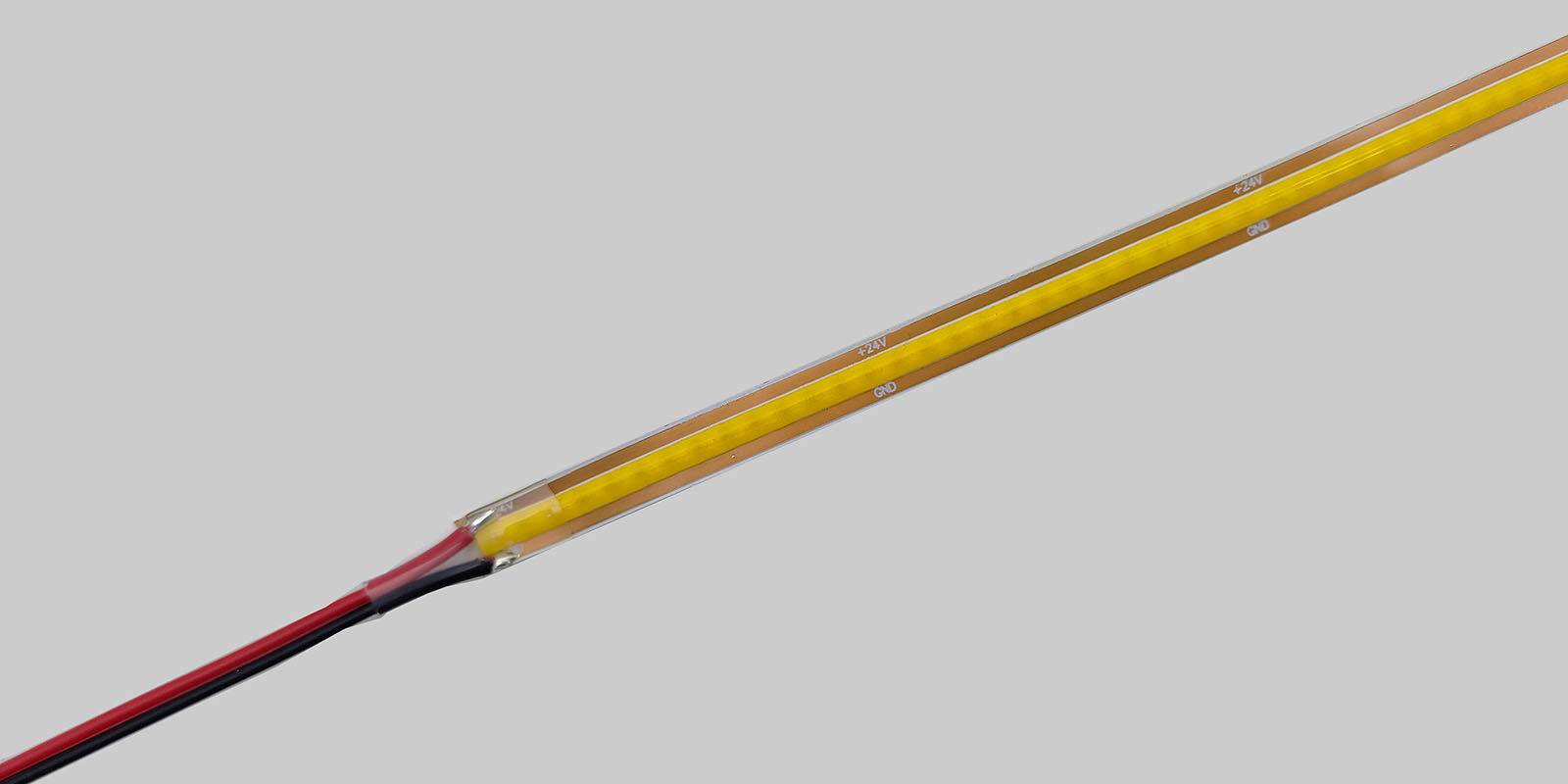

COB Flexible led strip
COB Flexible led strip
COB Flexible led strip
COB Flexible led strip

Free samples are available on request
