1.25cm/Cut 8mm Width DC24V 480led/m COB Flexible LED strips

Overview:
1.25cm/Cut 8mm Width DC24V 480led/m COB Flexible LED strips, 480led/m, RA90, 3000K/4000K/6000K, DC12V/DC24V, 6-10w/m, 8mm width white PCB, 2-Pin ordinary or waterproof connect wire output; high color efficiency, uniform illumination, can be bent freely, not easy to be broke and not affect the current.

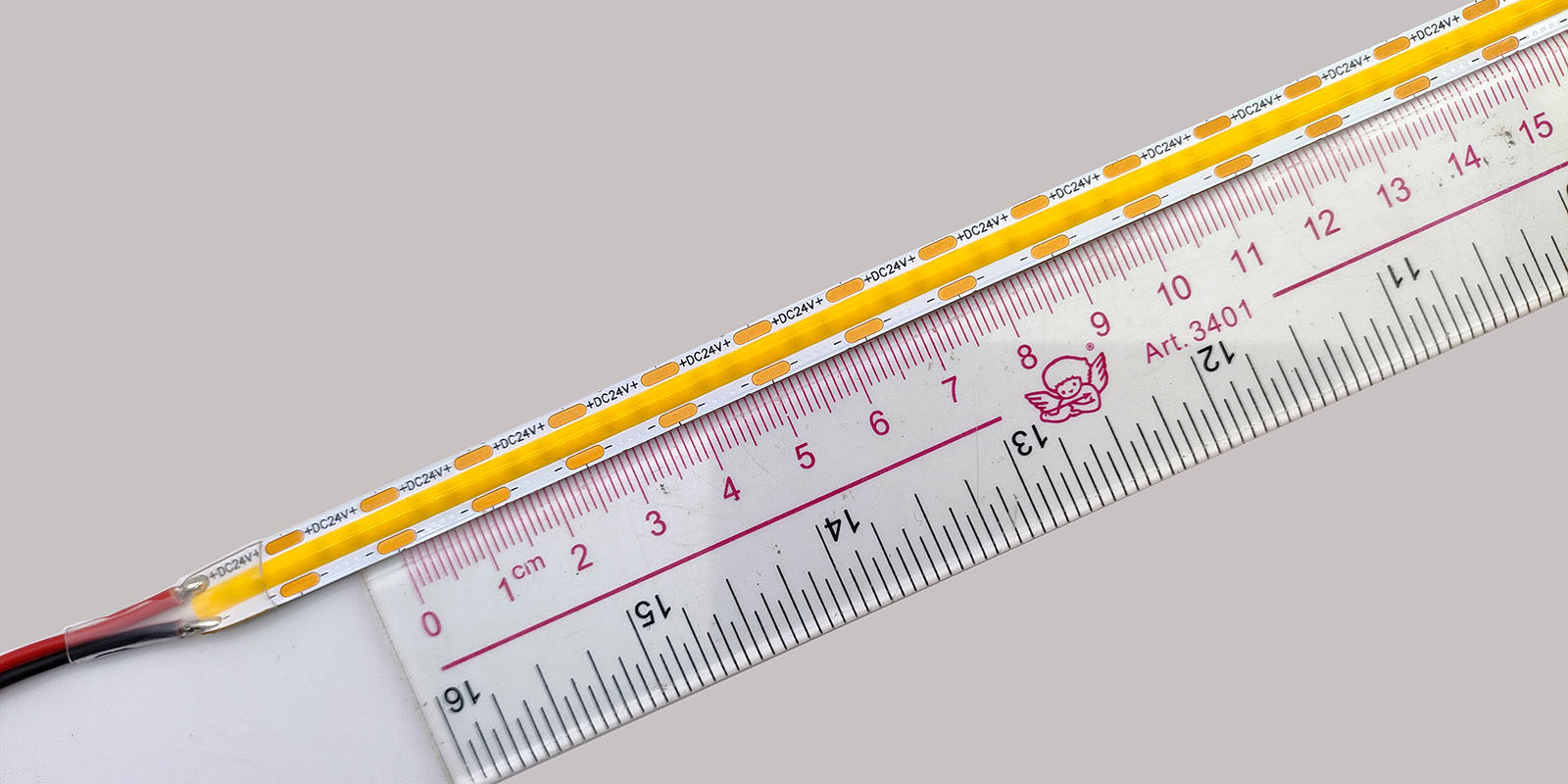

The Key feature is the cut length, 125mm/Cut for the 24V version, good for some special applications.
Fast lead time: 48 hours for order quantity < 1000 meters
Datasheet:
Product: | 1.25cm/Cut 8mm Width DC24V 480led/m COB Flexible LED strips |
Item No.: | ADY-COB-480-0824-C12 |
LED: | COB LED, 480LEDs/m, RA90, 2700K, 3000K, 4000K, 6000K |
View angle: | 180° |
IC Chip: | N/A |
Input voltage: | 24V |
Power: | 10w/m |
Size: | 5000x8x1.6(mm) |
Features
1) High brightness, low light decay. lifespan>50,000 hours, 3-year warranty;
2) Pure color, CCT available 2000-7000k. DC12V/24V, safe & low power consumption;
3) No light dot or spot; soft light, Arbitrarily bending, smaller bendable angle;
4) 180° view angle;
5) Easy to connect & install Free cuttable soft FPC;
6) Dustproof and water-resistant IP65; Flexible ribbon for curving around bends;
7) Solid-state, high shock vibration resistant;
8) Excellent heat dissipation, better than the SMD2110/2216/2835 led strips.

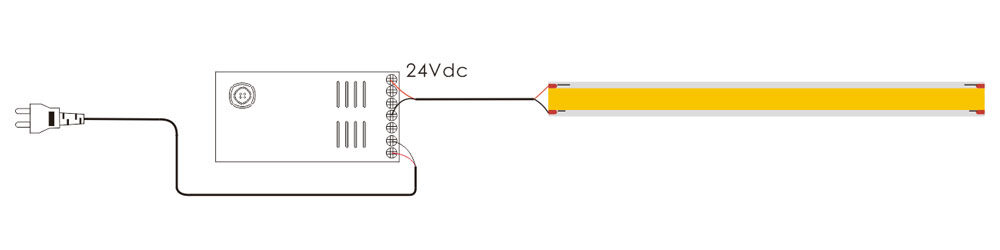

Wiring Diagram & Size:

Application:
- 1) Architectural decoration Lighting; Backing lighting for signage letters;
- 2) Decoration lighting for under water project; Archway /Canopy & Bridge Edge Lighting;
- 3) Auditorium walkway lighting, Amusement park / Theater lighting;
- 4) Stairway Accent Lighting, Channel letters lighting;
- 5) Furniture Decoration Lighting; Cove Lighting etc;
Order info: (Color: White or R/G/B/Y)
SN | Model Number | LED | PCB Width | Voltage | Power | Waterproof |
1 | ADY-COB-400-0812 | 400led/m | 5mm | 12V | 6w/m | IP20/IP65/IP67 |
2 | ADY-COB-400-0824 | 400led/m | 5mm | 24V | 6w/m | IP20/IP65/IP67 |
3 | ADY-COB-480-0824-C12 | 480led/m | 8mm | 24V | 10w/m | IP20/IP65/IP67 |
4 | ADY-COB-528-0824-CF | 528led/m | 8mm | 24V | 14w/m | IP20/IP65/IP67 |

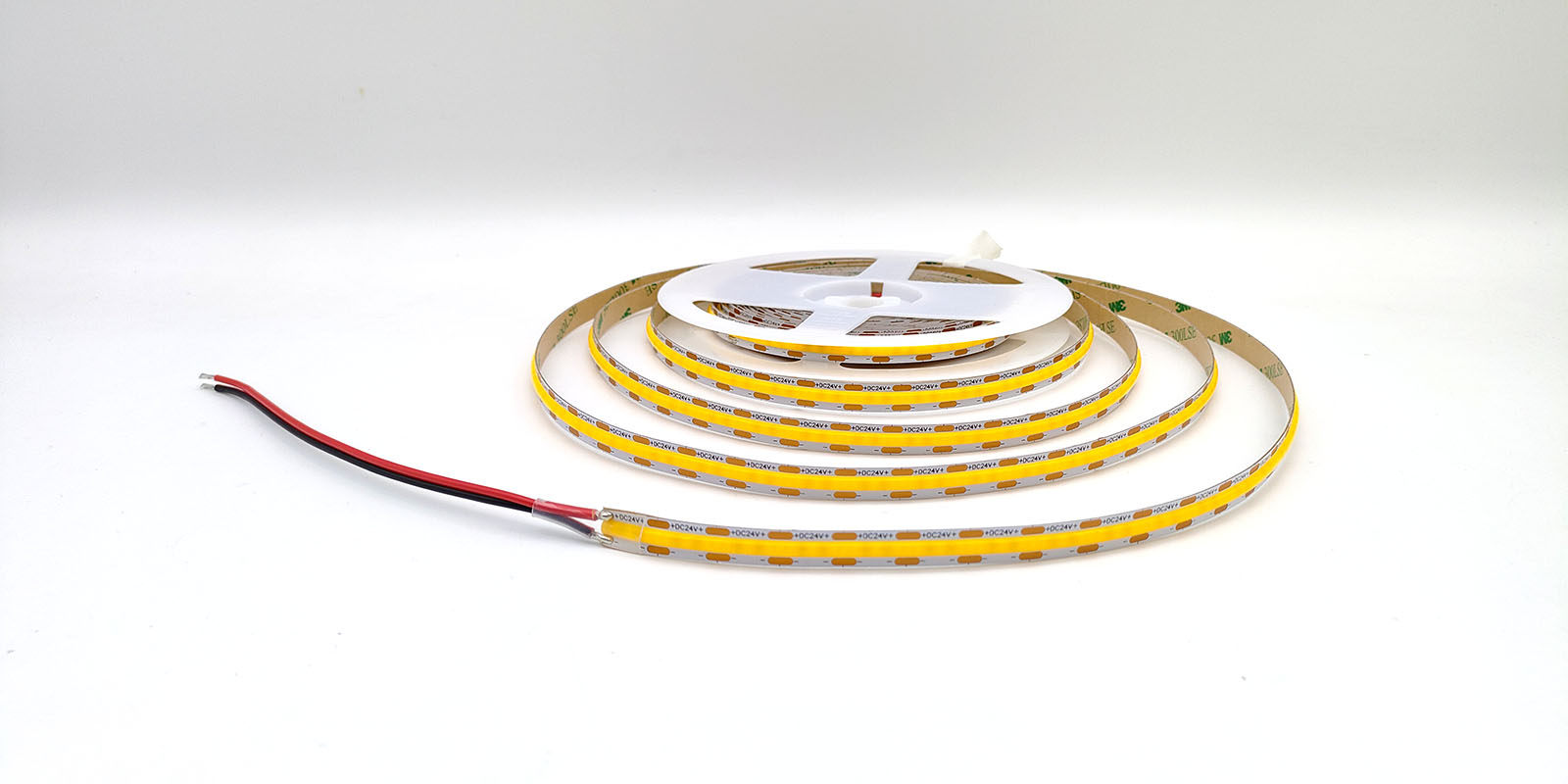

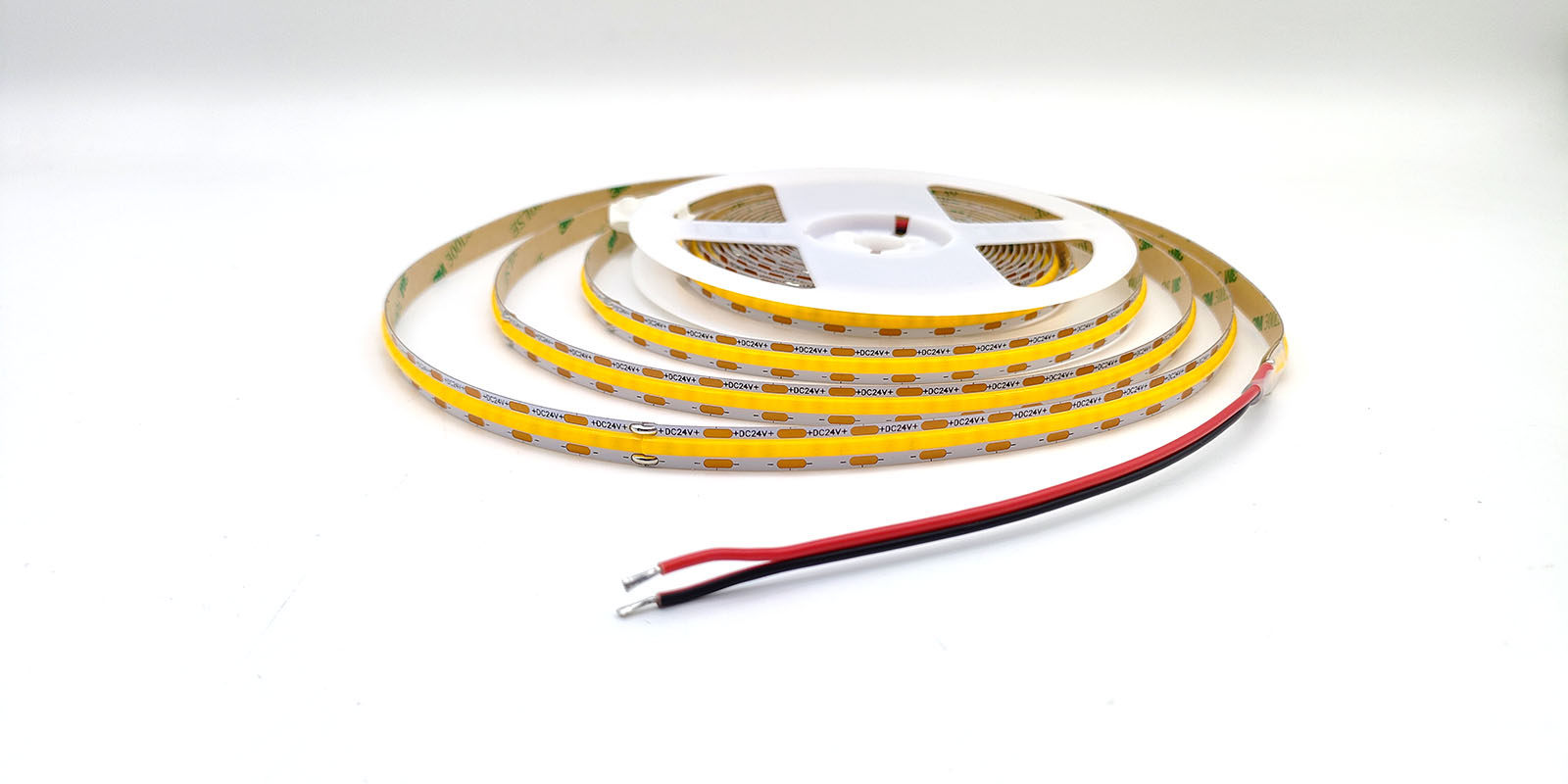

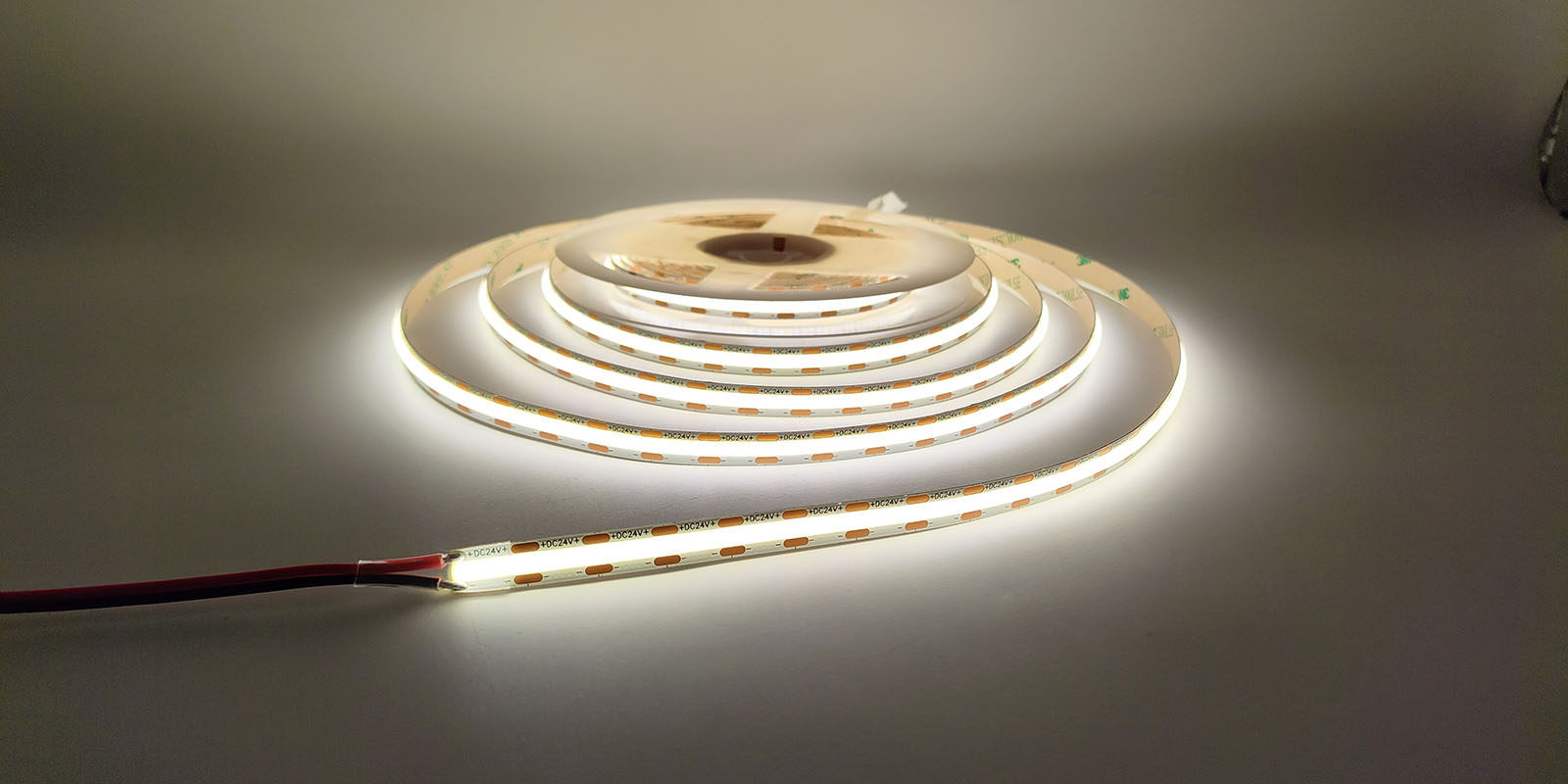

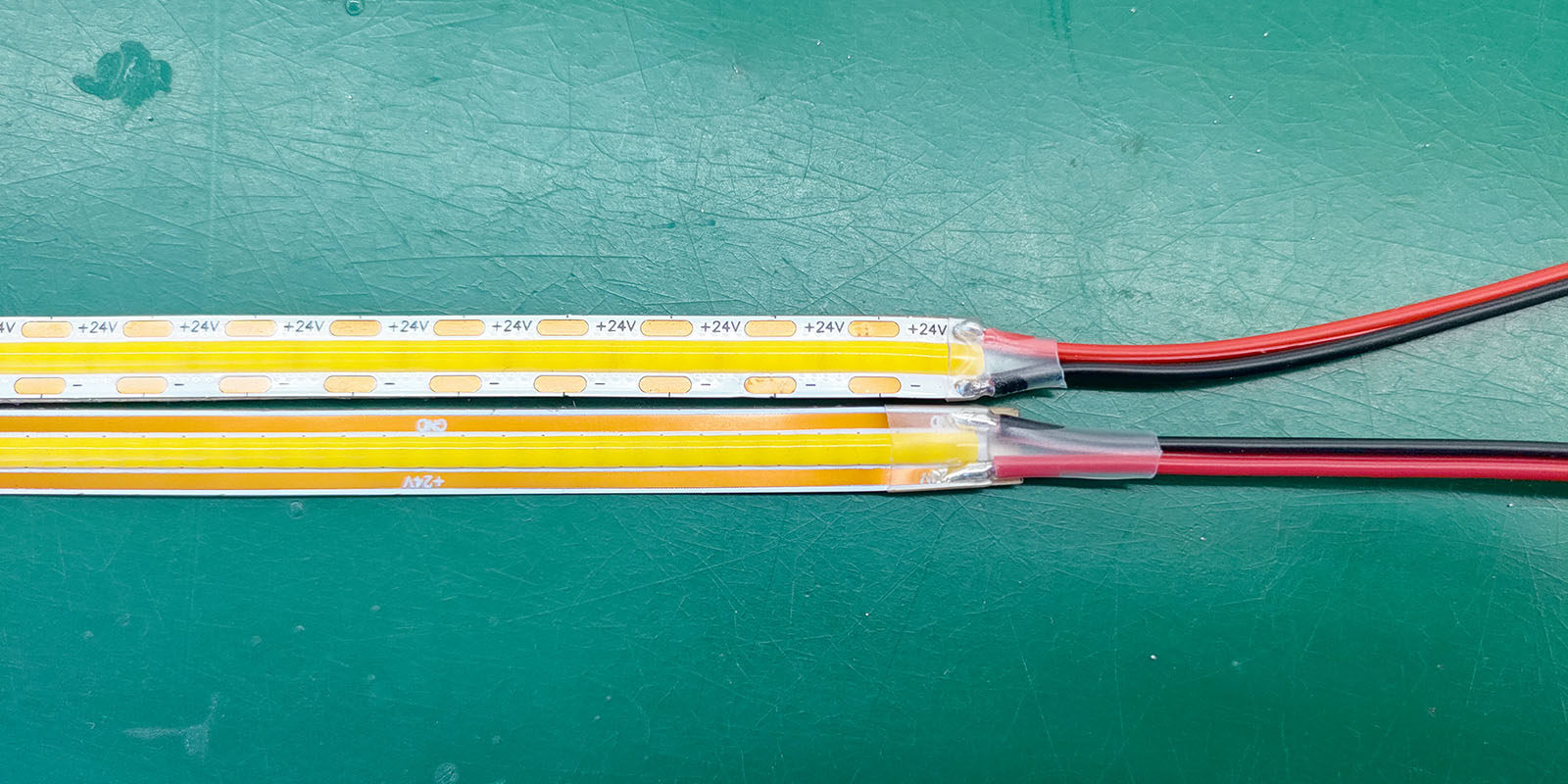

Photos
