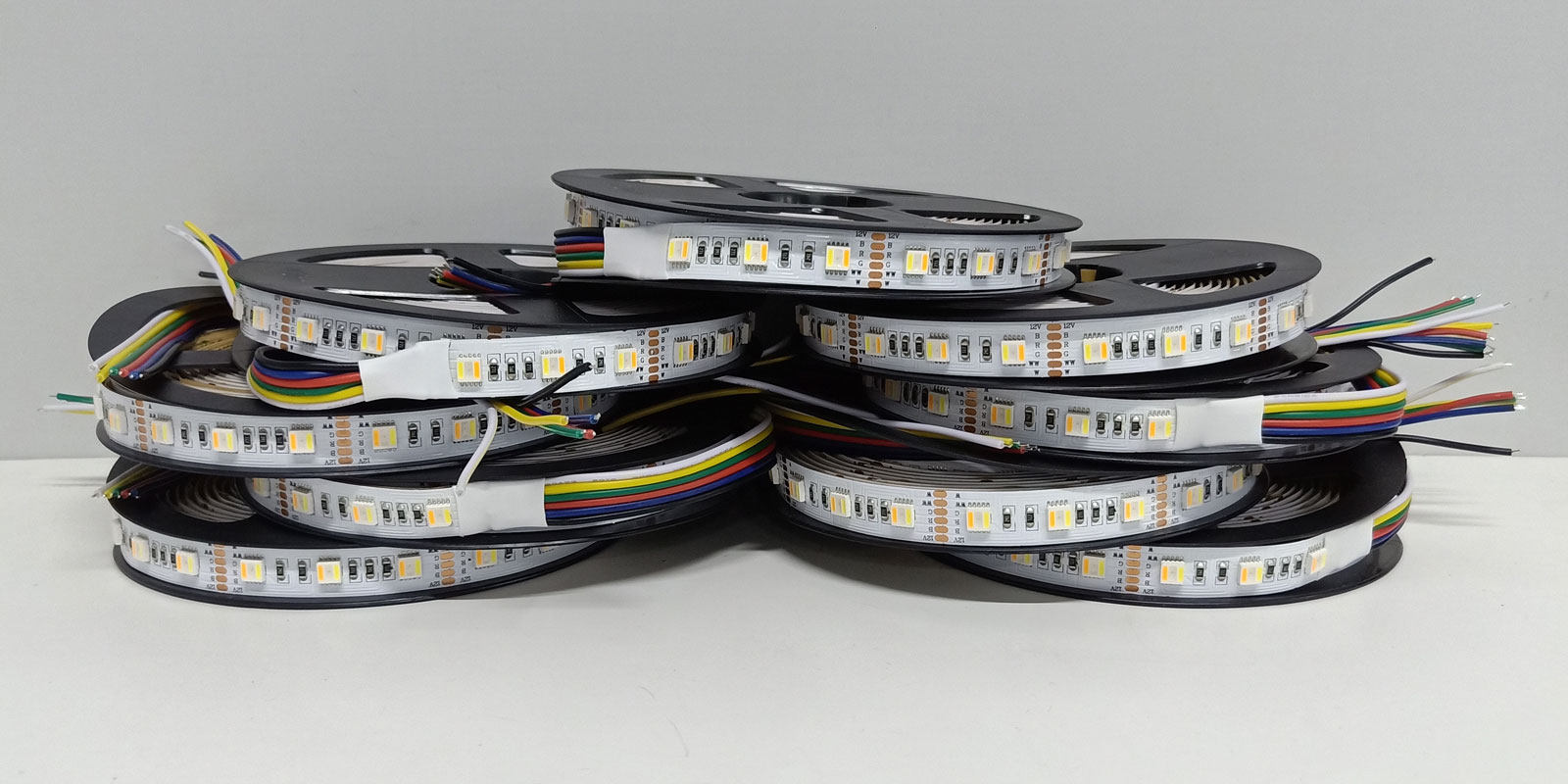

RGB+CCT | RGBWW | RGBCW 5in1 DC24V 96leds High Density led strip light
Features:
- Firstly, Copper base, gold wire, good heat dispersion, long life span and low Luminous Decay
- Secondly, All high quality double layers PCB, at least 2 ounces, or 4 oz in 5in1 RGBWW led strip models.
- Thirdly, Same bin SMD LEDs for different orders for the same customer.
- Fourthly, Everfine integrating sphere to test the led strips.
- Lastly, 3 MacAdam LED Strip/tape as customer request.
Specification:
| Item Type |
SMD5050-RGBWW 5 colors in 1 Flex LED Strip
|
| Led Model | ADY-F5-96-1224 |
| LED Qty | 96Leds/meter |
| Min. Cutting length: | 10.416mm |
| Ra | 80 |
| CCT(K) | RGB+2200K+6500K |
| Dimmensions(mm) | 5000 * 12 * 2 (L * W * H) |
| IP Rating | IP20/IP65/IP67/IP68 |
| Bean Angel | 120º |
| Certification | CE/RHOS |
| Warranty | 2 Years |
Order info: (Color: RGB+3000K+6000K)
| 序号 | 产品型号 | 灯珠/米 | 像素/米 | 电气参数 | PCB | 其它 |
| 1 | ADY-F5-30-1212 | 30 | 1 | 12V, 8.4w/m | 12mm FPCB | |
| 2 | ADY-F5-60-1212 | 60 | 1 | 12V, 16.8w/m | 12mm FPCB | |
| 3 | ADY-F5-60-1224 | 60 | 1 | 24V, 16.8w/m | 12mm FPCB | |
| 4 | ADY-F5-84-1224 | 84 | 1 | 24V, 20.2w/m | 12mm FPCB | |
| 5 | ADY-F5-96-1224 | 96 | 1 | 24V, 36w/m | 12mm FPCB |
Colorful series
Implementation of 7 colour change at the same time can have a pure white light. Single point of single control, high gray level, and can achieve a variety of beautiful effect. Achieve pure white while changing different colors. For magic LED strips, Each IC controls each LED, high gray level realize various lighting effects.
About the SMD5050 5IN1 LED Chips
Waterproof Grade
IP20: Non-waterproof, available indoor.
Ip65: silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.
IP67: Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.
IP68: Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water.
