Narrow PCB | 4mm Width 120pix/m SK6812 4020 RGB Sideview Digital LED Strips
Overview:
One LED One Address | Narrow PCB Sideview | 4mm Width 120pix/m SK6812 4020 RGB Sideview Digital LED Strips, 120led/m, Control IC built inside the LED, 120pixel/m, 5V, 12w/m, 4mm white or black PCB, 15cm JST connector;
Data sheet:
| Product: | One LED One Address | SK6812 4020 RGB Sideview Digital LED Strips |
| Item No.: | ADY-6812-4020-120-0405 |
| LED: | SK6812-4020-GRB, 120led/m |
| View angle: | 120° |
| IC Chip: | SK6812 |
| Input voltage: | 5V |
| Power: | 12.0w/m |
| Size: | 1000x4x2.3(mm), 1m/roll |
Features
1) Addressable DC5V SK6812-4020-RGB side emitting LED Strips; Long life span 50,000+ hours;
2) Super bright 4020 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD4020-RGB LED;
4) SK6812 has 3 Wires input and output: Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

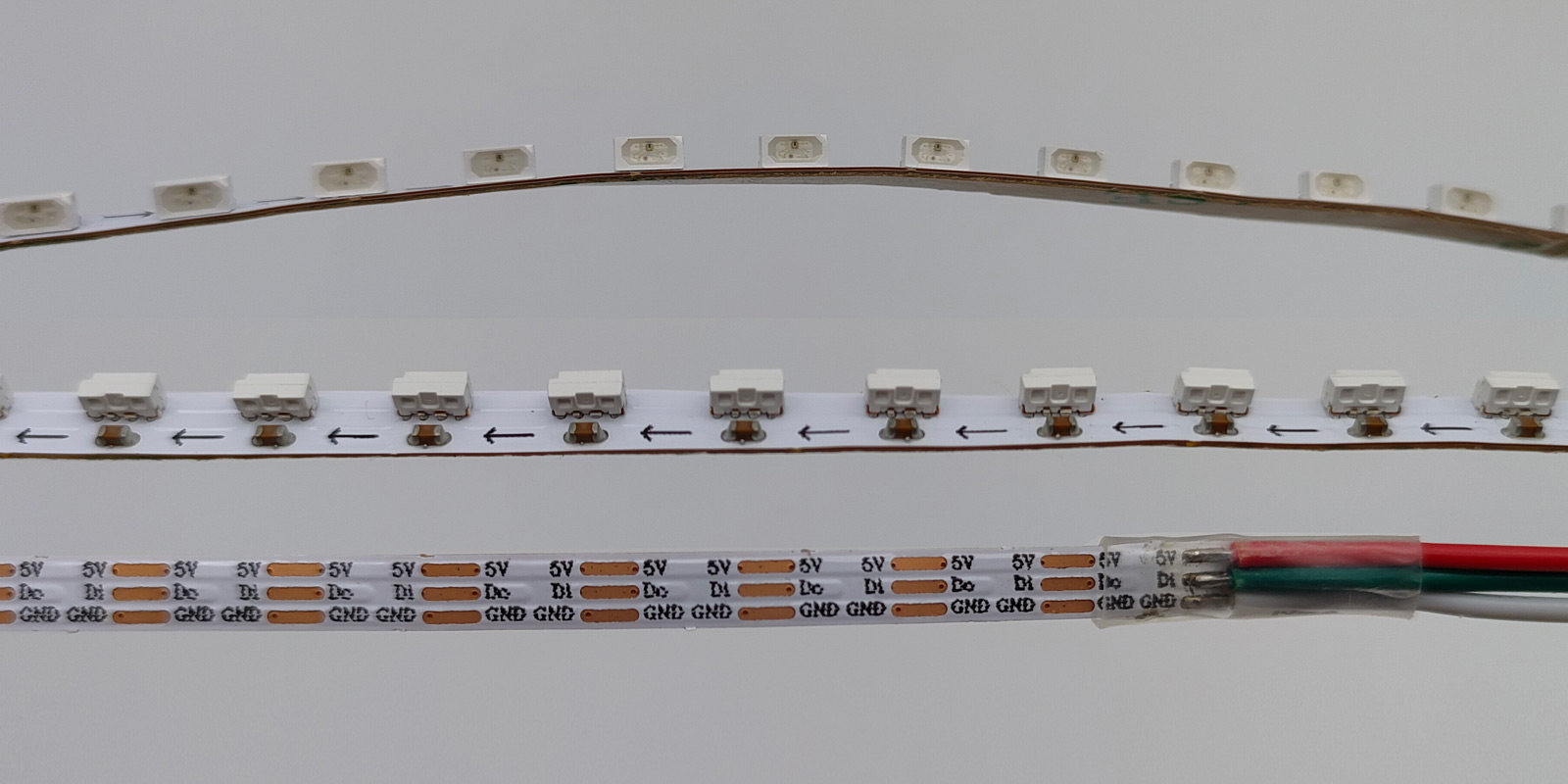

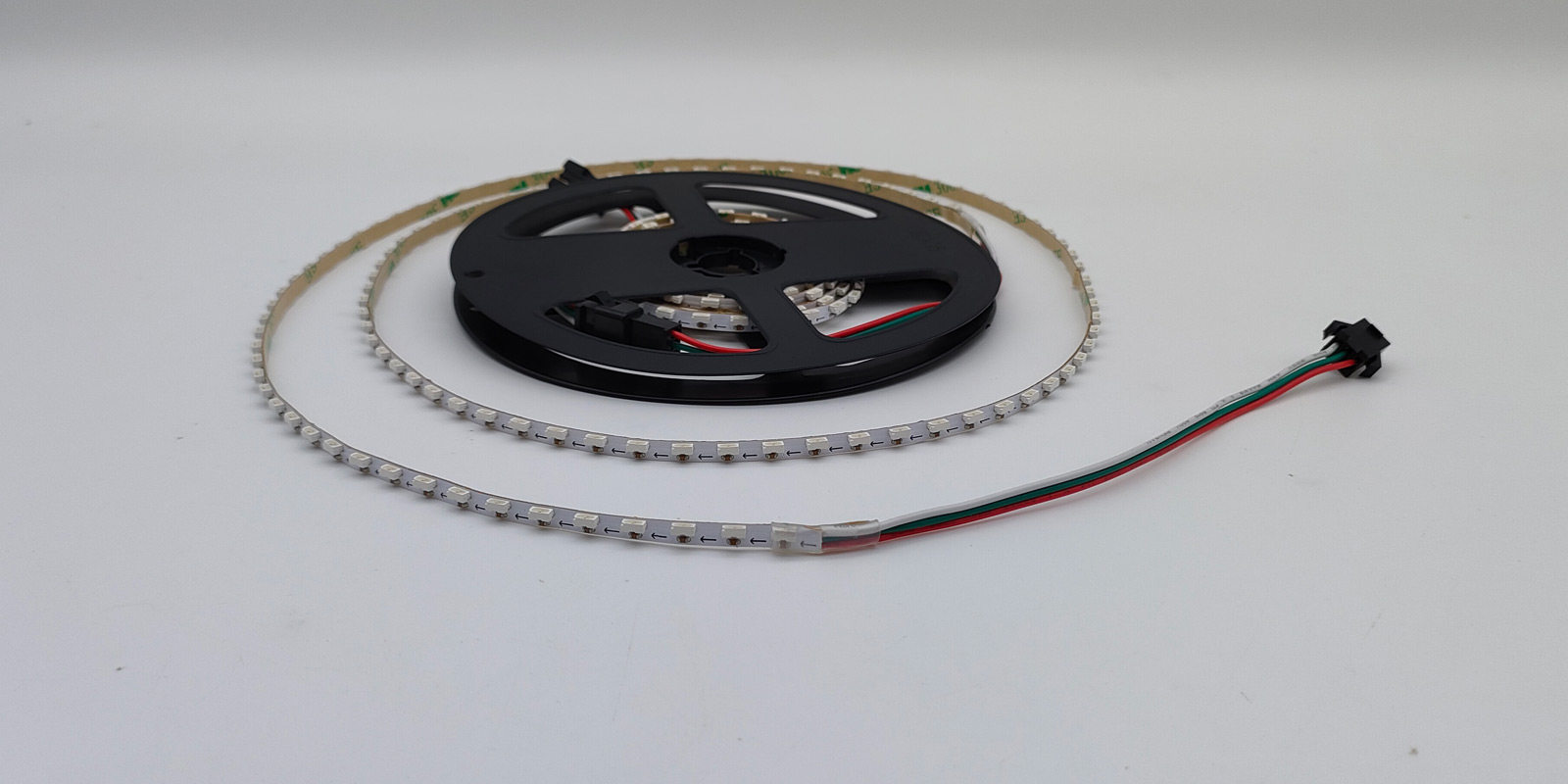

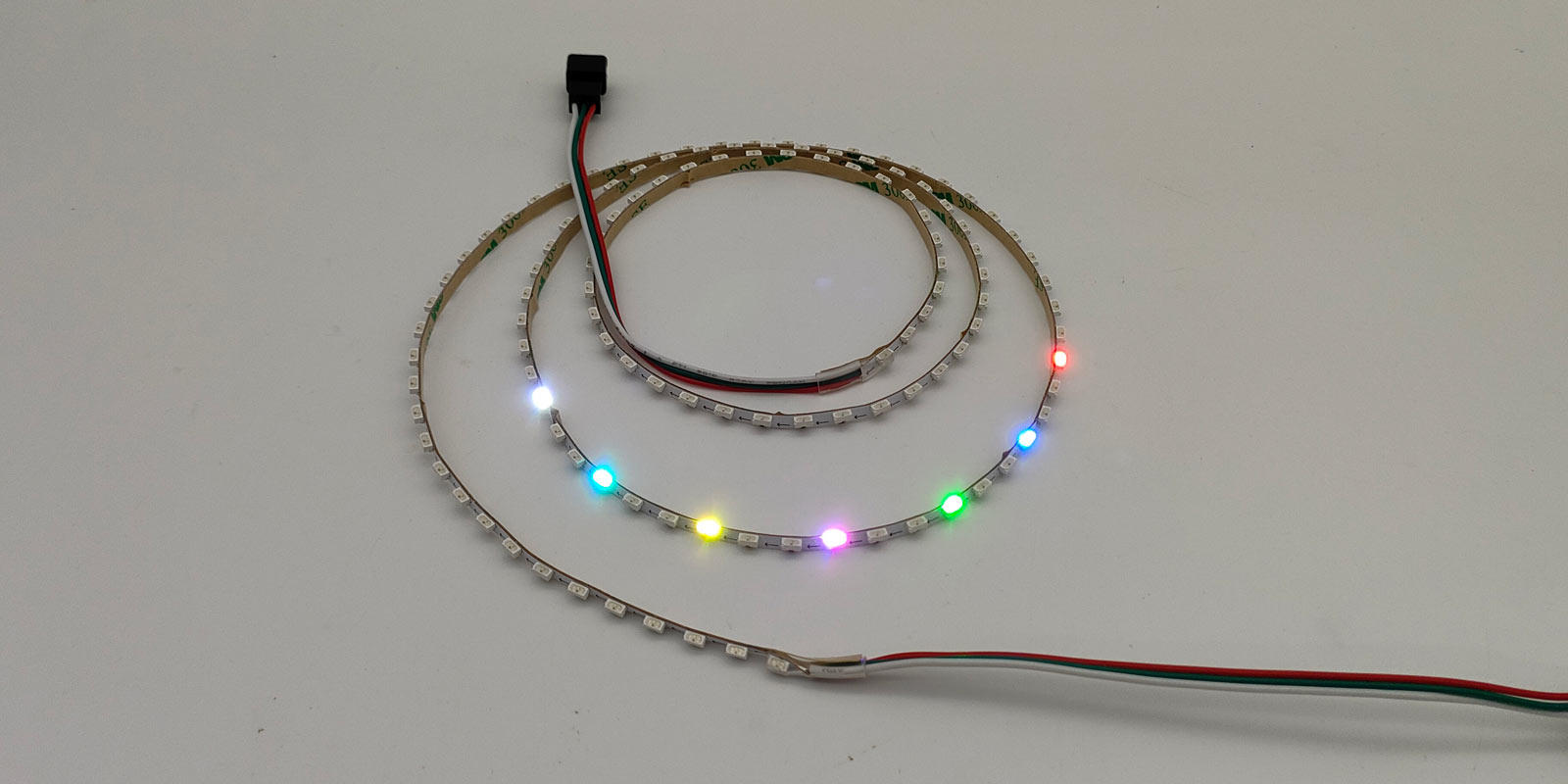

Photos
