High Brightness RGB Addressable RGB Chip Light WS2812B Led Strip
High Brightness RGB Addressable Chip Light WS2812B Led Strip
Overview: High Brightness RGB Addressable Chip Light WS2812B Led Strip, 30/60/72/96/144led/m, Control IC built inside the LED, 30/60/72/96/144pixel/m, 5V, 0.3w/led, 10 to 12mm white or black PCB, 15cm JST connector;
Regular Product list: |
||||||
| SN | Model Number | LED Qty | PCB Width | Voltage | Power | Note |
| 1 | WTP-2812B-30-5V | 30led/m | 10mm | 5V | 9.0w/m | IP20/IP65/IP67/IP68 |
| 2 | WTP-2812B-60-5V | 60led/m | 10mm | 5V | 18.0w/m | IP20/IP65/IP67/IP68 |
| 3 | WTP-2812B-72-5V | 72led/m | 10mm | 5V | 21.6w/m | IP20/IP65/IP67/IP68 |
| 4 | WTP-2812B-96-5V | 96led/m | 10mm | 5V | 28.6w/m | IP20/IP65/IP67/IP68 |
| 5 | WTP-2812B-144-5V | 144led/m | 12mm | 5V | 43.2w/m | IP20/IP65/IP67/IP68 |
Features:
1) Addressable DC5V WS2812b LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) WS2812b has 3 Wires input and output: Data, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting
Related digital led strips with IC built inside: |
|||||
|
SN |
LED chip Name |
Individual |
Breakpoint |
Clock Pin |
Operate |
|
1 |
WS2812b, SK6812, SK6812-RGBW |
Yes |
No |
No |
5V |
|
2 |
WS2813,CS2803 |
Yes |
Yes |
No |
5V |
|
3 |
WS2815,CS8812 |
Yes |
Yes |
No |
12V |
|
4 |
APA102,SK9822 |
Yes |
No |
Yes |
5V |
|
5 |
DMX512 digital led strip: CS512A1 |
Yes |
Yes |
No |
12V |
Related digital led strips with IC built outside: |
|||||
|
6 |
WS2811,UCS1903,16703,GS8205,TM1814-RGBW |
No |
No |
No |
5V,12,24V |
|
7 |
TM1812-RGBCCT,LPD8806-RGBCCT |
No |
No |
No |
5V,12,24V |
|
8 |
TM1914,WS2818,GS8206 |
No |
Yes |
No |
5V,12,24V |
|
9 |
WS2801,LPD8806,16726 |
No |
No |
Yes |
5V,12,24V |
|
10 |
DMX512 digital led strip: UCS512-C4,UCS512-B3 |
No |
Yes |
No |
5V,12,24V |

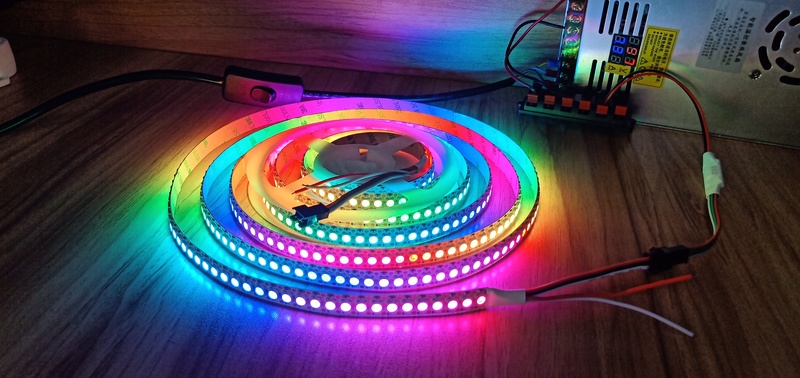

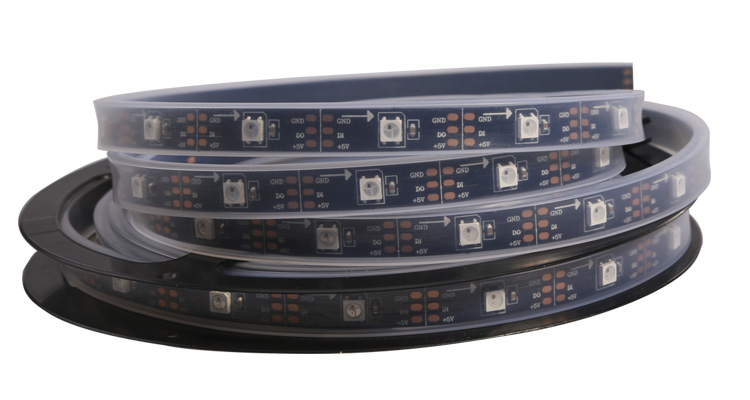

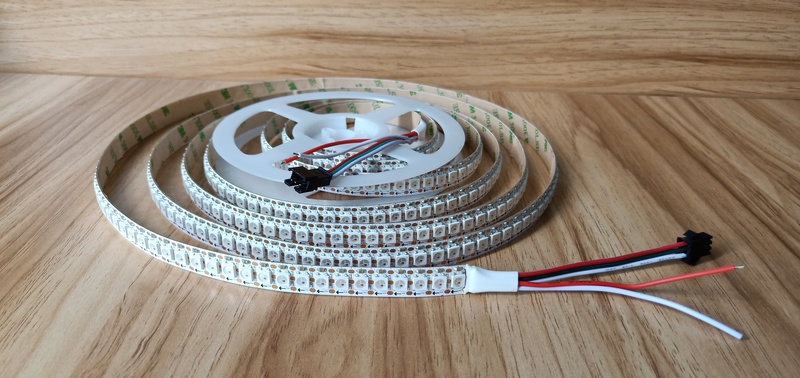

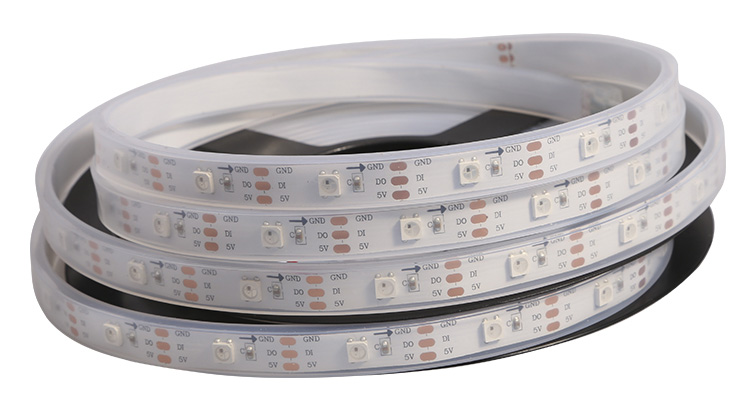

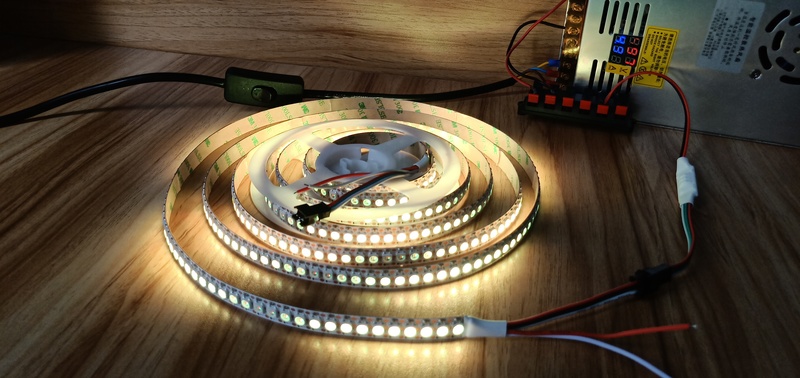

Photos
