New 4mm PCB 60led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
4mm FPCB SMD 2020 RGB Magic Dream Color APA102 Flexible Pixel LED Strips
- Product: New 4mm PCB 60led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
- LED: APA102-RGB-2020 Full colors, 60LED/m, 60pixels/m
- View angle: 120°C
- Power: DC 5V, Max. 6w/m,
- PCB: 4mm Flexible PCB, Black or white
- Connection: 4pin JST SM connector on both end (5V+, GND, Clock and Data)
- Packing: 2m/roll
- Controller: SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc…
Features:
> Firstly, Control IC APA102C inserted in 2020 RGB diode, individually addressable control, supporting numerous color-change effects.
> Secondly, The strip needs to operate at low current by using special controller or power supply that can adjust the current, recommend to operate this strip at 2mA~5mA and use aluminum profile for heat dissipation. If operate at 20mA max, the strip will become very heat and easily burn the SMD LEDs.
> Thirdly, It comes in 2 meters per reel with a 4pin JST SM connector on both end and separated power /Ground Wires. The customized length is workable.

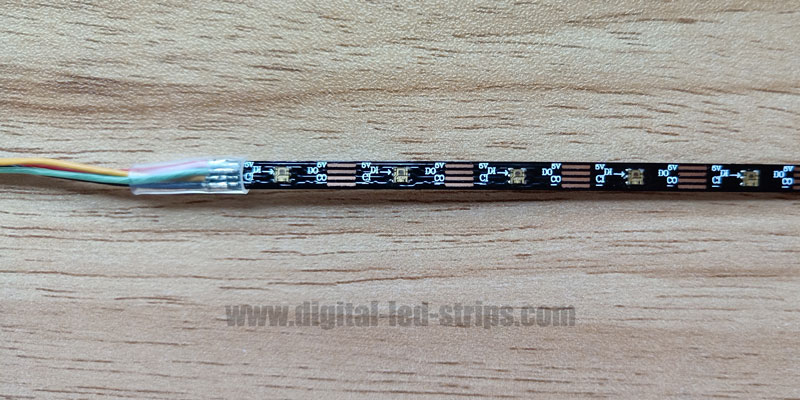

> Fourthly, Flexible PCB material. Each LED /Pixel can be cut, there is cut lines every 16.6mm.
> 60leds/m, 5V low voltage inputted, don’t over 5.5V, otherwise, you will destroy the entire strip.
> 4mm width PCB, 0.25mm thickness with 3M tape backside for non-waterproof version.
> Date Pin and Clock Pin for signal transfer.
> Lastly, The APA102C 2020 RGB led strip also has 100leds and 250leds per meter.
Applications:
This excellent light and user-friendly designs make LED strip perfect for numerous applications. ie cove lights, backlights, cabinet lights, edge light, architectural lights for the corridor, canopy, archway, lights for path and contour marking, etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee/ wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
