APA102 2020 High Density 200 Pixels LED Strip

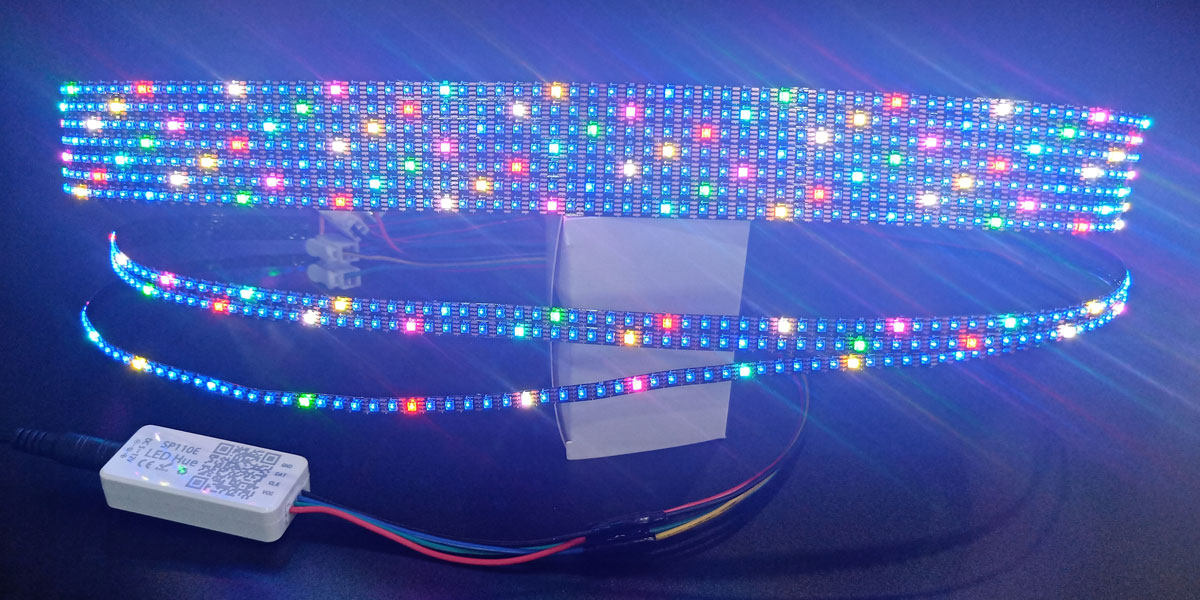

200 Pixels LED Strip video show:

APA102 LED is a new kind of digital rgb full color built-in IC SMD, which has one data cable with one independent clock cable,this makes the signal travels very rapid and stable quality. Even to show the videos with a large data transmission on the LED, it also works smoothly and won`t get stuck.

CLK AND DATA Clarify:

Specification:

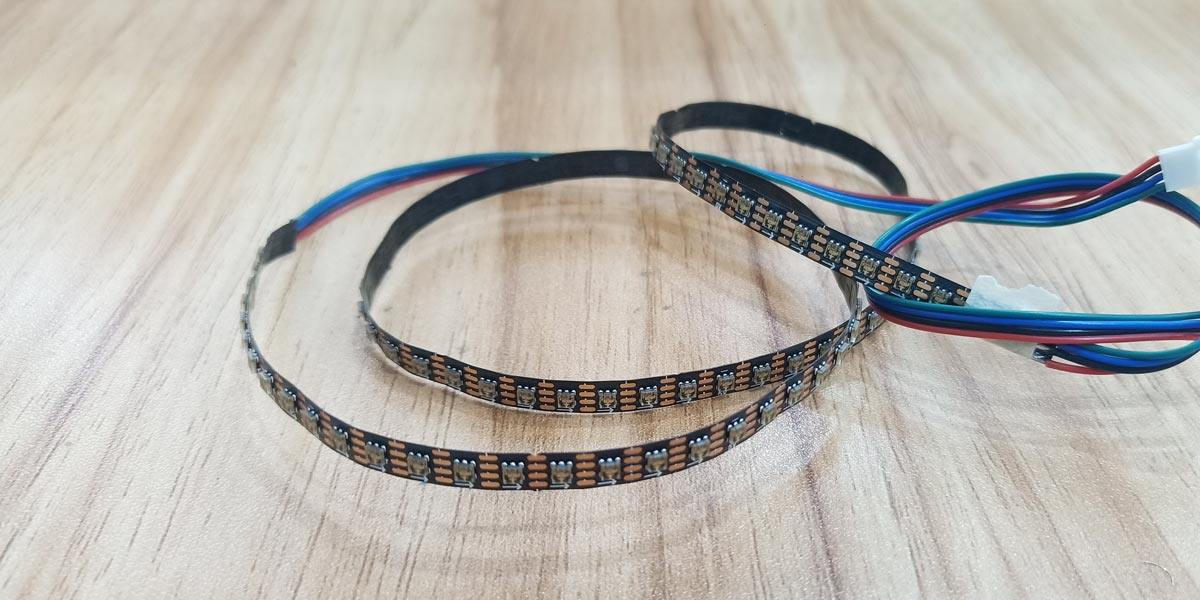

Product Name:	200 Pixels/m APA102-2020 Individual Programmable LED Strip
Item No.:	ADY-A2020-200-0505
LED Source:	APA102-SMD2020-RGB, 200led/m, 200pixels/m
PCB	5mm black FPCB
IC Chip:	APA102
Pins:	4 Wires = 5V+, CLK, DATA, GND
View angle:	170°
Voltage & Power:	DC 5V, 20w/m

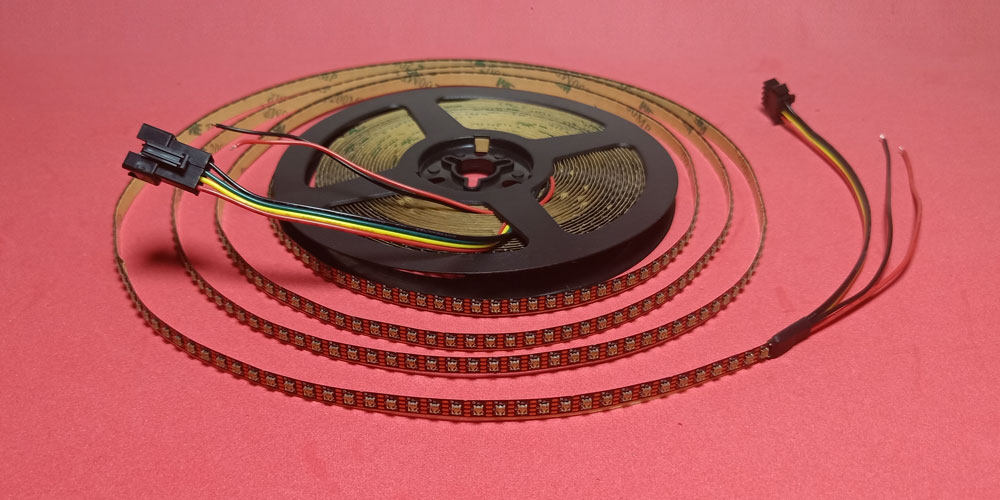

Size:	2000x5x1.8(mm), 2m/roll or according to your requirements
Controller:	SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc…

APA102-2020 LED Chip Description:

1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0×2.0x0.75(mm), which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also use the APA102 as the driver IC to control the color dimming. Also, high brightness too, for each apa102-2020 led is 0.1W.
4) It can be widely used in apa102 2020 digital RGB led strips, apa102 2020 dot star, also apa102 led pixels, and the full color led display.

Features:

• Firstly: Individual controlable / addressable / programmble
• Secondly: High density, 200 pixels per meter
• Thirdly: Mini Size, 5 mm black FPCB

Wiring Diagram:

Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip
