NEW 3mm Width Tiny PCB High Density SK6812 2020 RGB 200 Pixels LED Strip

3mm Width 200 Pixels/m LED Strip video show:

200 Pixels LED Strip SK6812-2020-RGB High Density

SK6812-2020-RGB LED is a small size digital full-color built-in IC SMD, which has one SPI data and can be controlled by most SPI LED Controllers.

> 3mm width Super Narrow Flexible PCB
> High density, 200led/m, 200pixels/m, individual addressable
> Each LED is cuttable

Because the PCB is too small, we didn’t print the Pin Recognizing letters on the PCB


Product Name:  NEW 3mm Width Flex PCB SK6812 2020 RGB 200 Pixels LED Strip
Item No.: ADY-SK6812-2020-200-0305
LED Source:  SK6812-SMD2020-RGB, 200led/m, 200pixels/m
PCB 3mm white FPCB
IC Chip: SK6812
Pins: 3 Wires = 5V+, DATA, GND
View angle: 170°
Voltage & Power: DC 5V, 16w/m
Size: 2000x3x1.5(mm), 2m/roll or according to your requirements
Controller:   SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc…

Packing: 2 meter/roll

APA102 2020 RGB 6A


  • Firstly: Individual controlable / addressable / programmble
  • Secondly: High density, 200 pixels per meter
  • Thirdly: Mini Size, 3 mm white FPCB

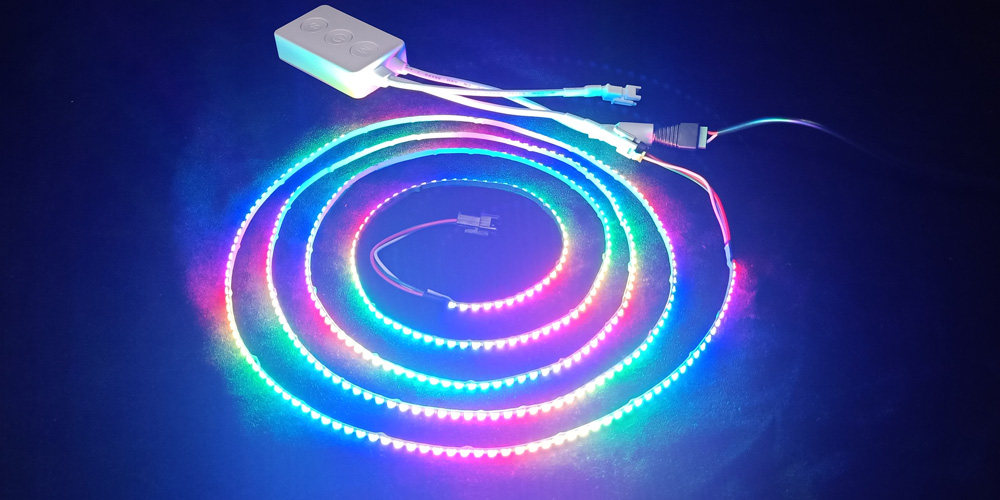

SK6812 2020 High Density 200 Pixels LED Strip
200 Pixels LED Strips

SK6812 2020 RGB Mini Size LED

Wiring Diagram:

Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip

Features of the SK6812-2020-RGB LEDs:

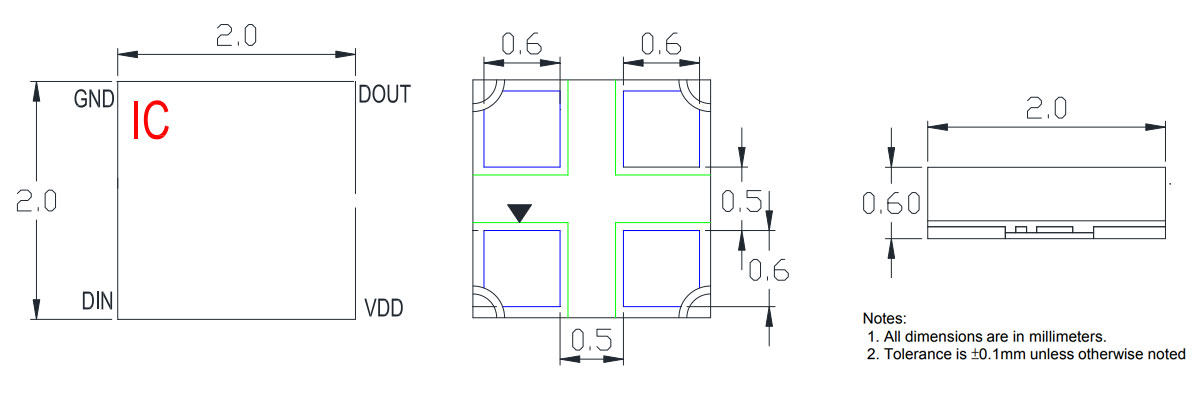

The dimension of the LED SK6812-2020-RGB

  • TOP SMD internal integrated high-quality external control line serial cascade constant current IC;
  • The control circuit and the RGB chip in SMD 2020 components, to form a complete control of pixel, color mixing uniformity, and consistency;
  • Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
  • Gray-level adjusting circuit (256 level grayscale adjustable);
  • Red drive special treatment, color balance;
  • Plastic forward strengthening technology, the transmission distance between two points over 10M;
  • Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
