APA102 5050 30leds 60leds 144leds Individual Control and Clock Synchronization Addressable Flex led strips

APA102 5050 60leds Addressable Flex led strips
APA102 5050 RGB 60leds Individual Control and Clock Synchronization Addressable Flex led strips


APA102-5050-RGB 60leds Individual Control and Clock Synchronization Addressable Flex led strips, 60led/m, 60pixels/m, Control IC built inside the LED, DC 5V, 18w/m, 10mm white or black PCB, 5m/roll, 15cm JST connector;


  Product:   60LED/m APA102-5050-RGB Addressable Flex led strips
  Item No.:    WTP-APA102-60P-10B5V
  LED:    APA102-SMD5050-RGB-60led/m
  View angle:   120°
  IC Chip:   APA102
  Input voltage:   DC 5V
  Power:   43.2w/m
  Size:   5000x10x2.0(mm), 1m/roll


1) Addressable DC5V APA102 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) APA102 has 4 Pins input and output: Data, Clock, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;


> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting


1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty Pixel Qty PCB Width Voltage Power
1  WTP-APA102-30-1005 30led/m 30Pixel/m 10mm 5V 9.0w/m
2  WTP-APA102-60-1005 60led/m 60Pixel/m 10mm 5V 18.0w/m
3  WTP-APA102-96-1005 96led/m 96Pixel/m 10mm 5V 28.8w/m
4  WTP-APA102-144-1205 144led/m 144Pixel/m 12mm 5V 43.2w/m

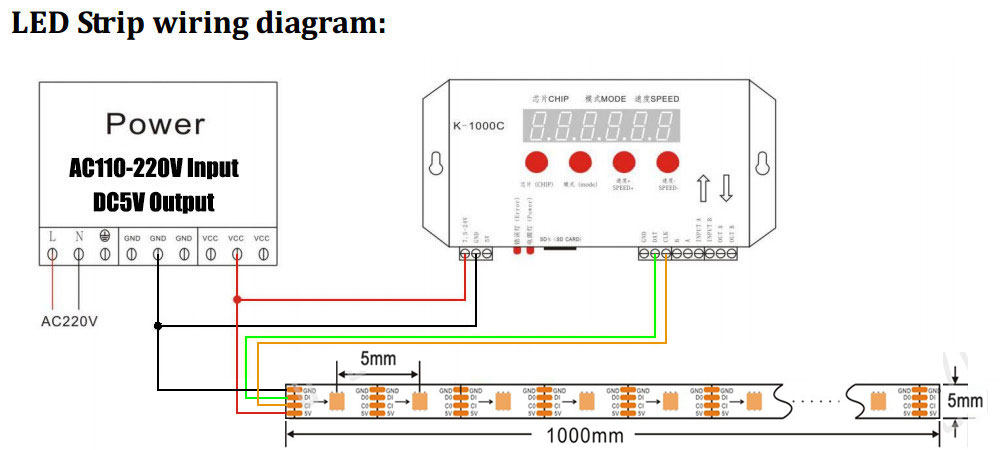

Photos show:
