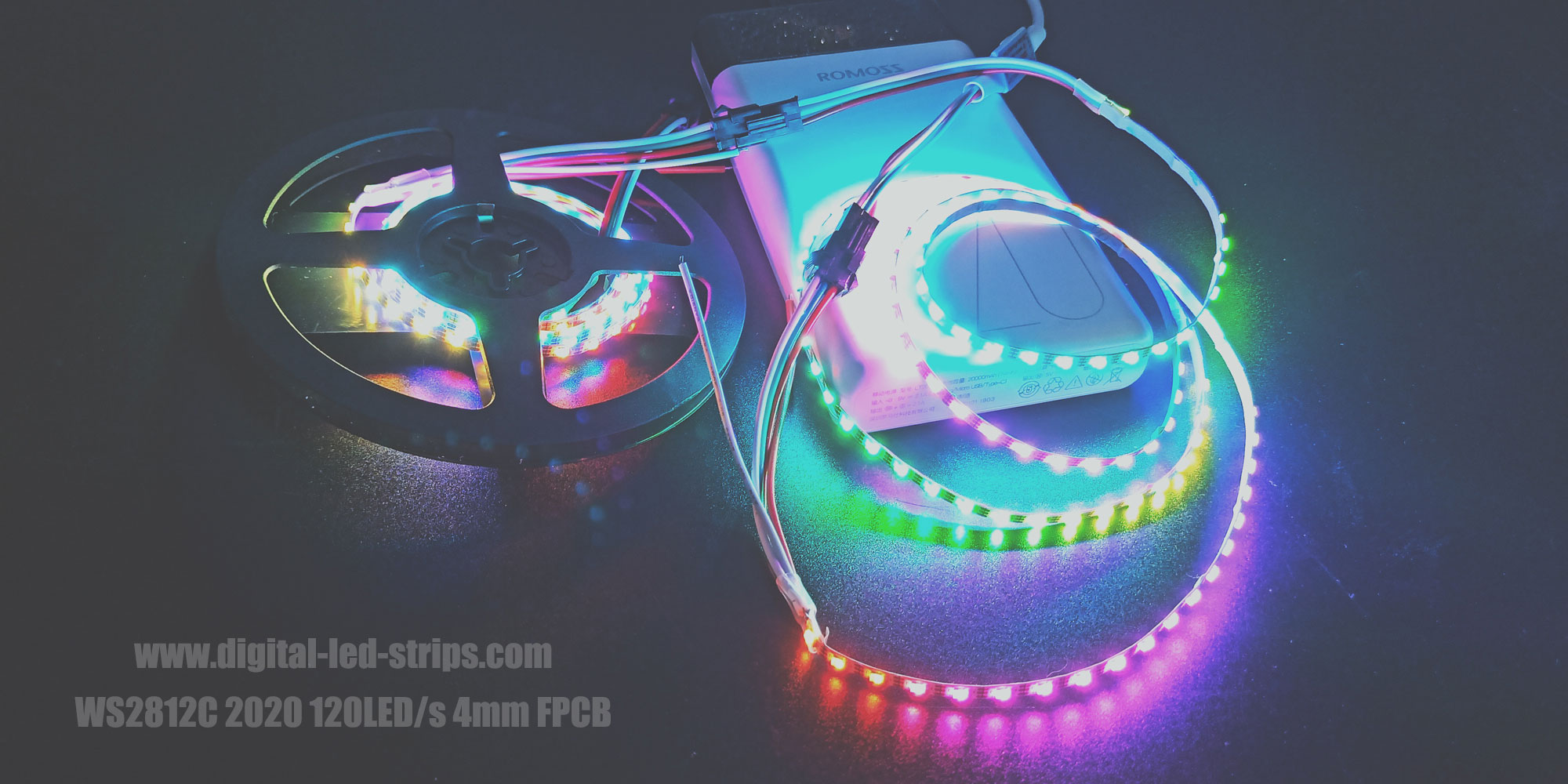

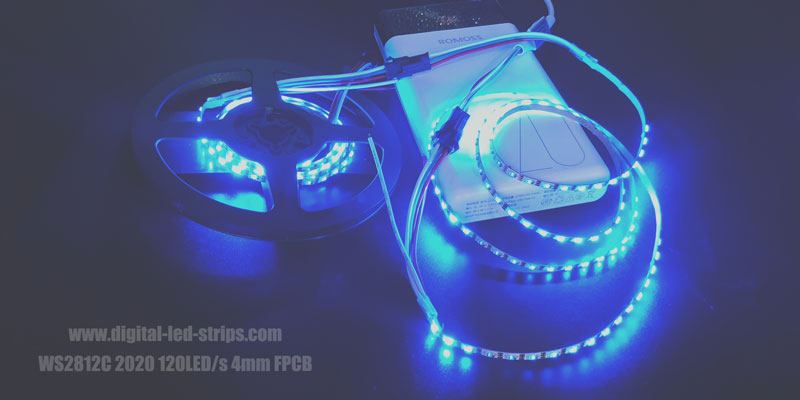

4mm Tiny 120 Pixels WS2812B 2020 Digital LED Strips

Video | 4mm Tiny 120 Pixels WS2812B 2020 Digital LED Strips


LED Strip wiring diagram ws2812b 2020
LED Strip wiring diagram ws2812b 2020

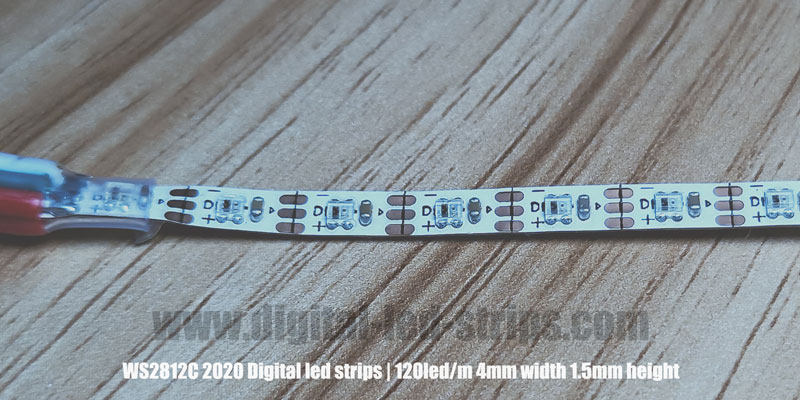

4mm Mini FPCB 120 LED/m WS2812B 2020 Full-color Digital LED Strips, WS2812B Control IC built inside the LED, LED Size 2020, LED Name WS2812B-2020-RGB, 120led/m, 120pixel/m, 5V, 24w/m, 4mm white or black PCB, 15cm JST connection;

Individually controllable, Gray level 256, fast data transmission, fast picture refresh, with control system implementation, monochrome, gradient, water, horse, chase, dream, collision, text, numbers, English, pictures, animation, video, many effects;

Data sheet:

  Product:   4mm Tiny 120 Pixels WS2812B 2020 Digital LED Strips
  Item No.:    WTP-2812-2020-120-0405
  LED:    WS2812B-SMD2020-RGB, 120led/m
  View angle:   120°
  IC Chip:   WS2812B
  Input voltage:   5V
  Power:   24w/m
  Size:   2000x4x1.5(mm), 2m/roll


1) Addressable DC5V WS2812B LED Strips; Long life span 50,000+ hours;
2) Mini 2020 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD2020-RGB LED;
4) WS2812B has 3 Wires input and output: Data, GND and Power+; one LED died, the next LEDs died too;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting


1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: IP20/IP65/IP67/IP68)

 Model Number  LED/m  Pixel/m  PCB Width  PCB Color  Power  Packing
  WTP-2812-2020-120-0405  120  120  4mm  W/B  5V,24w/m  2m/reel


WS2812B 2020 RGB




Get in touch with us now

This Post Has 2 Comments
  1. Good morning,

    I need 2 or 4 m ledstrip type ‘4mm Tiny 120 Pixels WS2812B 2020 Digital LED Strips’. Or if possible with more SMD2020 /m.

    I can not figure out where to buy these strips. Can you supply me with shops where I can buy this LED strip?

    Regards Misha.van der Stam
