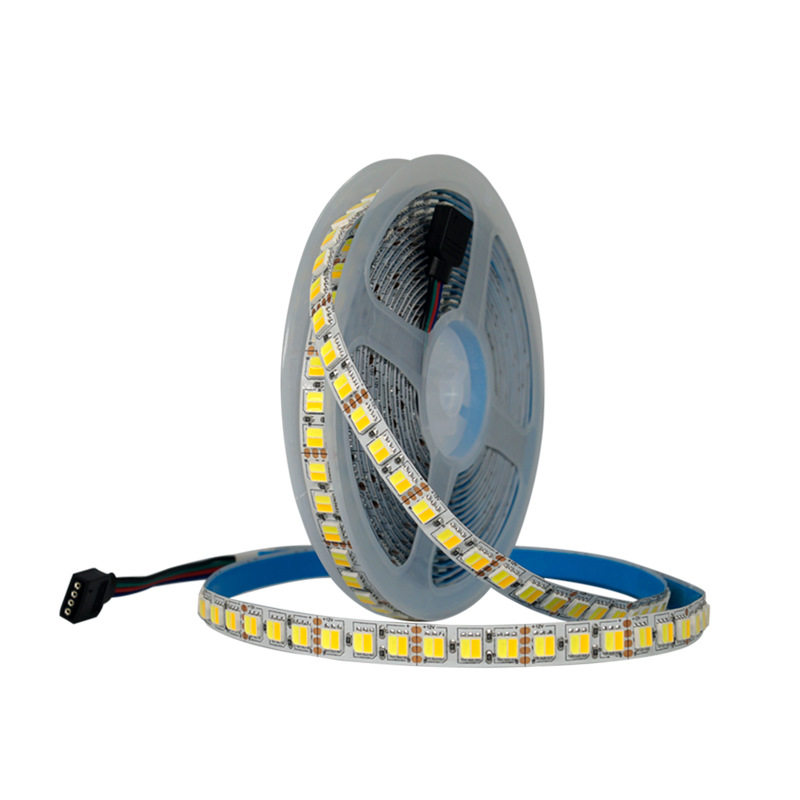

120led/m SMD5050 2in1 Brightness and Color Adjustable Flex LED Tape
120led/m SMD5050 2in1 Brightness and Color Adjustable Flex LED Tape
Overview:
120led/m SMD5050 2in1 Brightness and Color Adjustable Flex LED Tape, High density, 12V/24V, 10mm white PCB, RA80, 2700K to 6500K; It is available in pure white, warm white and cool white. 6led (24v dc) as a group and can be cuttable by different length which has the 3M/blue adhensive tape at the back of the strips.
Data sheet:
| Product: | 120led/m SMD5050 2in1 Brightness and Color Adjustable Flex LED Tape |
| Item No.: | ADY-5050-CTA120-1024 |
| LED: | SMD5050 warm white and cold white 2in1, 120led/m, 120x WW, 120x CC |
| View angle: | 120° |
| Waterproof Grade: | IP20,IP50,IP65,IP66/IP67/IP68 |
| Input voltage: | 24V |
| Power: | 19.2w/m |
| Size: | 5000x10x2.0(mm), 5m/roll |
Features
> High-bright 2 in 1 high lumen 5050 SMD LED.
> Color temeprature adjustable from 2700K to 6500K.
> Beam angle:120deg.
> Double layer 2 oz pure copper FPCB.
> 3M double side tape on backside for easy installation.
> 3 years warranty.
Application:
> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating
Remark:
> 100% Brand New.
> Super bright 5050SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Photos
Order info:
| SN | Model Number | LED | PCB Width | Voltage | Power | Waterproof |
| 1 | ADY-5050-CTA120-1012 | 120led/m | 10mm | 12V | 19.2w/m | IP20/IP65/IP67 |
| 2 | ADY-5050-CTA120-1024 | 120led/m | 10mm | 24V | 19.2w/m | IP20/IP65/IP67 |
What is a CCT LED strip?:
Here at ADY, you’ll find a wide range of CCT Tunable LED strip lights, designed with two dedicated white color temperatures which can be blended and individually selected. These strips are perfect for transforming a space. They give you full control so you can change the look of a room depending on your mood.
How does CCT work?
What does correlated color temperature, CCT, mean? Color temperature defines the color appearance of a white LED. CCT is defined in degrees Kelvin; a warm light is around 2700K, moving to neutral white at around 4000K, and to cool white, at 5000K or more.
The flexible two-color LED light band (warm white/daylight) has been specially designed for the variable white color in a single application.
Warm white and daylight LEDs are mounted alternately and can be individually controlled by our controller
Typically, you must install both warm white and daylight LED strips in parallel if you need both colors in the same application or project. This means excessive extension cords and the need for a more powerful power supply. Now you have a smarter and easier choice: LED strips of light give you any desired white color temperature. The color temperature can be set between 3000 K (when all warm white LEDs are lit) and 6500 K (when all daylight LEDs are lit) by blending these two colors.
You save a lot of space, time, and costs compared to installing two white light sets
This dual-color temperature strip is perfect for any area where the color temperature of the lighting needs to be adjusted, including TV/movie lighting, kitchens, base units, handrails, pedestals, recesses, shelves, cabinets, shadow joints, and railings.
