3oz Thick FPCB Good 120led/m SMD2835 Flex LED Strip
Focus keyphrase: 3oz
1 LED 1 Cut Flex LED strips:
| Product: | 3oz Thick FPCB Good 120led/m SMD2835 Flex LED Strip |
| Item No.: | ADY-2835-120-0824A3 |
| LED: | 120 x SMD2835 |
| View angle: | 120° |
| Cut length: | 8mm FPCB, 6LED/cut, |
| Input voltage: | 24V |
| Power: | 4.8-12w/m |
| Size: | 5000x8x1.5(mm), 5m/roll |
Features:
1) High CRI up to 96 (High CRI version).
2) High efficiency of 160lm/w (High-efficiency version).
3) High output up to 3000 lm/m (CRI80+ version).
4) Available in 5V, 12V and 24V.
5) Fully dimmable.
6) The width of FPCB is available in 3mm, 5mm, 8mm, 10mm, and the other width.
7) 50,000-hour lifespan (8 hours/day for 17 years);
8) 3-year warranty.Spectrum Test Reports of ADY-2835-120-0824A3 LED strips:

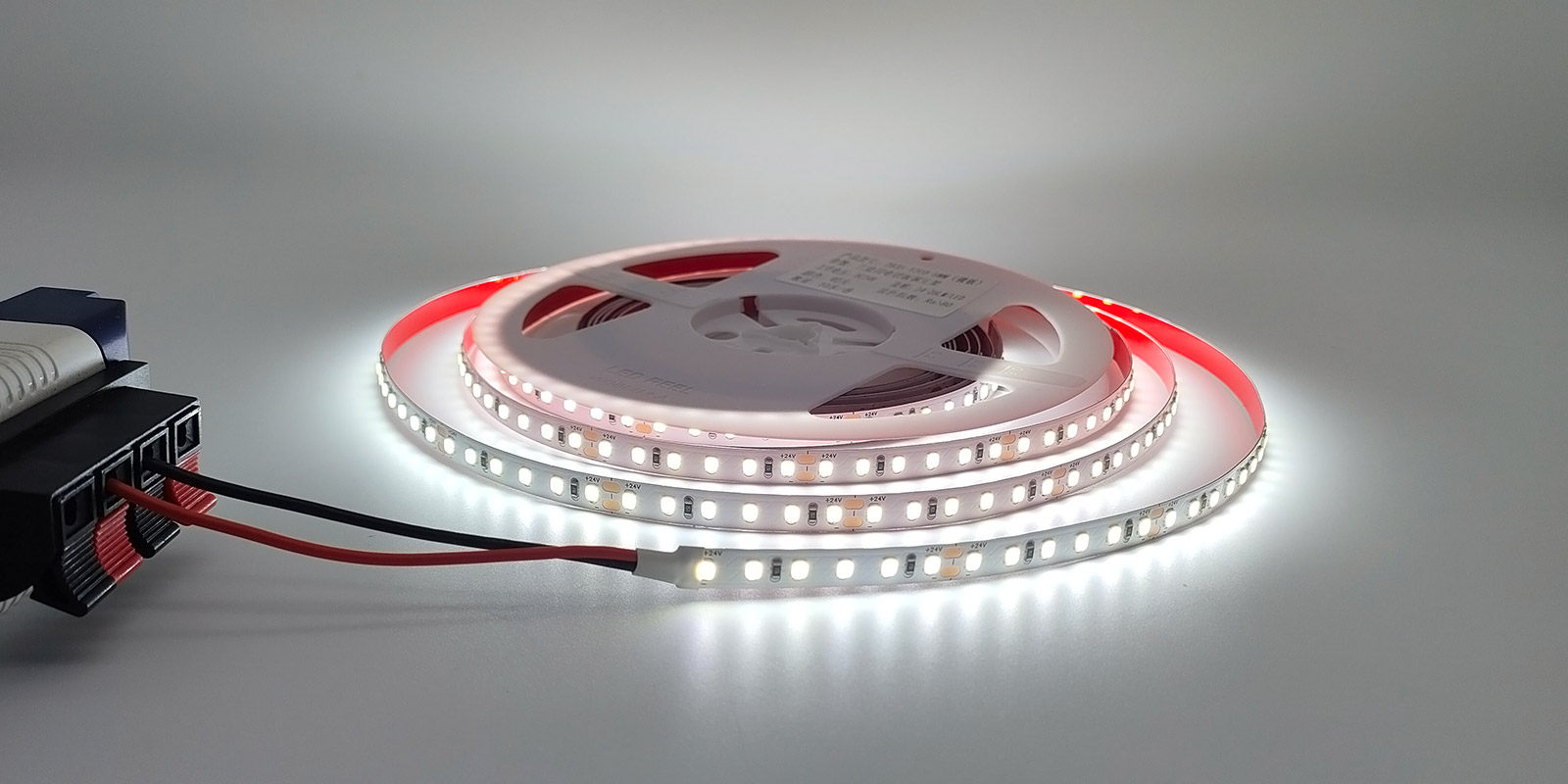

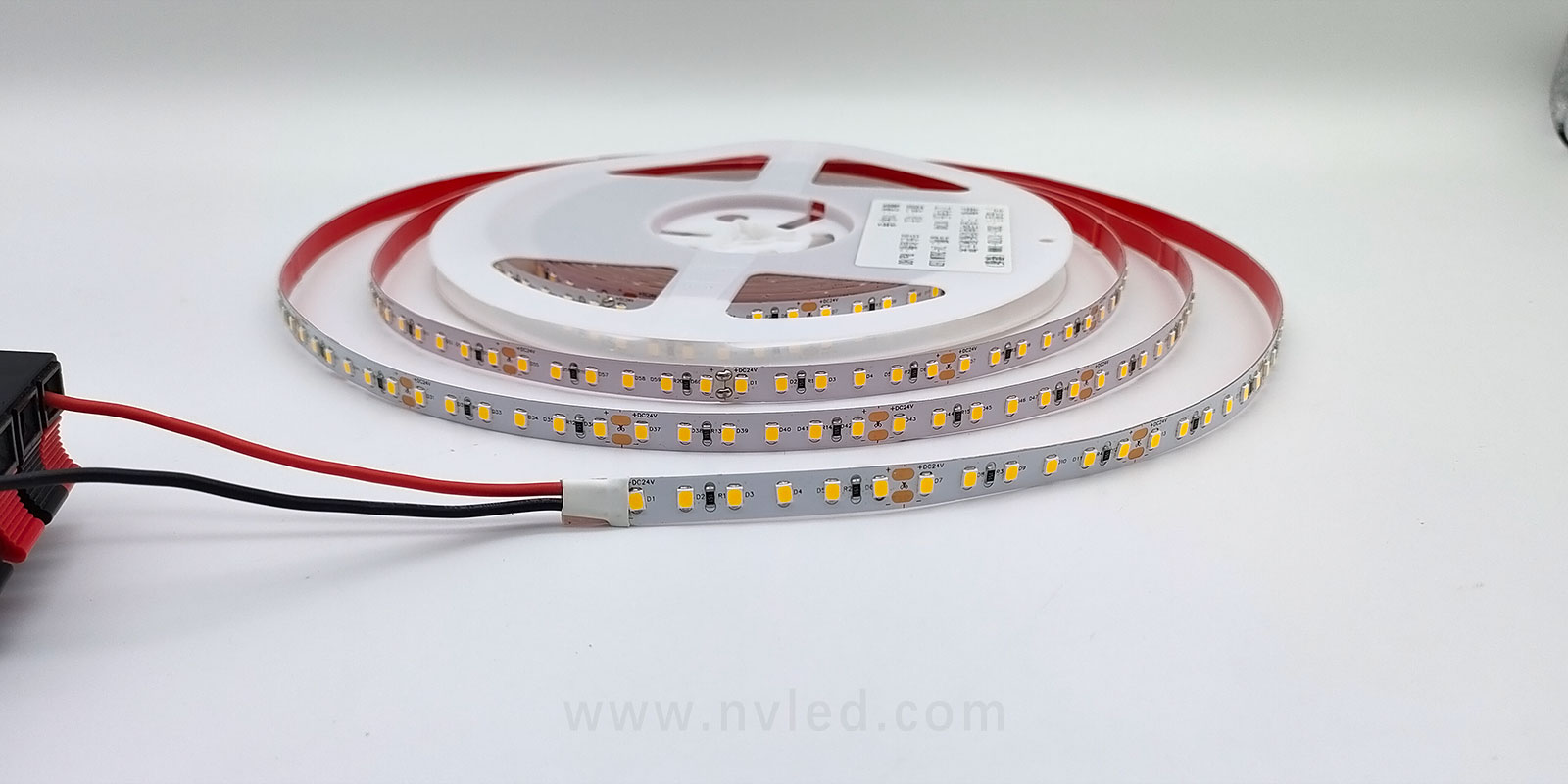

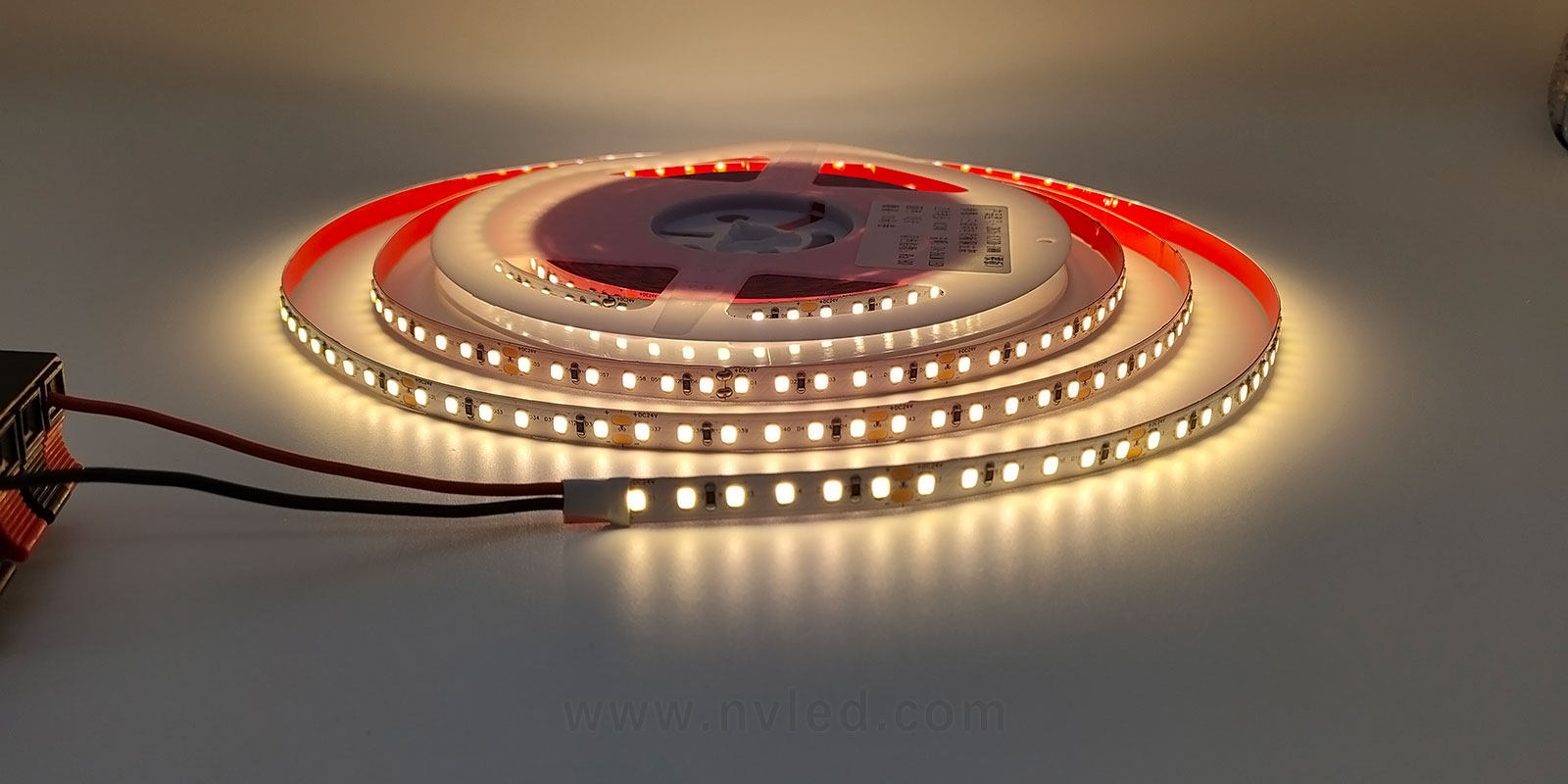

Photos show:
You are free to order the following SMD 2835 Flex led strips:
| SPN | LED | LED/m | CRI | Color | Voltage | w/m | PCB | Cut Length | Waterproof |
| ADY-2835-120-0524DC | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 6 | 5mm | 8.33mm | IP20 |
| ADY-2835-120-0812DC | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 12V | 6 | 8mm | 8.33mm | IP20 |
| ADY-2835-120-0824DC | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 6 | 8mm | 8.33mm | IP20 |
| ADY-2835-120-0812XX | SMD2835 | 120 | — | 12 colors | DC 12V | 6 | 8mm | 25mm | IP20 |
| ADY-2835-120-0824XX | SMD2835 | 120 | — | 12 colors | DC 24V | 6 | 8mm | 50mm | IP20 |
| ADY-2835-120-0824M20 | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 6 | 8mm | 41.7mm | IP20 |
| ADY-2835-120-0824P7 | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 6 | 8mm | 50mm | IP67 |
| ADY-2835-120-0824P8 | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 6 | 8mm | 50mm | IP68 |
| ADY-2835-120-0824A3 | SMD2835 | 120 | 80/90 | WW | NW | CW | DC 24V | 10.8 | 8mm, 3oz | 50mm | IP20 |
| ADY-2835-180-1024A3 | SMD2835 | 180 | 80/90 | WW | NW | CW | DC 24V | 14.4 | 10mm, 3oz | 33.3mm | IP20 |
1) Optional: RA80, RA90, RA95, 1800K to 6500K, 5V/12V/24V/36V/48V, IP20, IP65, IP67, IP68
2) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.
