Video of the RA80 3500K T0815B Silicone Tube Neon LED Light
Overview:
RA80 3500K T0815B Silicone Tube Neon LED Light, Size 8mm x 15mm, inside with 120led/m SMD2835 flex led strip, 24V, 9.8w/m, 6mm width white PCB, RA80, 3500K, nice apperance finished; It is available to build inside all led strip with 6mm PCB, such as SMD2835, SMD3528, addressable SK6812-3535-RGB, programmable WS2813-5050-RGB, and so on.
Data sheet:
| Product: | RA80 3500K T0815B Silicone Tube Neon LED Light |
| Item No.: | WTP-0815-2835X120-24V |
| LED: | SMD2835-White, 120led/m |
| View angle: | 170° |
| Waterproof Grade: | IP67 |
| Input voltage: | 24V |
| Power: | 9.0w/m |
| Size: | 5000x8x15(mm), 5m/roll |
Application:
> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

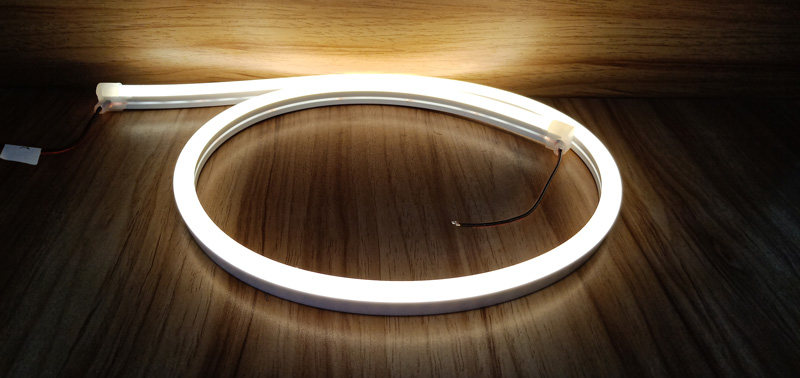

Photos

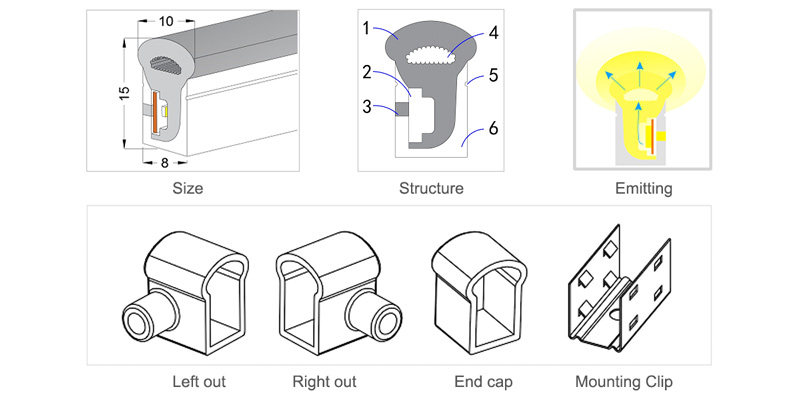

Size:
Spectrum Test Report
