CLK DAT Double SPI 30 60 144 Sk9822 Digital Led Strips
CLK DAT Double SPI 30 60 144 Sk9822 Digital Led Strips
Overview: CLK DAT Double SPI 30 60 144 Sk9822 Digital Led Strips, Control IC built inside the LED, 30/60/72/96/144pixel/m, 5V, 0.3w/led, 10 to 12mm white or black PCB, 15cm JST connector;
Regular Product list: |
||||||
| SN | Model Number | LED Qty | PCB Width | Voltage | Power | Note |
| 1 | WTP-9822X30-5V | 30led/m | 10mm | 5V | 9.0w/m | IP20/IP65/IP67/IP68 |
| 2 | WTP-9822X60-5V | 60led/m | 10mm | 5V | 18.0w/m | IP20/IP65/IP67/IP68 |
| 3 | WTP-9822X72-5V | 72led/m | 10mm | 5V | 21.6w/m | IP20/IP65/IP67/IP68 |
| 4 | WTP-9822X96-5V | 96led/m | 10mm | 5V | 28.6w/m | IP20/IP65/IP67/IP68 |
| 5 | WTP-9822X144-5V | 144led/m | 12mm | 5V | 43.2w/m | IP20/IP65/IP67/IP68 |
Features:
1) Addressable DC5V SK9822 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) SK9822 LED Chip has 4 Wires input and output: Data, Clock, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

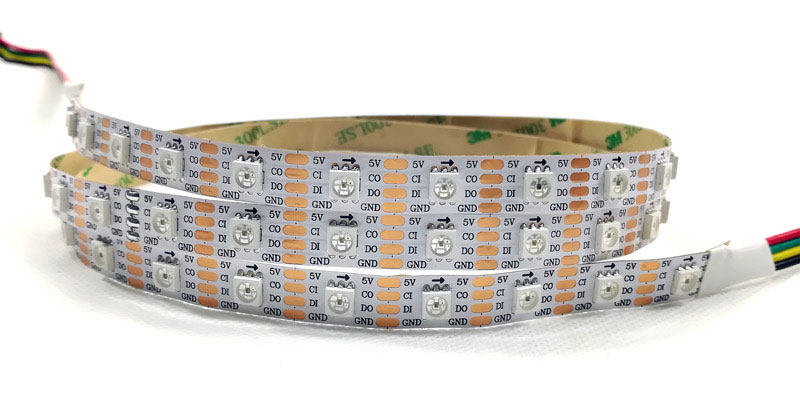

30 led/m SK9822 Digital led strips

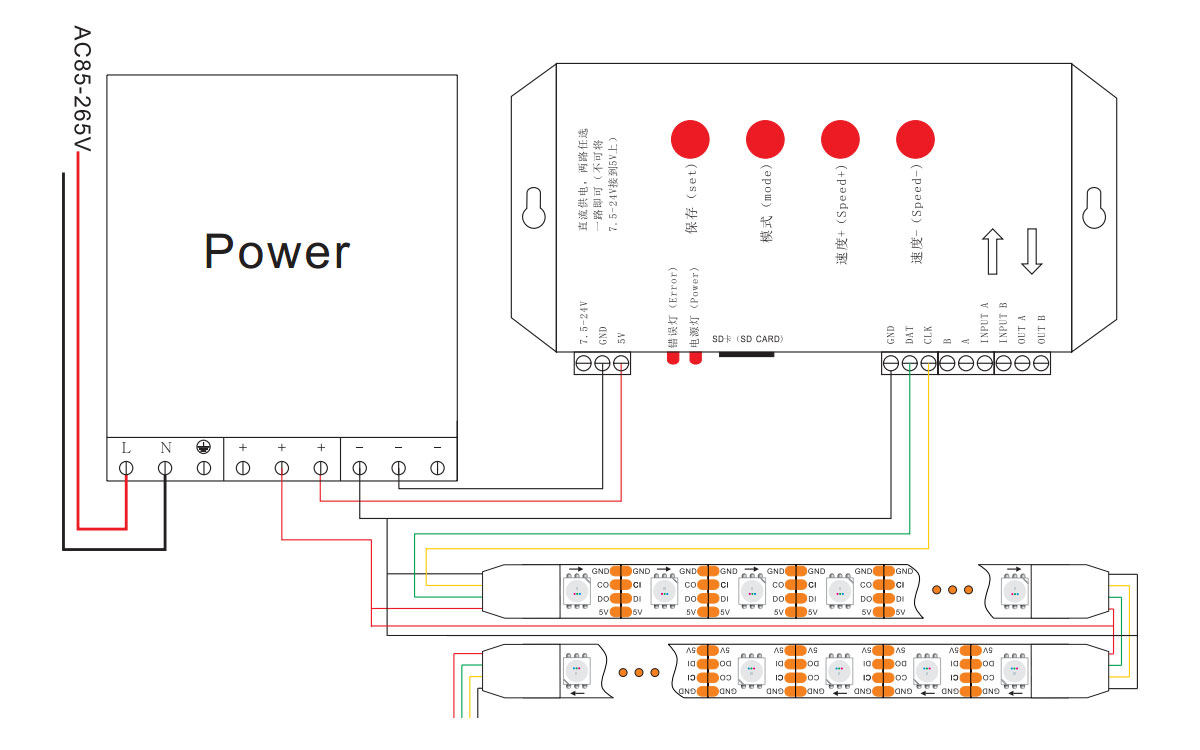

Diagram:
60 led/m SK9822 Digital led strips

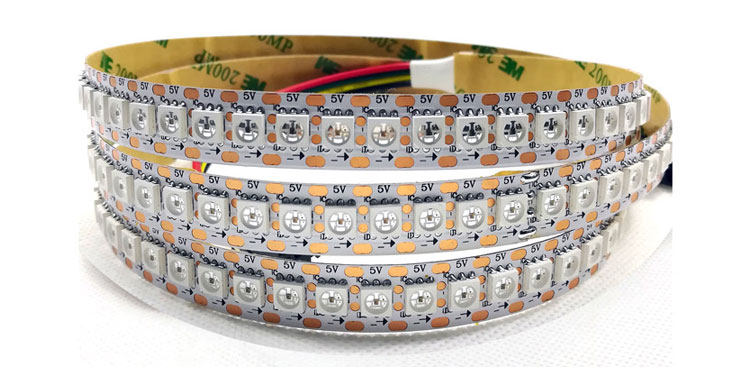

144 led/m SK9822 Digital led strips
