60pcs/string DC12V WS2815 RGB Module Full Color Addressable LED Pixel Light With Heatsink Input 5cm Wire Spacing With All Black Wires
Main feature
- one pixel damaged will not affect the other LEDs’working
- Dual signal wires version, signal can jump to transfer
- Same protocol as WS2811S but with Dual-signal wires,so can be controlled by the same WS2811 controllers
Specification
| Part name: | WS2815 LED Strands |
| Color: | Full rgb color,24bit,256 gray scale |
| LED Qty: | WS2815-RGB 5050 SMD RGB LED, 20led/m |
| Electrical: | DC12V, 60mA, 4.8w/m |
| Dimension: | 3000 x 10 x 3 (mm) |
| Viewing angle: | 120° |
| Waterproof: | IP20 / IP67 |
| Standard wire length: | 5cm wire spacing with all black wires |
| Standard connection: | DC12V+, DI, BI, GND |
| Lifespan: | 35000 hours |
| Operation temperature: | -40° to +50° |
| Warranty: | 3 Years |

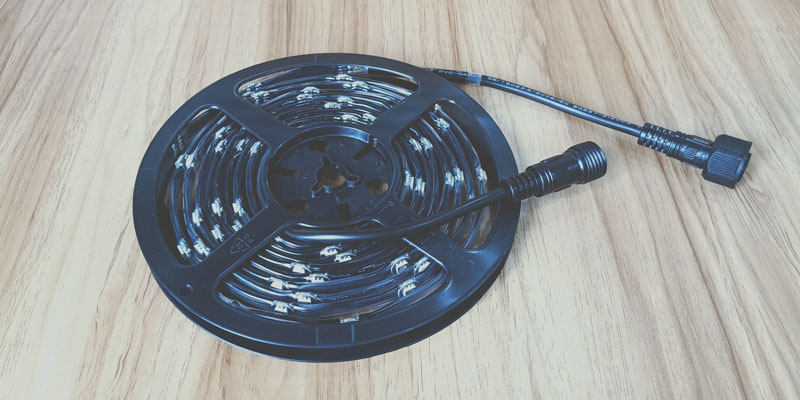

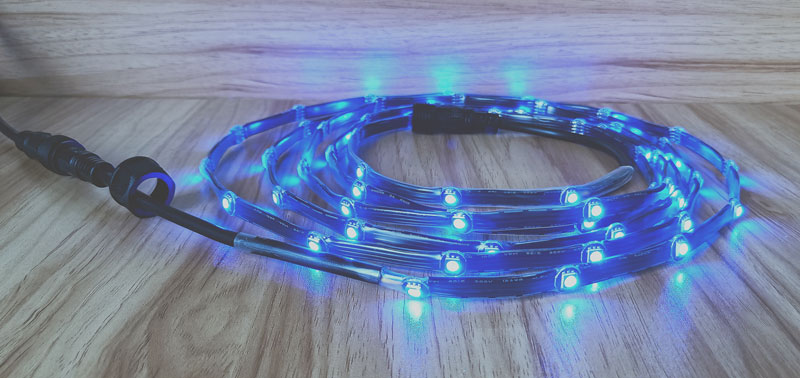

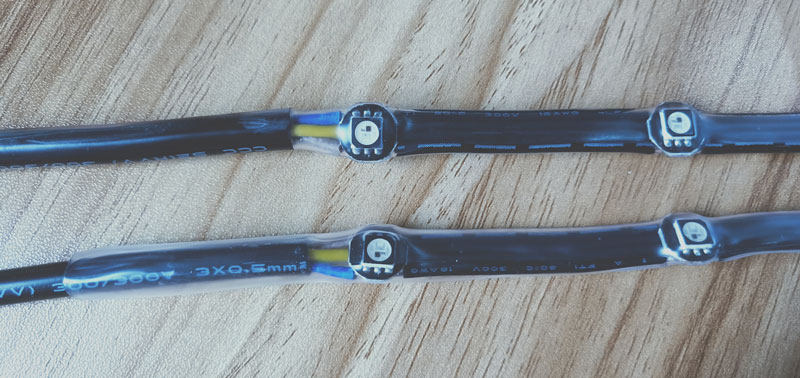

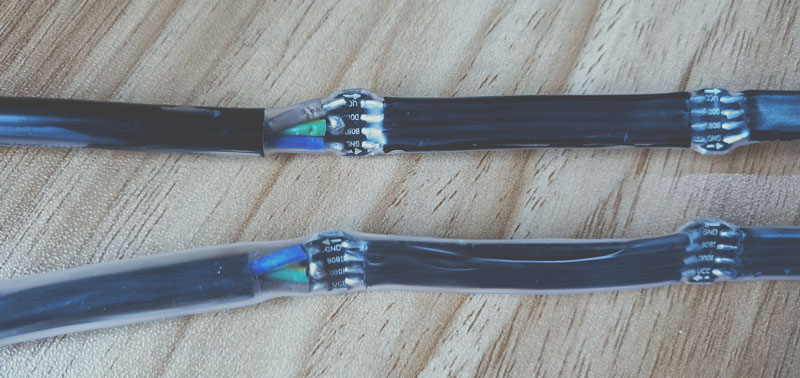

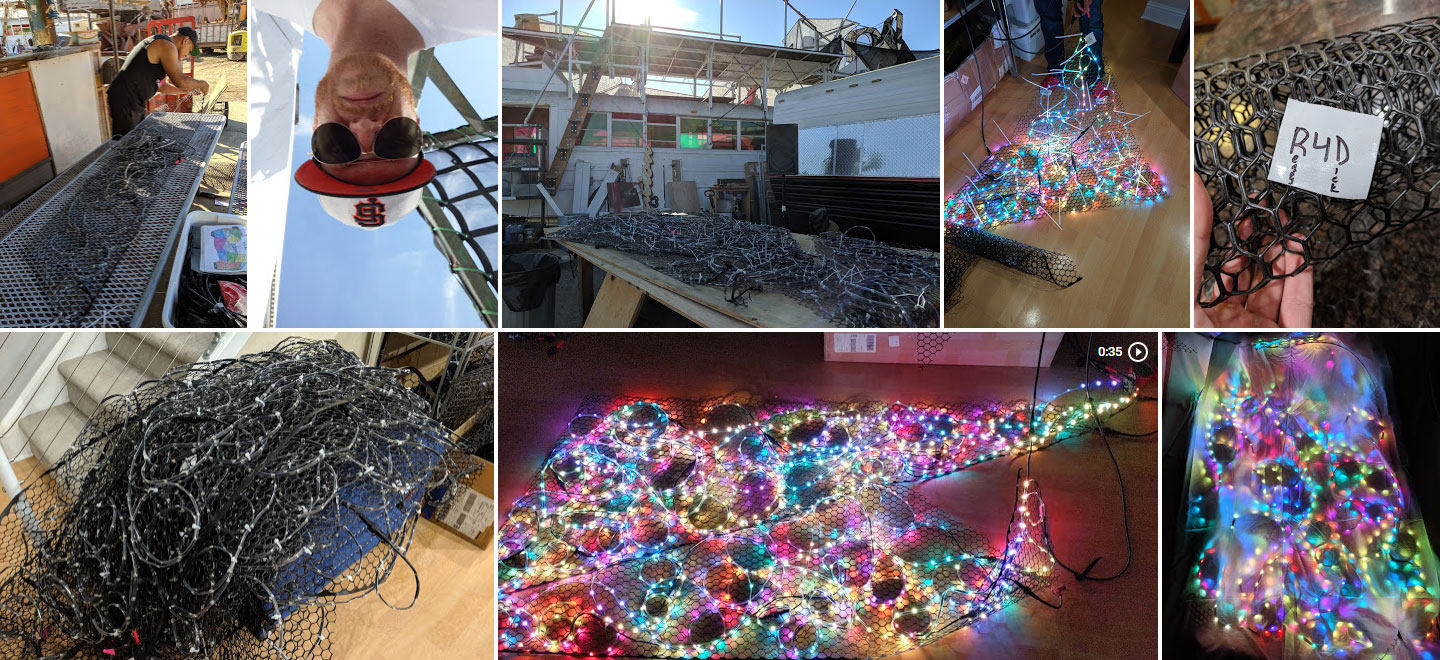

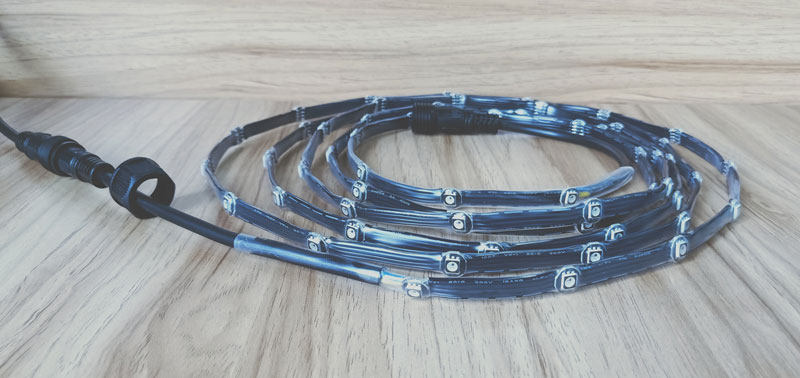

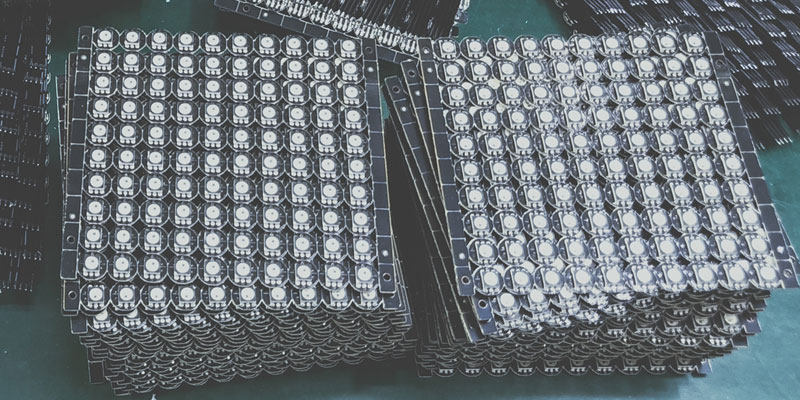

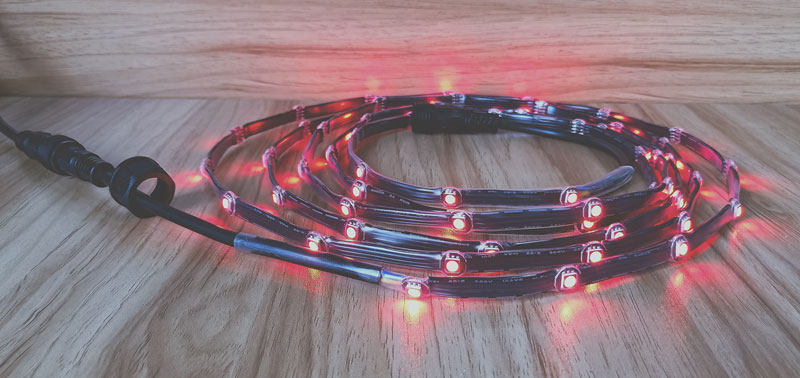

Photos show
