NEW High Density Small Pitch 3mm Width 200led/m WS2812 2020 Digital LED Strip
3mm Width 200 Pixels/m LED Strip video show:
WS2812-2020-RGB LED is a small size digital full-color built-in IC SMD, which has one SPI data and can be controlled by most SPI LED Controllers.

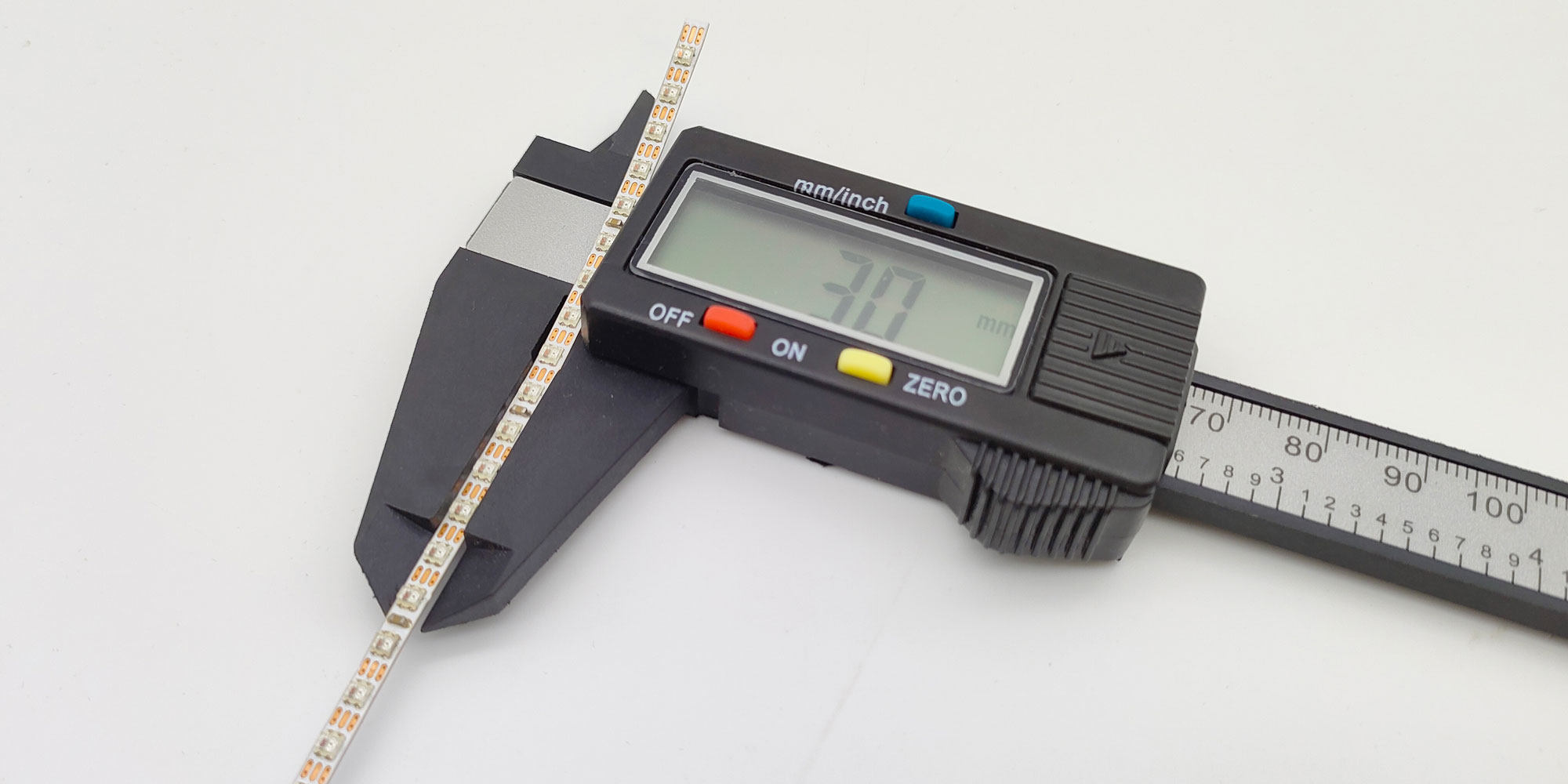

> 3mm width Super Narrow Flexible PCB
> High density, 200led/m, 200pixels/m, individual addressable
> Each LED is cuttable

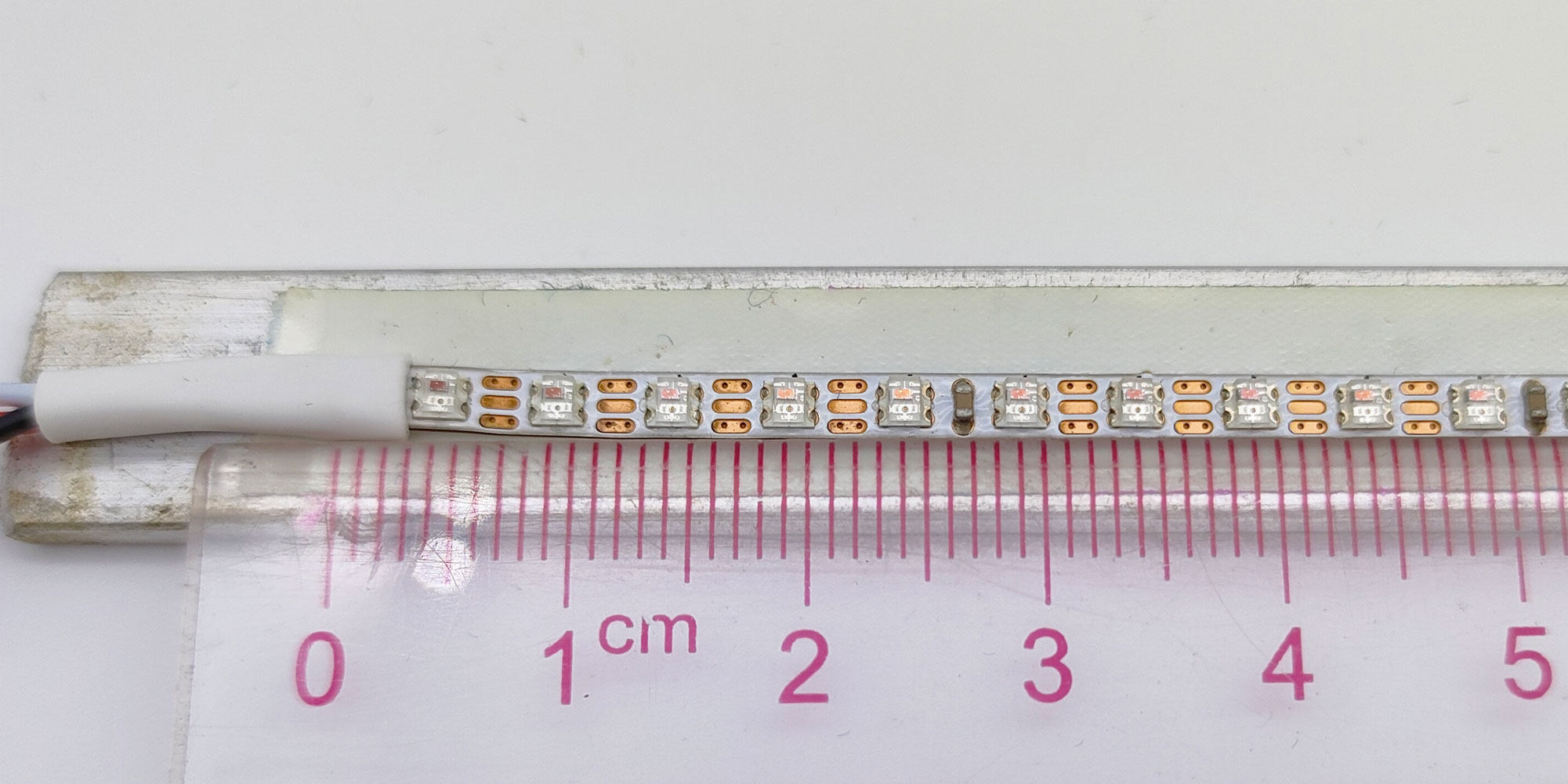

> 5mm Small pitch
Specification:
| Product Name: | NEW High Density Small Pitch 3mm Width 200led/m WS2812 2020 Digital LED Strip |
| Item No.: | ADY-2812-2020-200-0305 |
| LED Source: | WS2812-2020-RGB, 200led/m, 200pixels/m |
| PCB | 3mm white FPCB |
| IC Chip: | WS2812 |
| Pins: | 3 Wires = 5V+, DATA, GND |
| View angle: | 170° |
| Voltage & Power: | DC 5V, 20w/m |
| Size: | 2000x3x1.5(mm), 2m/roll or according to your requirements |
| Controller: | SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc… |
Packing: 0.4 meter/pcs
Features:
- Firstly: Individual controlable / addressable / programmble
- Secondly: High density, 200 pixels per meter
- Thirdly: Mini Size, 3 mm white FPCB
Lastly: Small picth, 5 mm pitch
Wiring Diagram:
Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip
Features of the SK6812-2020-RGB LEDs:
WS2812C-2020-V1 is an intelligent externally controlled LED light source that integrates a control circuit and light-emitting circuit; its appearance adopts the latest molding packaging technology, and the IC and light-emitting chip are packaged in a 2020 package size. It is a pixel; the pixel contains an intelligent digital interface data latch signal shaping and amplifying drive circuit, as well as a high-precision internal oscillator and a programmable constant current control part, which effectively ensures that the color of the pixel light is highly consistent.
The data protocol adopts the single-line return-to-zero code communication method.
Port scanning frequency up to 2KHz, no flicker phenomenon will appear under the capture of the high-definition camera, very suitable for high-speed movement Use of the product; RESET time of more than 280μs, the interruption will not cause a false reset, can support lower frequency, cheap MCU; LED has low voltage drive, environmental protection, and energy-saving, high brightness, large scattering angle, good consistency, The advantages of ultra-low-power and ultra-long life. By integrating the control circuit on the LED, the circuit becomes simpler, the volume is smaller, and the installation is easier.
