12VDC 60 Pixel/m GS8208 Individual Addressable Digital LED Strips

12VDC 60 Pixel/m GS8208 Individual Addressable Digital Led Strips

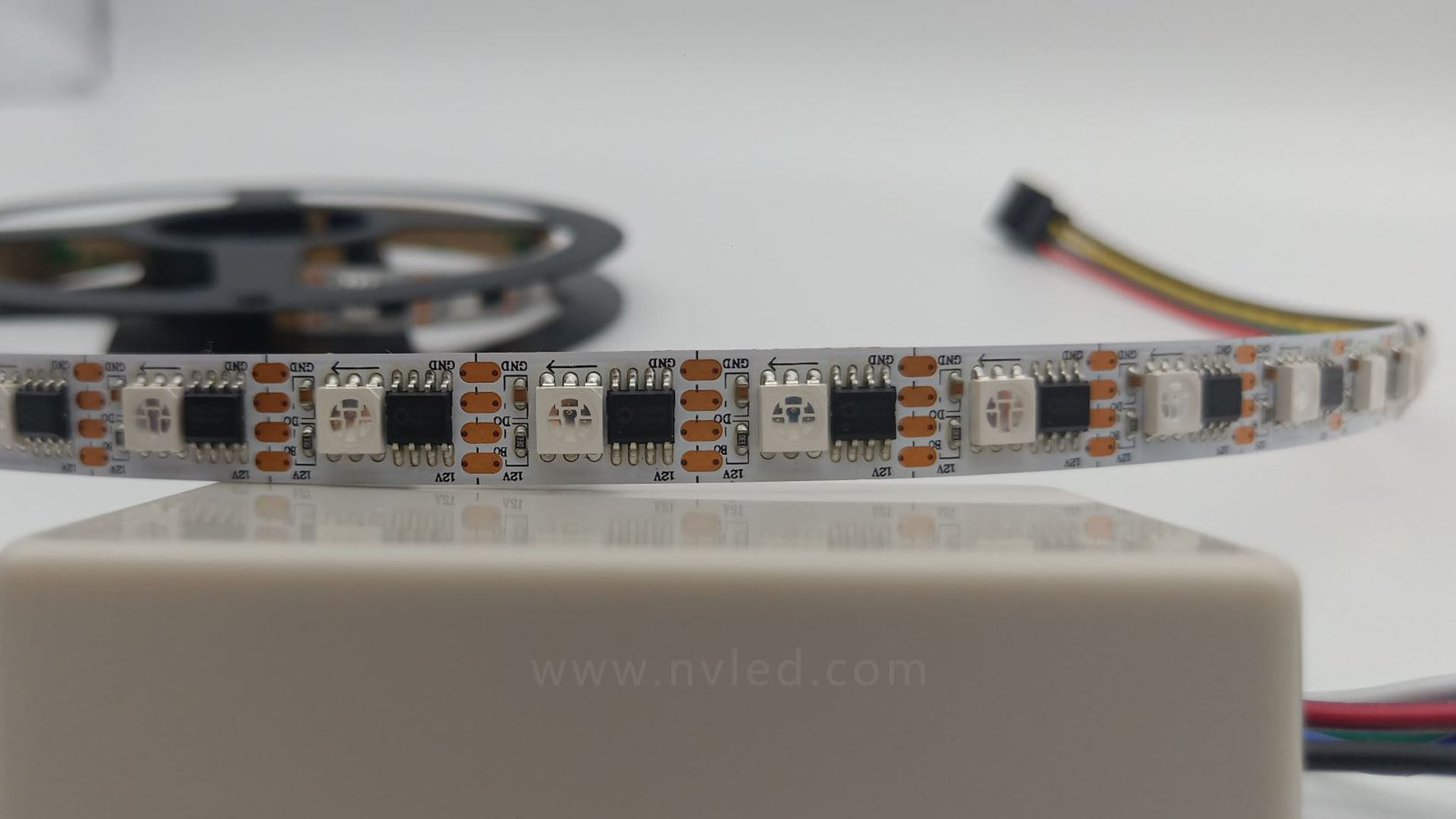

GS8208 Individual Addressable and breakpoint continue Flex led strips, 60led/m, Control IC outside the LED, much stible, 60pixel/m, 12V DC, 14.4w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

  Product:   12VDC 60 Pixel/m GS8208 Individual Addressable Digital Led Strips
  Item No.:    ADY-8208-60-1012
  LED:    SMD5050-RGB, 60led/m
  View angle:   120°
  IC Chip:   GS8208
  Input voltage:   12V DC
  Power:   14.4w/m
  Size:   5000x10x2.0(mm), 5m/roll


1) Addressable DC12V GS8208 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;

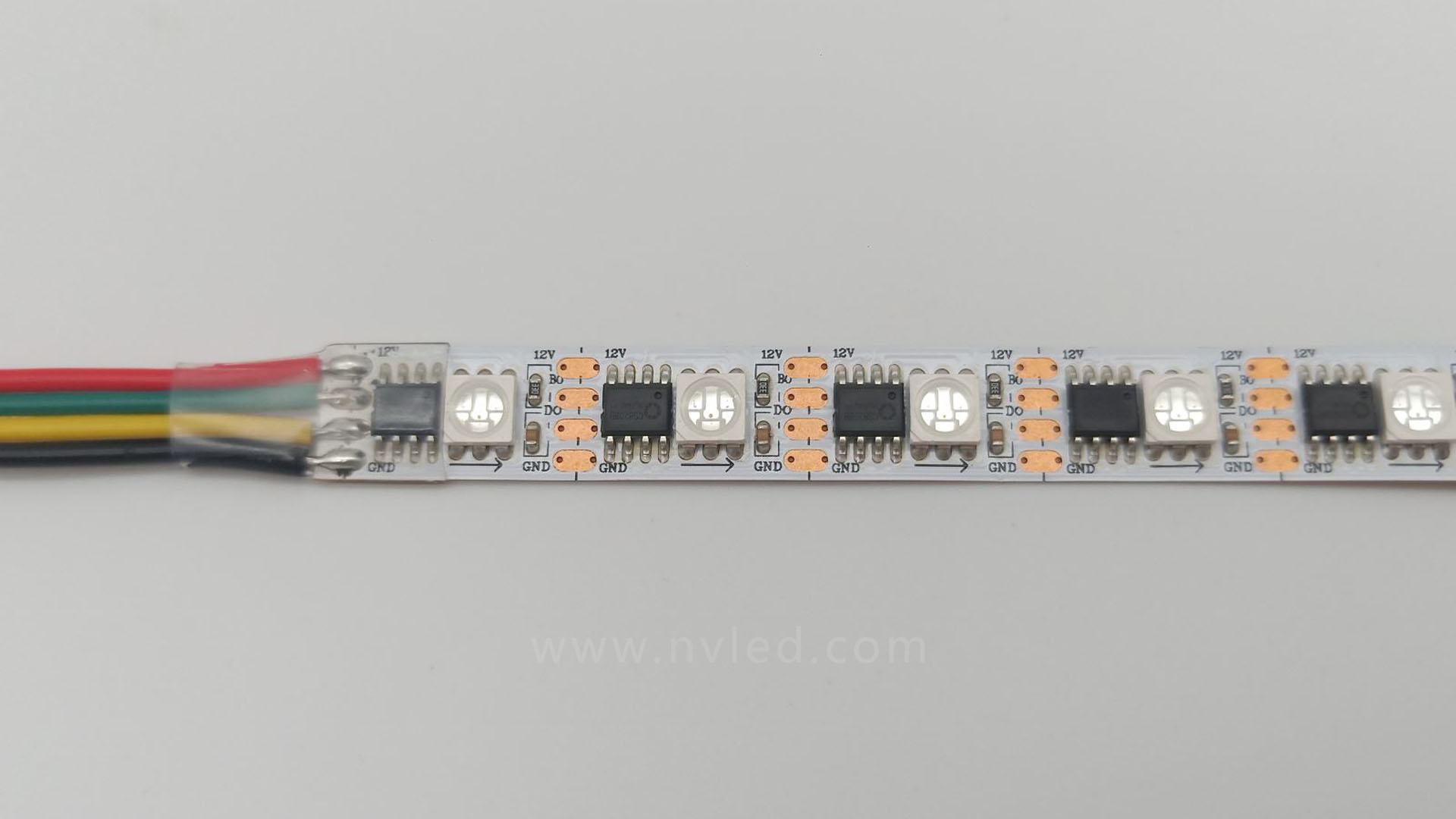

3) Absolutely addressable, each IC outside a SMD5050-RGB LED;
4) GS8208 has 4 Wires input and output: Datax2, GND and Power+; one LED died, the rest LEDs can keep working;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram ws2815

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting


1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty
Pixel Qty
PCB Width
1 ADY-2815-30-1012 30led/m 30 10 W/B 12V 6.6 5
2 ADY-2815-60-1012 60led/m 60 10 W/B 12V 13.2 5
3 ADY-2815-96-1012 96led/m 96 10 W/B 12V 21.2 5
4 ADY-8208-60-1012 60led/m 60 10 W/B 12V 14.4 5


12VDC 60 Pixel/m GS8208 Individual Addressable Digital Led Strips
Individual Addressable Digital Led Strips
breakpoint continue Flex led strips

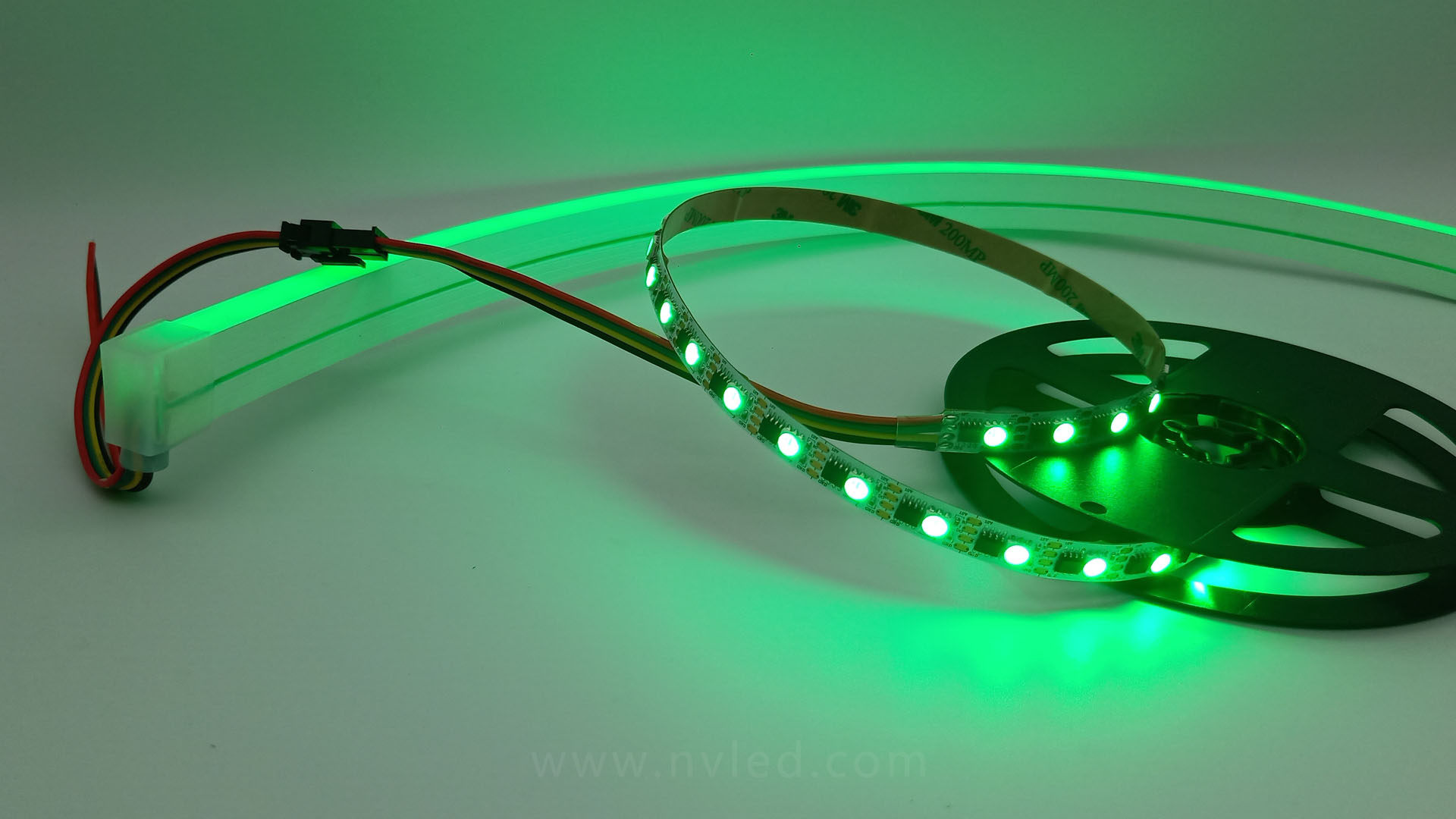

Suitable for NEON tubes: 1220, 1023, 1616, etc
