Recommend Breakpoint Continue 10/20 Pixels/m LB1934 Addressable Pixel LED Strips
Overview:
LB1934 Addressable Pixel LED Strips, 60led/m, 10/20pixels/m, Control IC built outside, 12V/24V DC, 14.4w/m, 10mm white or black PCB, with 3M adhesive tape backing, IP20, 5m/roll, 15cm JST connector; You can customize it to be linear LED lights with Aluminum profiles.
Technical parameter:
| Product Name: | Breakpoint Continue 20 Pixels/m LB1934 Addressable Pixel LED Strips |
| Product Model: | ADY-1934-60-1012 |
| PCB: | 10mm, white PCB, better heat dissipation and longer lifespan |
| LED Type: | SMD5050-RGB |
| LED Quantity: | 60LED/m, every 3 LEDs separately controlled |
| Power Consumption: | DC12V, 14.4w/m, |
| Packing & Dimensions: | 5000 x 10 x 2 mm / 5 meters per roll in an LED anti-static aluminum foil bag |
| Working Environment: | -20 to +45℃; Relative Humidity: 0 to 95% (no cold condensation) |
| Warranty: | 2 Years |
Order info:
| SN | Model Number | LED and Pixel | PCB Width | Voltage | Power | Waterproof |
| 1 | ADY-1934-60-1012 | 60led/m, 20Pixels/m | 10mm | 12V | 14.4w/m | IP20/IP65/IP67 |
| 2 | ADY-1934-60-1024 | 60led/m, 10Pixels/m | 10mm | 24V | 14.4w/m | IP20/IP65/IP67 |

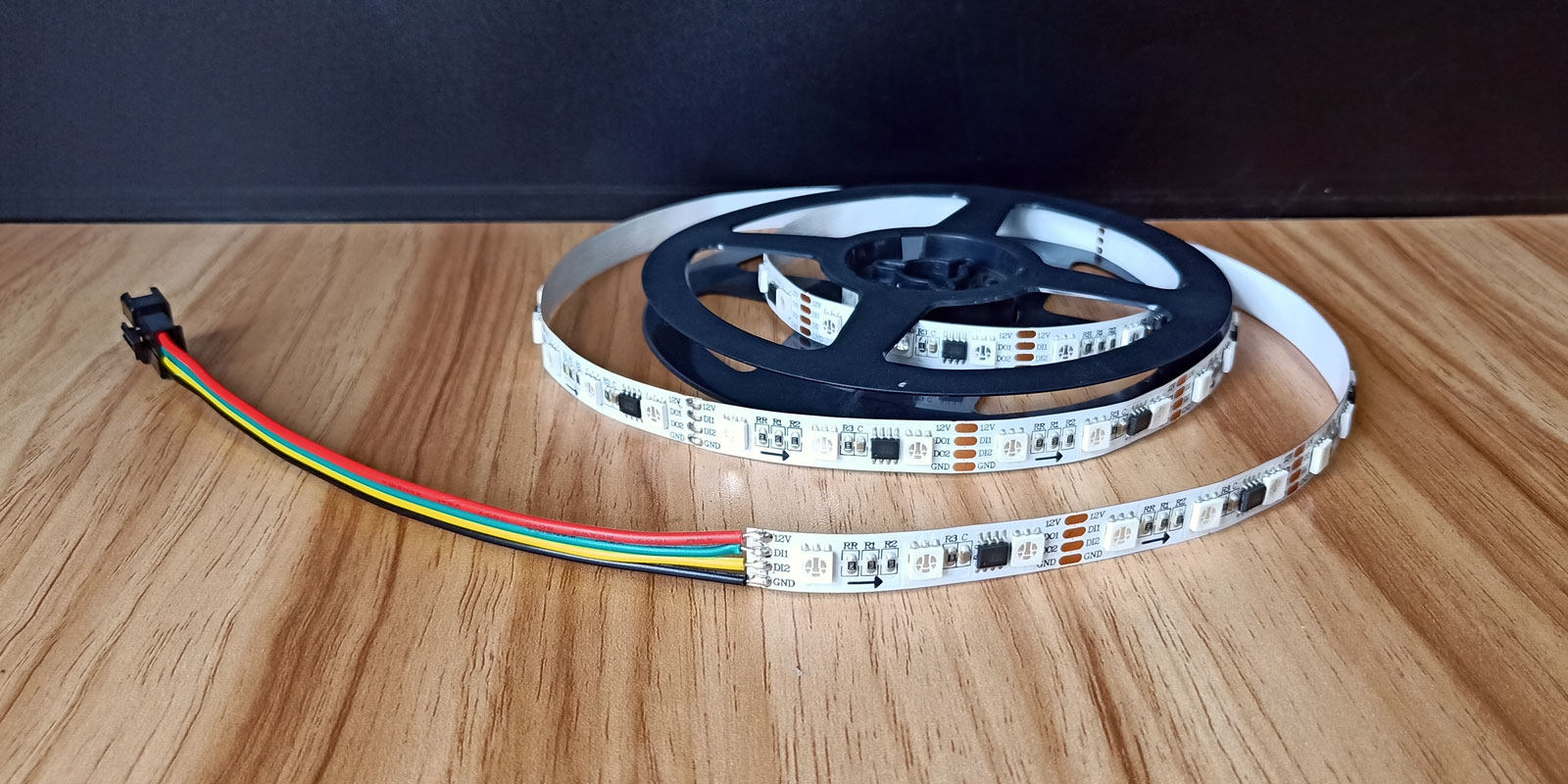

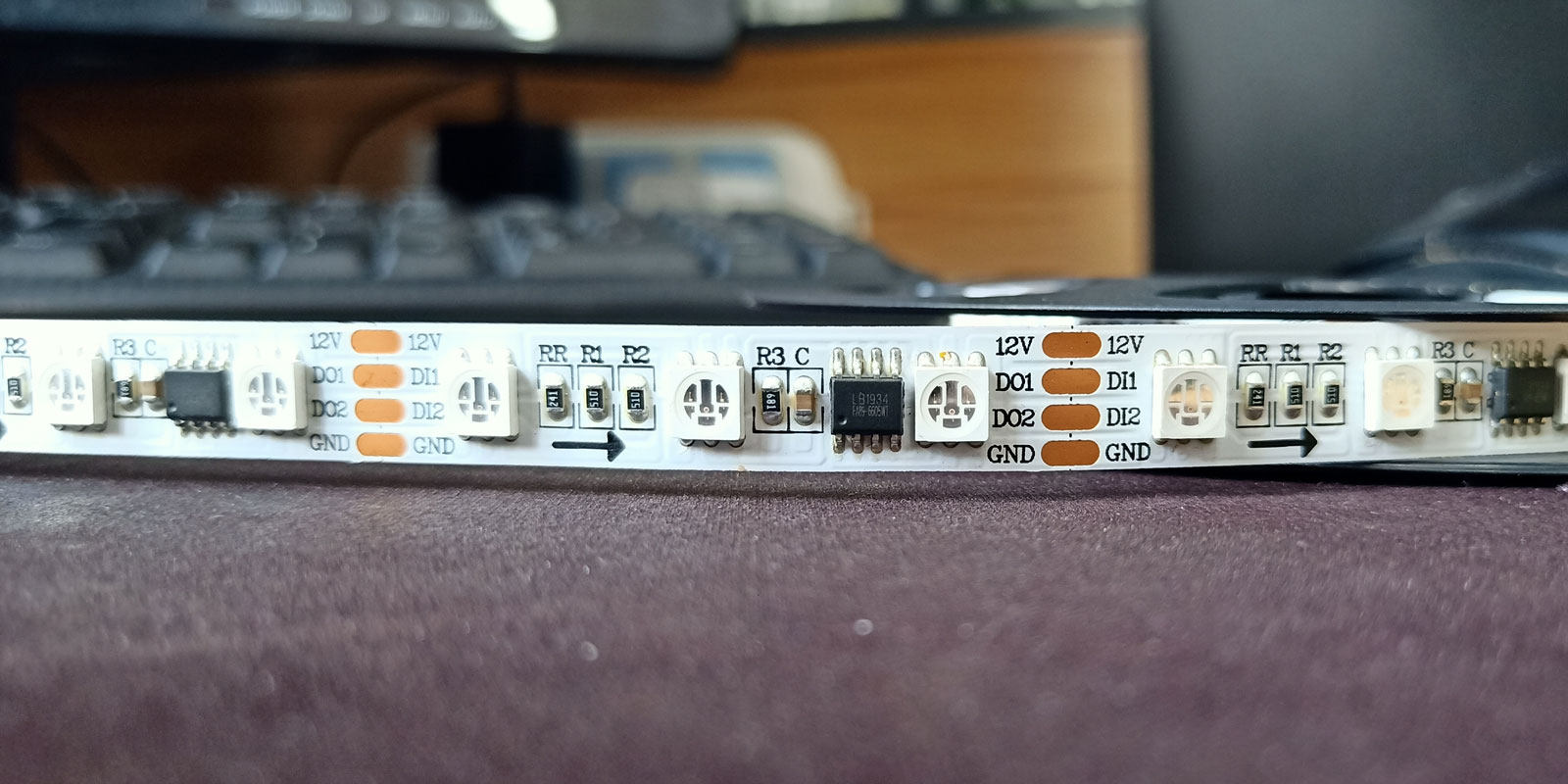

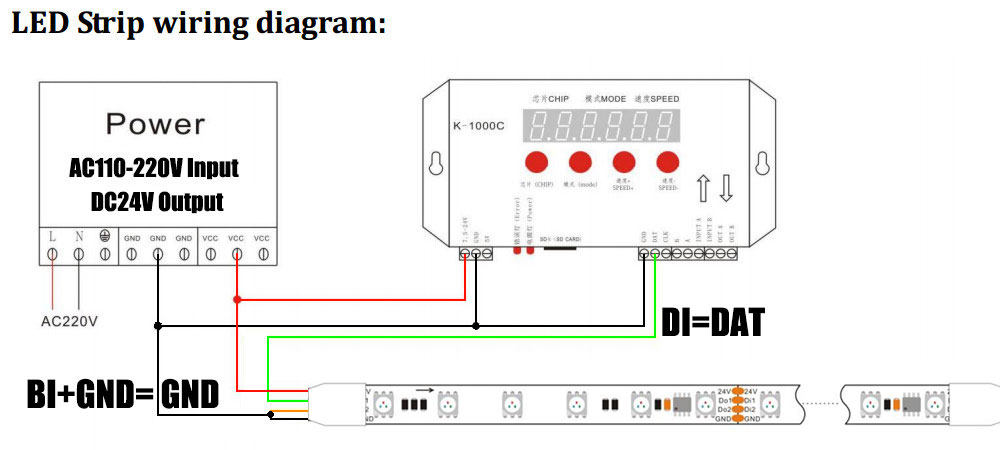

Pictures:




About LB1934:
LB1934 is a special circuit for a single-line three-channel LED constant current drive. It can switch inputs through two-channel digital interfaces (DIN, FDIN) and cascade with the DO port. The external controller can control the chip with a single line. The chip integrates MCU single-line dual-channel digital interface, data latch, LED constant current drive, PWM brightness control, and other circuits. The VDD pin integrates a 5V voltage regulator tube, and there are few peripheral devices. It is suitable for LED decorative products such as guardrail tubes and point light sources. This product has excellent performance and reliable quality.
