Promotional Price $1.5/meter 5.5mm Width FPCB 60 Pixels WS2812B 5050 Digital LED Strips

Video | 5.5mm width 60 Pixels/m WS2812B-5050-RGB Digital LED Strips

Application:

LED Strip wiring diagram ws2812b 2020
LED Strip wiring diagram ws2812b 5050

Overview:

5.5mm Mini FPCB 60 LED/m WS2812B-5050 Full-color Digital LED Strips, WS2812B Control IC built inside the LED, LED Size 5050, LED Name WS2812B-5050-RGB, 60led/m, 60pixel/m, 5V, 18w/m, 5.5mm white or black PCB, 15cm JST connection;

Individually controllable, Gray level 256, fast data transmission, fast picture refresh, with control system implementation, monochrome, gradient, water, horse, chase, dream, collision, text, numbers, English, pictures, animation, video, many effects;

Data sheet:

  Product:
  5.5mm Tiny 60 Pixels WS2812B Digital LED Strips
  Item No.:    ADY-2812-60-0505
  LED:    WS2812B-SMD5050-RGB, 60led/m
  View angle:   120°
  IC Chip:   WS2812B
  Input voltage:   5V
  Power:   18w/m
  Size:   2000×5.5×2.2(mm), 5m/roll

Features

1) Addressable DC5V WS2812B LED Strips; Long life span 50,000+ hours;
2) 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) WS2812B has 3 Wires input and output: Data, GND and Power+; one LED died, the next LEDs died too;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: IP20/IP65/IP67/IP68)

 Model Number  LED/m  Pixel/m  PCB Width  PCB Color  Power  Packing
  ADY-2812-60-0505  60  60  5.5mm  W/B  5V,18w/m  5m/reel

Photos:

PCB width is 5.5mm
PCB width is 5.5mm

One LED one cut, indivadual addressable
One LED one cut, indivadual addressable

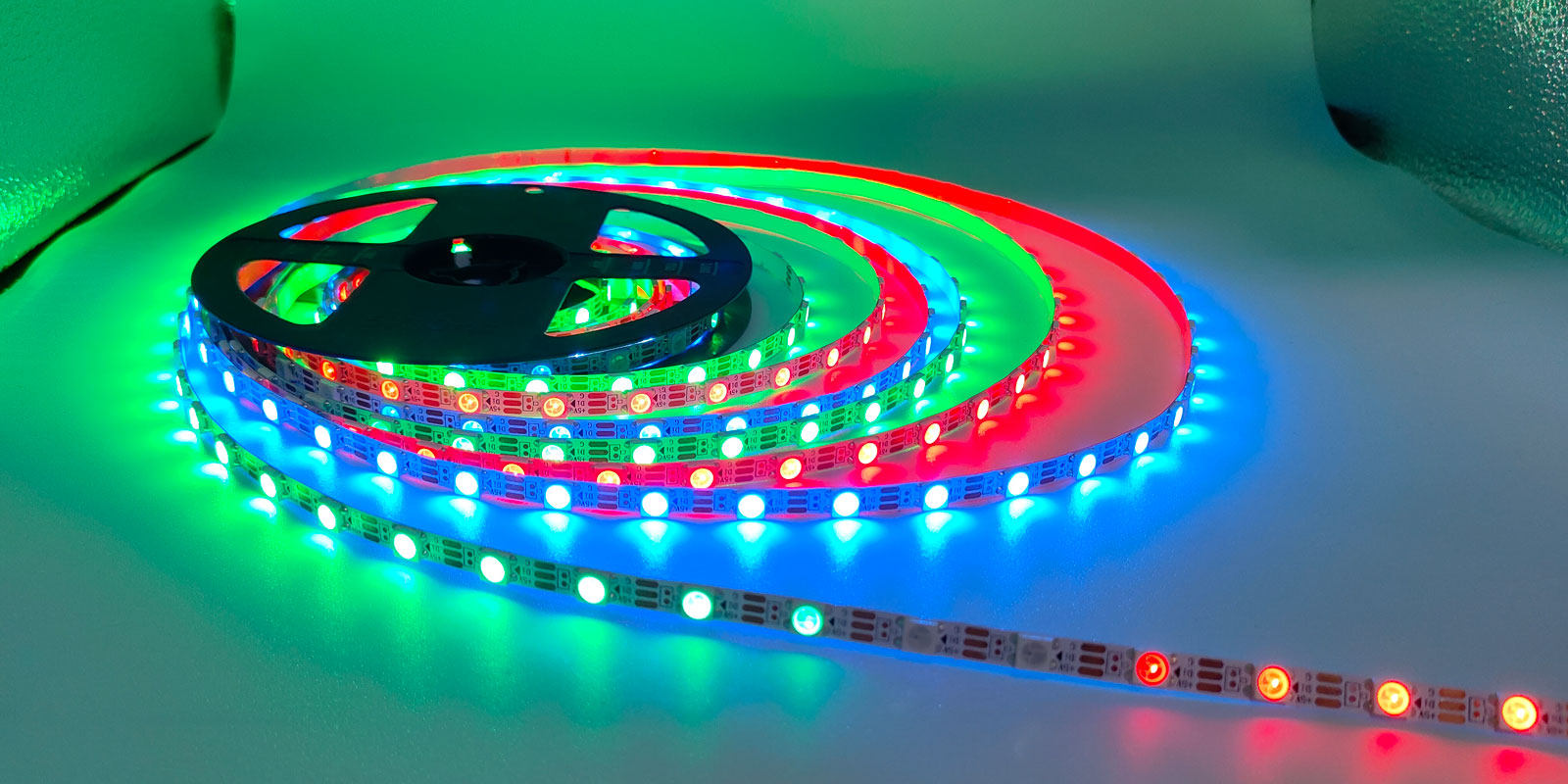

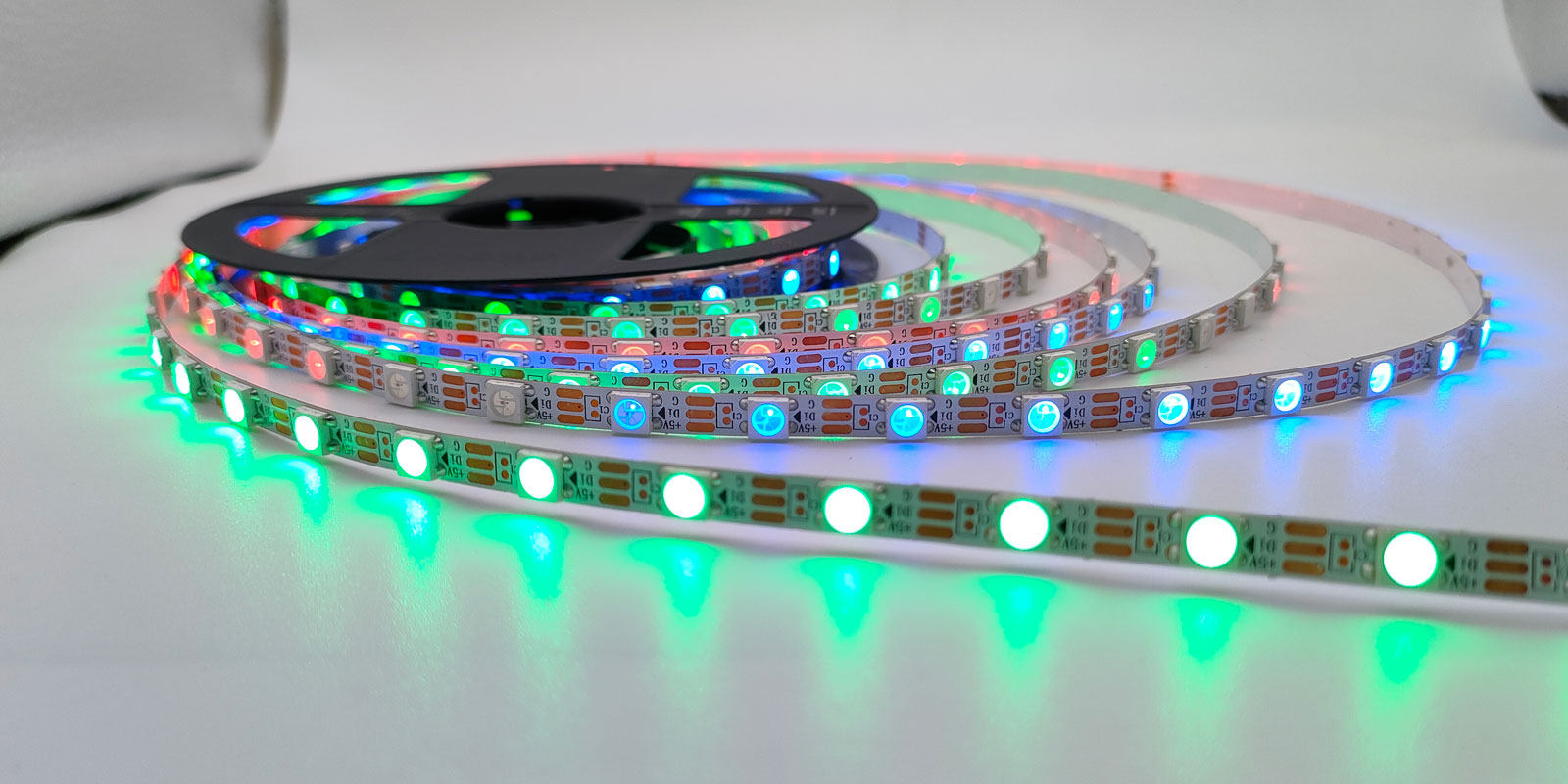

Programmable Digital RGB LED strips
Programmable Digital RGB LED strips

We can offer LED controllers and Power adatpers
We can offer LED controllers and Power adatpers
