DMX512 SMD2835 70LED 1220 Size Silicone NEON Light
Overview:
DMX512 SMD2835 70LED 1220 Size Silicone NEON Light, Size 12mm x 20mm, inside with 70led/m SMD2835 and addressable DMX512 control IC flex led strip, 24V, 14w/m, 12mm width white PCB, RA80, 3000K-6500K, nice apperance finished; It is available to build inside all led strip with 10-12mm PCB, such as SMD2835, SMD3528, addressable SK6812-3535-RGB, programmable WS2813-5050-RGB, and so on.
Data sheet: |
|
Product: | DMX512 SMD2835 70LED 1220 Size Silicone NEON Light |
Item No.: | WTP-1220-DMX2835X70-24V |
LED: | SMD2835-White, 70led/m |
View angle: | 170° |
Waterproof Grade: | IP67 |
Input voltage: | 24V |
Power: | 14w/m |
Size: | 5000x12x20(mm), 5m/roll |
Application:
> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

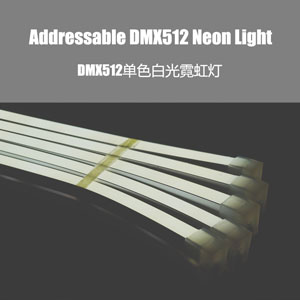

Photos
DMX512 Neon LED lighting show:
Diagram:
