Pretty Narrow 3mm Width Mini FPCB WS2812 2020 RGB 60 Pixels Programmable LED Strip

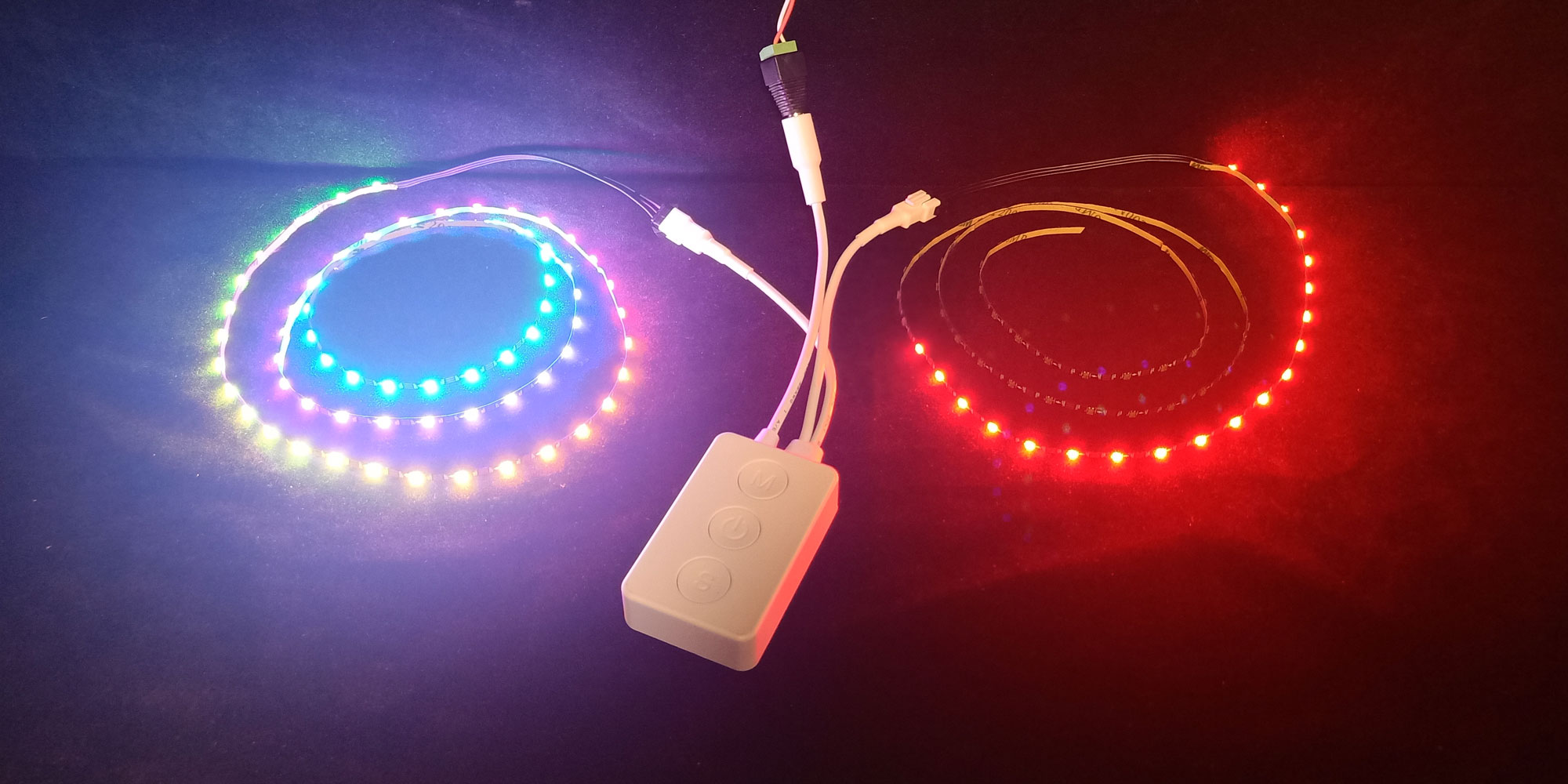

3mm Width 60 Pixels/m LED Strip video show:
WS2812-2020-RGB LED is a small size digital full-color built-in IC SMD, which has one SPI data and can be controlled by most SPI LED Controllers.
> 3mm width Super Narrow Flexible PCB
> 60led/m, 60pixels/m, individual addressable
> Each LED is cuttable

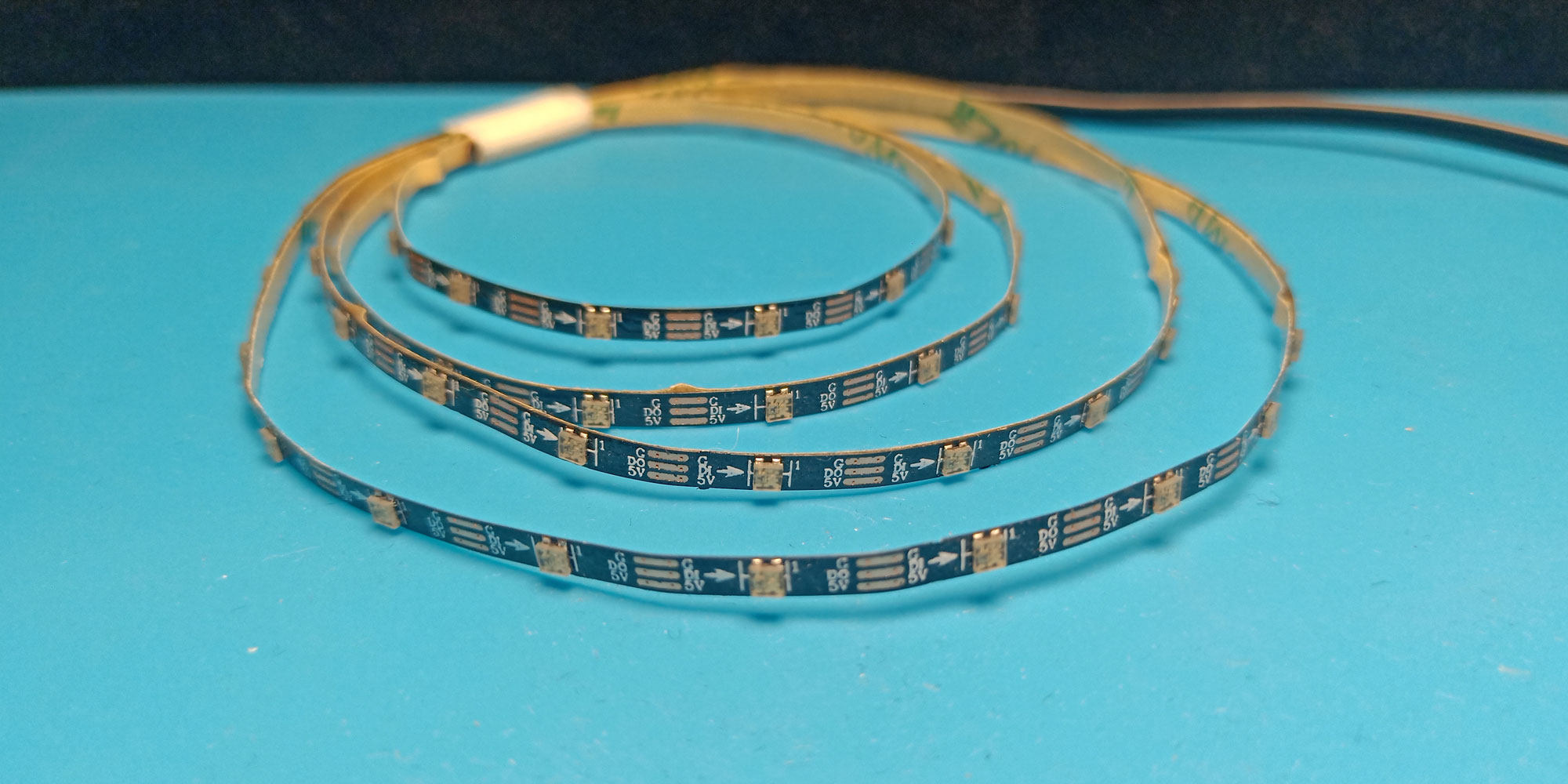

3mm Width Mini FPCB
Specification:
| Product Name: | NEW 3mm Width Flex PCB WS2812 2020 RGB 60 Pixels LED Strip |
| Item No.: | ADY-2812-2020-60-0305 |
| LED Source: | WS2812-SMD2020-RGB, 60led/m, 60pixels/m |
| PCB | 3mm white FPCB |
| IC Chip: | WS2812 |
| Pins: | 3 Wires = 5V+, DATA, GND |
| View angle: | 170° |
| Voltage & Power: | DC 5V, 12w/m |
| Size: | 2000x3x1.5(mm), 1m/roll or according to your requirements |
| Controller: | SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc… |
Packing: 1 meter/roll
Features:
- Firstly: Individual controlable / addressable / programmble
- Secondly: one LED one pixle, 60 pixels per meter
- Thirdly: Mini Size, 3mm Width Mini FPCB
Wiring Diagram:
Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip
- WS2812-2020-RGB Digital led strips, 60led/m, 60pixels/m, 3mm FPCB
- SK6812-2020-RGB Digital led strips, 200led/m, 200pixels/m, 3mm FPCB
- APA102-2020-RGB Digital led strips, 250led/m, 250pixels/m, 3mm FPCB
- APA102-2020-RGB Digital led strips, 200led/m, 200pixels/m, 5mm FPCB
Features of the SK6812-2020-RGB LEDs:
- TOP SMD internal integrated high-quality external control line serial cascade constant current IC;
- The control circuit and the RGB chip in SMD 2020 components, to form a complete control of pixel, color mixing uniformity, and consistency;
- Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
- Gray-level adjusting circuit (256 level grayscale adjustable);
- Red drive special treatment, color balance;
- Plastic forward strengthening technology, the transmission distance between two points over 10M;
- Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec
