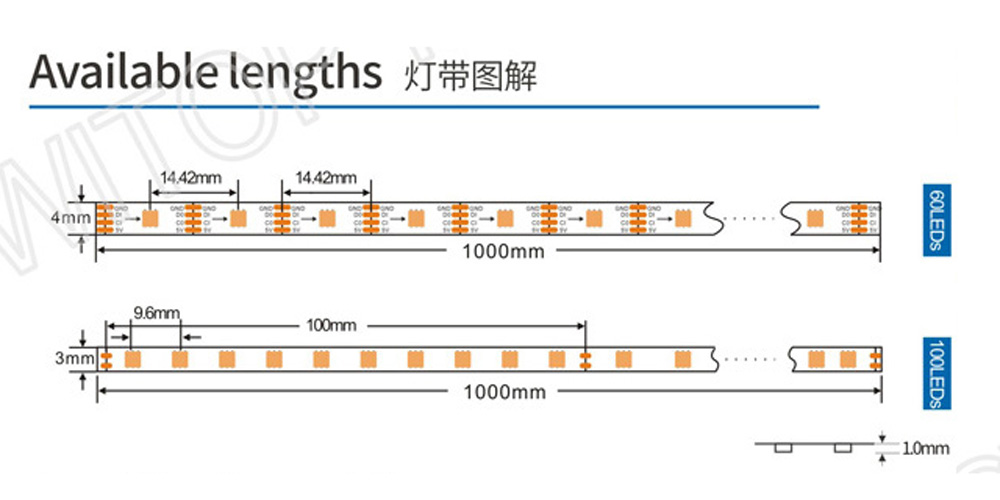

3mm width PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
3mm width PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
Product: 3mm width PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
LED: APA102-RGB-2020, 100LED/m, 100pixels/m
Power input: 5V, Max. 10w/m,
PCB: 3mm Flexible PCB
Outlet: 4 wires at both ends ( 5V+, GND, Clock and Data )
Packing: 0.5m/pcs
Controller: SP105e, K-1000C, etc…
APA102 2020:
These incredibly small surface-mount LEDs are an easy way to add a lot of very tiny (but bright!) colorful dots to your project. They’re mini versions of the ones in our digital LED strips and matrices with full chainable 2-wire control. They are just mind-bogglingly small. They are a mere 2mm x 2mm (way smaller than APA102-5050-RGB), which makes them pretty darn tiny so they might be a bit difficult to hand solder. SMT techniques with solder paste and hot air will work best here.
TECHNICAL DETAILS
- Red color: 620-625 nm
- Green color: 520-525 nm
- Blue color: 465-470 nm
- Red brightness @ ~20mA: 300-330 mcd
- Green brightness @ ~20mA: 420-460 mcd
- Blue brightness @ ~20mA: 160-180 mcd
Tiny 4mm width PCB led strips:
4mm PCB 60led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
