SMD5730 Flex LED Strips 120LED Color Temperature Adjustable
SMD5730, Color Temperature Adjustable, Tunable White LED Lights, Color Changing LED Lights
120LED Color Temperature Adjustable SMD5730 Flex LED Strips
Overview:
120LED Color Temperature Adjustable SMD5730 Flex LED Strips, High brightness LED, 24V, white PCB, 60 warm white and 60 cool white. 12led (24v dc) as a group and can be cuttable by different length which has the 3M adhensive tape at the back of the strips.

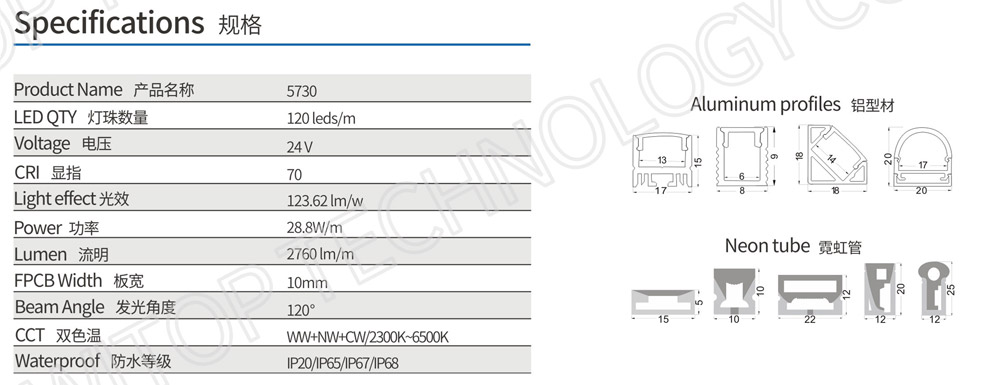

Data sheet:
| Product: | 120LED Color Temperature Adjustable SMD5730 Flex LED Strips |
| Item No.: | WTP-5730CCT-120-24V |
| LED: | SMD5730-White, 120led/m |
| View angle: | 120° |
| Waterproof Grade: | IP20,IP50,IP65,IP66/IP67/IP68 |
| Input voltage: | 24V |
| Power: | 28.8w/m |
| Size: | 5000 x 10 x 1.4(mm), 5m/roll |
Features
> LM-80 6000 Hours Tested 5730 SMD LED, size:5.7*3.0mm
> High Lumens Output & Low Brightness Decay
> Stable Performance & Great CCT Inity.
> Wid Color Temperature Range
> High CRI More Than 95 available
> Good raw materials
> Taiwan Epistar, Xianmen San’an chips
Application:
> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

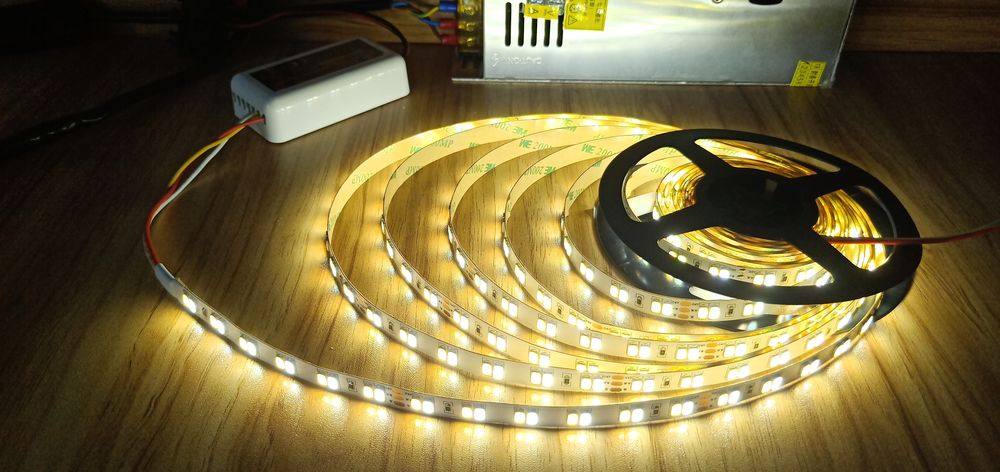

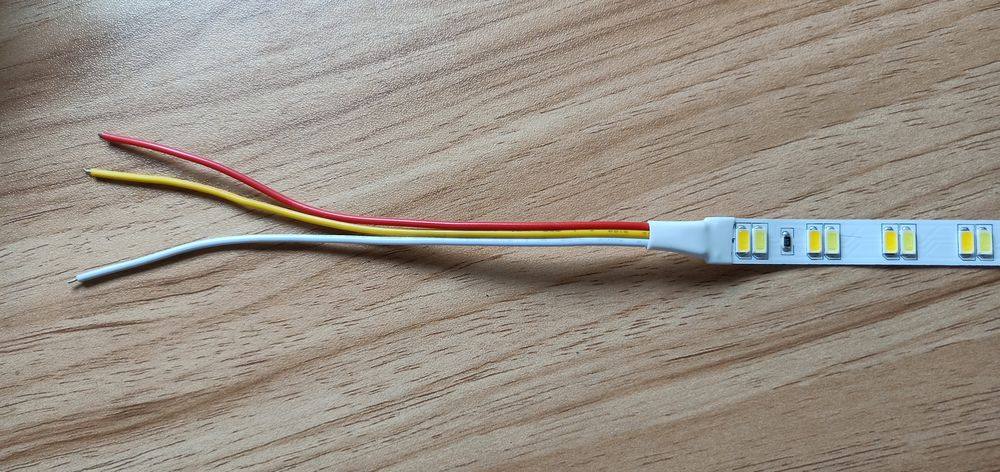

Photos
